Tinklo plokštė Delock 88500, PCI Express x4, 2x Gigabit LAN, PoE+

Trumpai apie prekę

Prekė: Tinklo plokštė Delock 88500, PCI Express x4, 2x Gigabit LAN, PoE+. Kategorija: Tinklo plokštės.

• Gamintojas: Delock
• Modelis: 88500

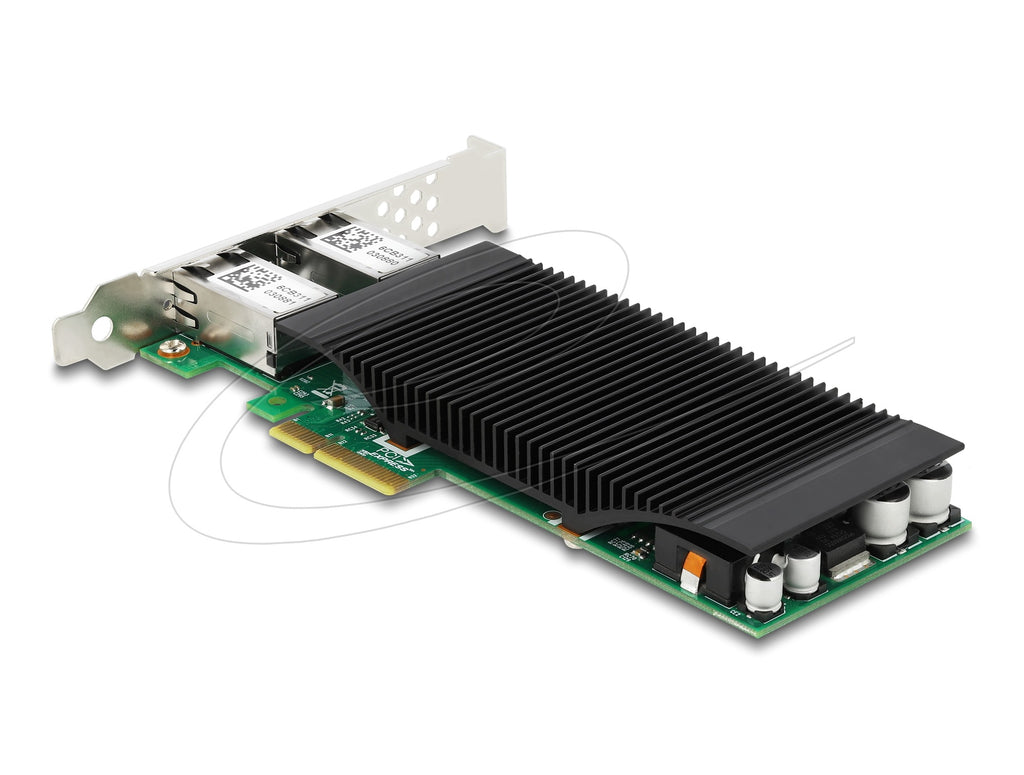

The Delock PCI Express card with two RJ45 ports supports Gigabit Ethernet and Power over Ethernet (PoE/PoE+), enabling simultaneous data transfer and power supply to devices. Phantom Power, VLAN, Energy Efficient Ethernet, Jumbo 9k and IEEE 1588 PTP provide efficient operation in video systems and industrial applications.

The Delock PCI Express card allows you to connect your computer to the network via two RJ45 ports with data transfer rates up to 1000 Mbps, supporting Ethernet, Fast Ethernet and Gigabit Ethernet standards and PoE functions according to IEEE 802.3af / 802.3at, which allows you to power devices such as IP cameras or PoE splitters. Screw-nut ports provide a stable connection, while Phantom power, VLAN, Energy Efficient Ethernet, Jumbo 9k frames, PXE and IEEE 1588 PTP synchronization guarantee efficient and reliable operation in Gigabit Ethernet video systems. LED indicators indicate the connection status and activity.

Specification:

• External connector: 2x Gigabit LAN RJ45 female with screw-nut
• Internal connector: 1 x PCI Express x4, V2.1
• Chipset: Intel i350
• Data transfer rate: Ethernet up to 10 Mbps (Half/Full Duplex), Fast Ethernet up to 100 Mbps (Half/Full Duplex), Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex), PCI Express x4 up to 16 Gbps
• IEEE 802.3 / 802.3u / 802.3ab support
• IEEE 1588 PTP support
• IEEE 802.1Q Virtual LAN (VLAN) support
• IEEE 802.3az Energy Efficient Ethernet support
• Jumbo 9k frame support
• Support for PXE
• IEEE 802.3af PoE and IEEE 802.3at PoE+ support
• Phantom power (Mode A, pairs 1/2 and 3/6)
• Output power: max. 60 W total
• LED indicators for connection and activity
