Tinklo plokštė DELL Broadcom 5720 DP 1Gb, 540-BBGY

Trumpai apie prekę

Prekė: Tinklo plokštė DELL Broadcom 5720 DP 1Gb, 540-BBGY. Kategorija: Tinklo plokštės.

• Gamintojas: Dell
• Modelis: 540-BBGY

DELL Broadcom 5720 DP 1Gb Network, 540-BBGY

DELL Broadcom 5720 DP 1Gb Network Interface Card,Full Height,Cus Kit

• Condition: New
• Manufacturer: Dell
• Interface: PCI-E
• Type of card: internal
• Port Type: Ethernet (RJ-45)
• Number of ports: 2
• EAN: 5397063816934
• Manufacturer code: 540-BBGY
• Country of origin: JP

Broadcom 5720 DP 1Gb Network Card - Set

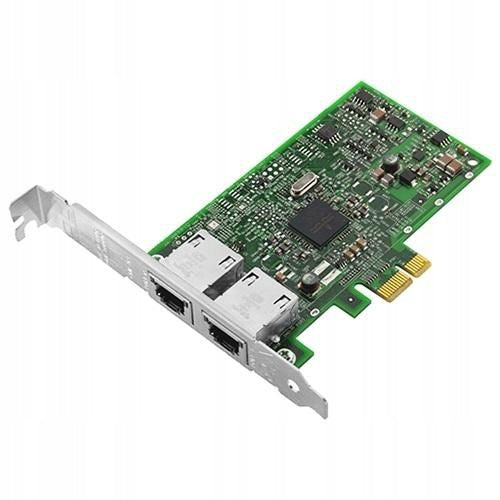

The PCIe BROADCOM™ 5720 DP 1Gb network card from Dell™ is responsible for connecting your desktop computer and server to the network. Its support for remote management allows you to maximize management resources. This product has been tested and approved on Dell systems. It is supported by Dell technical support when used with the Dell system.

- Features a compact design

- Ideal for high-performance networking applications

This product is compatible with the following systems:

PowerEdge R220

PowerEdge R320

PowerEdge R420

PowerEdge R430

PowerEdge R520

PowerEdge R530

PowerEdge R620

PowerEdge R630

PowerEdge R720

- Poweredge R720xd

PowerEdge R730

PowerEdge R730XD

PowerEdge R820

PowerEdge R920

- PowerEdge T20

PowerEdge T320

PowerEdge T420

PowerEdge T430

PowerEdge T620

PowerEdge T630

- PowerEdge VRTX

PowerVault DX6104 CSN

PowerVault DX6104 SCN

PowerVault DX6104 SN.

Specifications for 540-BBGY

Design

Compatible products: DELL PowerEdge R220, R320, R420, R430, R520, R530, R620, R30, R720, R720xd, R730, R730XD, R820, R920, T20, T320, T420, T430, T620, T630, VRTX, PowerVault DX6104 CSN, DX6104 SCN, DX6104 SN. Component for: Server. Internal: Yes. Product color: Green. Recommended use: Server.

Logistics data

Harmonized (HS) code: 85176990

Network

Cabling technology: 10/100/1000BaseT(X). Ethernet LAN: Yes. Ethernet LAN data rates: 10/100/1000 Mbit/s. LAN controller: Broadcom BCM5720. Maximum data transfer rate: 1000 Mbit/s. Network standards: IEEE 802.3.

Other features

Harmonized (HS) code: 85176990

Package dimensions (verified)

Verified depth: 16.9 cm. Verified gross weight: 0.17 kg. Verified height: 6.5 cm. Verified width: 24.2 cm.

Package data

Quantity: 1

Ports and interfaces

Connectivity technology: Wired and wireless. Ethernet LAN (RJ-45) ports: 2. Host interface: PCI Express. Interface: Ethernet.

Product dimensions

Net weight (Product, kg): 0.07 kg.

System requirements

Supported Linux operating systems: Yes. Supported Windows operating systems: Yes. Brand name: Dell.

Design

• Compatible products: DELL PowerEdge R220, R320, R420, R430, R520, R530, R620, R30, R720, R720xd, R730, R730XD, R820, R920, T20, T320, T420, T430, T620, T630, VRTX, PowerVault DX6104 CSN, DX6104 SCN, DX6104 SN
• Component for: Server
• Internal: Yes
• Product color: Green
• Recommended use: Server

Logistics data

• Harmonized (HS) code: 85176990

Network

• Cabling technology: 10/100/1000BaseT(X)
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10/100/1000 Mbit/s
• LAN controller: Broadcom BCM5720
• Maximum data transfer rate: 1000 Mbit/s
• Network standards: IEEE 802.3

Other features

• Harmonized (HS) code: 85176990

Package dimensions (verified)

• Verified depth: 16.9 cm
• Verified gross weight: 0.17 kg
• Verified height: 6.5 cm
• Verified width: 24.2 cm

Package data

• Quantity: 1

Ports and interfaces

• Connectivity technology: Wired and wireless
• Ethernet LAN (RJ-45) ports: 2
• Host interface: PCI Express
• Interface: Ethernet

Product dimensions

• Net weight (Product, kg): 0.07 kg

System requirements

• Supported Linux operating systems: Yes
• Supported Windows operating systems: Yes

• Brand name: Dell

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Dell
Parametry	Interface	PCI-E
Parametry	Card type	internal
Parametry	Port type	Ethernet (RJ-45)
Parametry	Number of ports	2
Parametry	Number of LAN (RJ-45) ports	2
Parametry	EAN (GTIN)	5902002113717
Parametry	Manufacturer code	540-BBGY
