Tinklo plokštė AXAGON PCEE-GRL, 1x Gigabit Ethernet RJ-45

Trumpai apie prekę

Prekė: Tinklo plokštė AXAGON PCEE-GRL, 1x Gigabit Ethernet RJ-45. Kategorija: Tinklo plokštės.

• Gamintojas: Axagon
• Modelis: PCEE-GRL

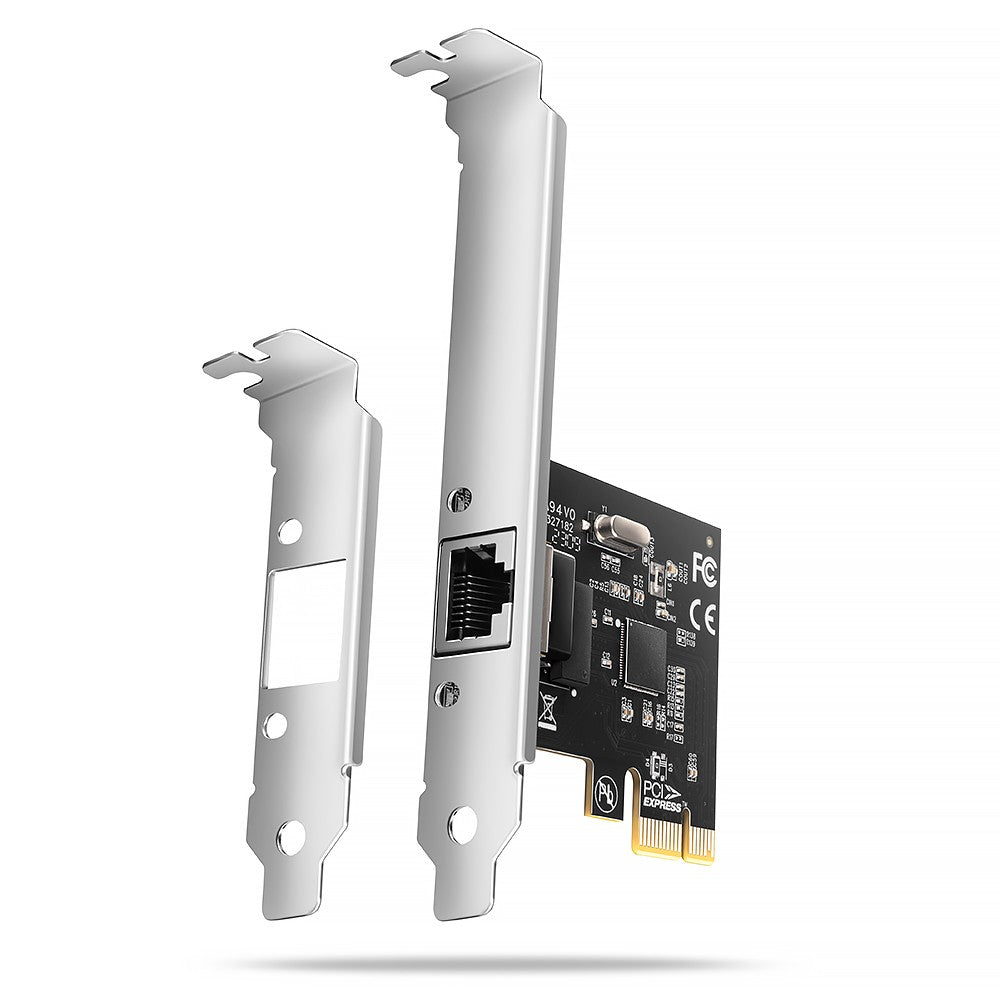

AXAGON PCEE-GRL PCIe 1x Gigabit Ethernet RJ-45 port network card, Realtek 8111L w. SP&LP chipset

PCI-Express network card AXAGON PCEE-GRL will extend your desktop computer with a fast Gigabit Ethernet connection. It enables transmission speed of 10/100/1000 Mbit/s.

The card is equipped with a new version of L from the proven series of Realtek RTL8111 chips, guaranteeing problem-free compatibility with most network operating systems.

A Gigabit network card connects your computer to the Internet or computer network, adds a missing RJ-45 network connector, another network card, or replaces the original, malfunctioning network connection.

In addition to the LAN adapter with standard size tracker, the package also includes a low profile tracker for mounting the adapter to a low profile enclosure.

Input:

• PCI-Express 2.0 interface, compatible with PCI-Express 1.0a / 1.1 / 2.1 / 3.0.
• Number of 1-Lane lines (x1), compatible with x1/x4/x8/x16 PCIe slots.
• 1-Lane PCI-Express 2.0 5 Gbps bus permeability.

Exit:

• Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection.
• Support 10/100/1000 Mbps Ethernet bandwidth.
• Support IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specification.

Further properties:

Total Plug and Play support.

10/100/1000 Mbit/s auto-discovery.

Support Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) to reduce CPU load combined.

Segmentation Task-offload support (Large Send V1 and Large Send V2).

Support Full Duplex transmission with IEEE 802.3x flow control.

Support IEEE 802.1P Layer 2 priority encoding.

Support IEEE 802.1Q VLAN tagging.

IEEE 802.3a-2010 (EEE) Energy Efficient Ethernet support - reduce power consumption at rest.

Auto MDI/MDIX support - crossover detection and autocorrection eliminates the need for crossover cables.

Support hardware ECC (Error Correction Code), CRC (Cyclic Redundancy Check) functions.

Support pair swap/polarity/skew correction.

Two LEDs for announcing activity and network connection.

Realtek RTL8111L chipset used.

Support Wake-on-LAN function in different modes:

Support sleep and remote excitation modes with Magic paket, Microsoft Wakeup Frame, Microsoft Wake Packet Detection, and Link Change wake-up.

Support ECMA-393 proxZzzy for sleeping hosts standard to order the network connection of dormant hosts using a server proxy.

Advanced Power Management Features:

The network adapter supports advanced power management of reducing loss in the idle state. It also supports advanced power savings when disconnected from an Ethernet cable.

Advanced Configuration Power management Interface (ACPI) support.

Power Management offload (ARP & NS) support.

PCI MSI (Message Signaled Interrupt) and MSI-X support.

Supported operating systems:

MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and newer, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 and newer (all 32- and 64-bit versions of Windows OS supported), MS DOS, 10.4.x 2.4.x 2.6.x 3.x 4.x 7.x 7.1.x , Novell server OS 5.x / 6.x , Novell client for DOS (ODI driver).

Product Information

Type

LAN

chipset

Realtek RTL8111L

Interface

PCIe

I/O ports

1 x 10/100/1000 Mbit/s

Standards

802.3az

802.3ab

802.11a

802.3u

Number of antennas

Not applicable

Antenna

Not applicable

Supported Operating Systems

Windows 11 Pro

SCO OpenServer

FreeBSD

Linux

Unix

Novell NetWare

Mac OS

Windows

Windows XP

Windows Server 2003

Windows Vista

Windows Server 2008

Windows 7

Windows Server 2012

Windows 8

Windows 8.1

Windows 10

Windows 10 Home

Windows 10 Pro

Windows Server 2016

Windows 11 Home

Windows 11

Windows Server 2019

Windows Server 2022

Accessories included

• PCI-Express Gigabit Ethernet card with standard herring
• Follow low profile
• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
• Packaged in a cardboard box.

Libra

33 g

Signs

Specifications
