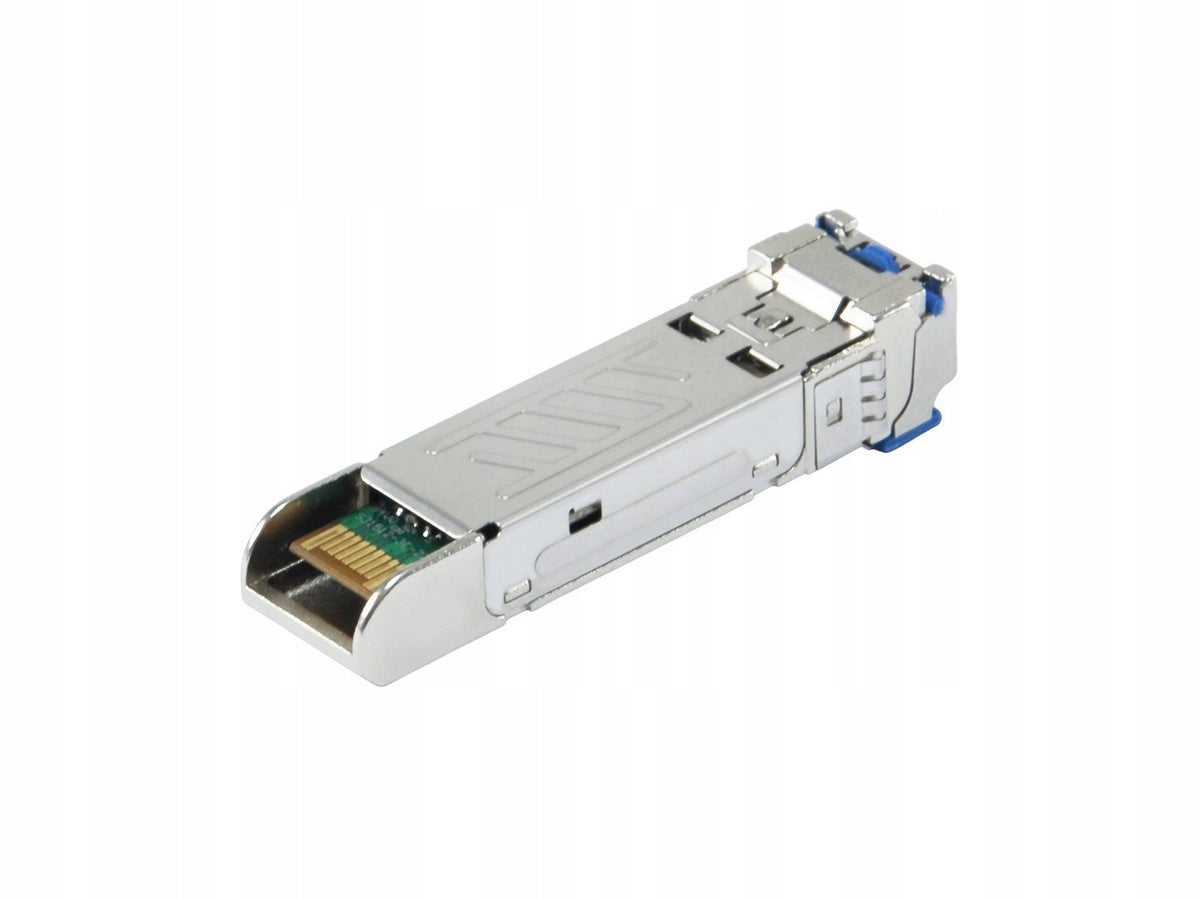

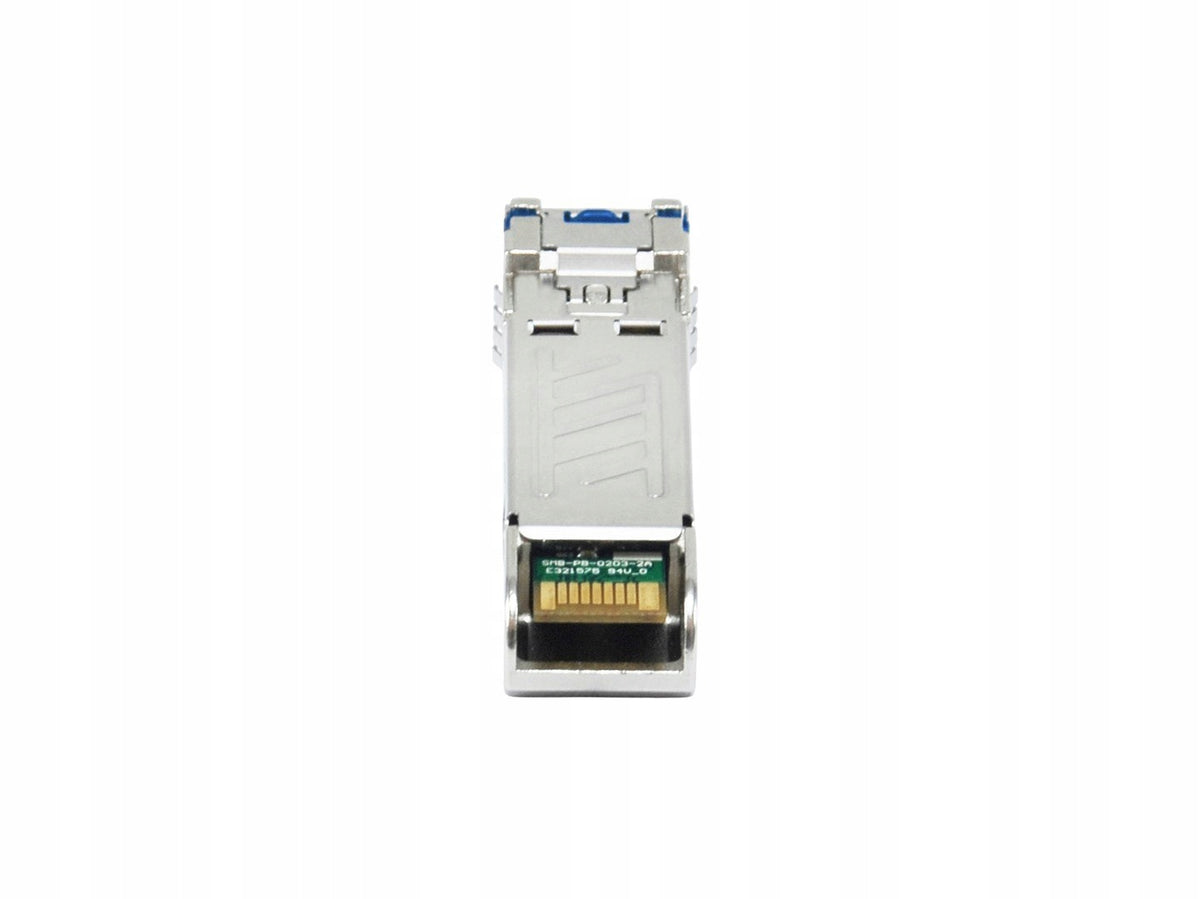

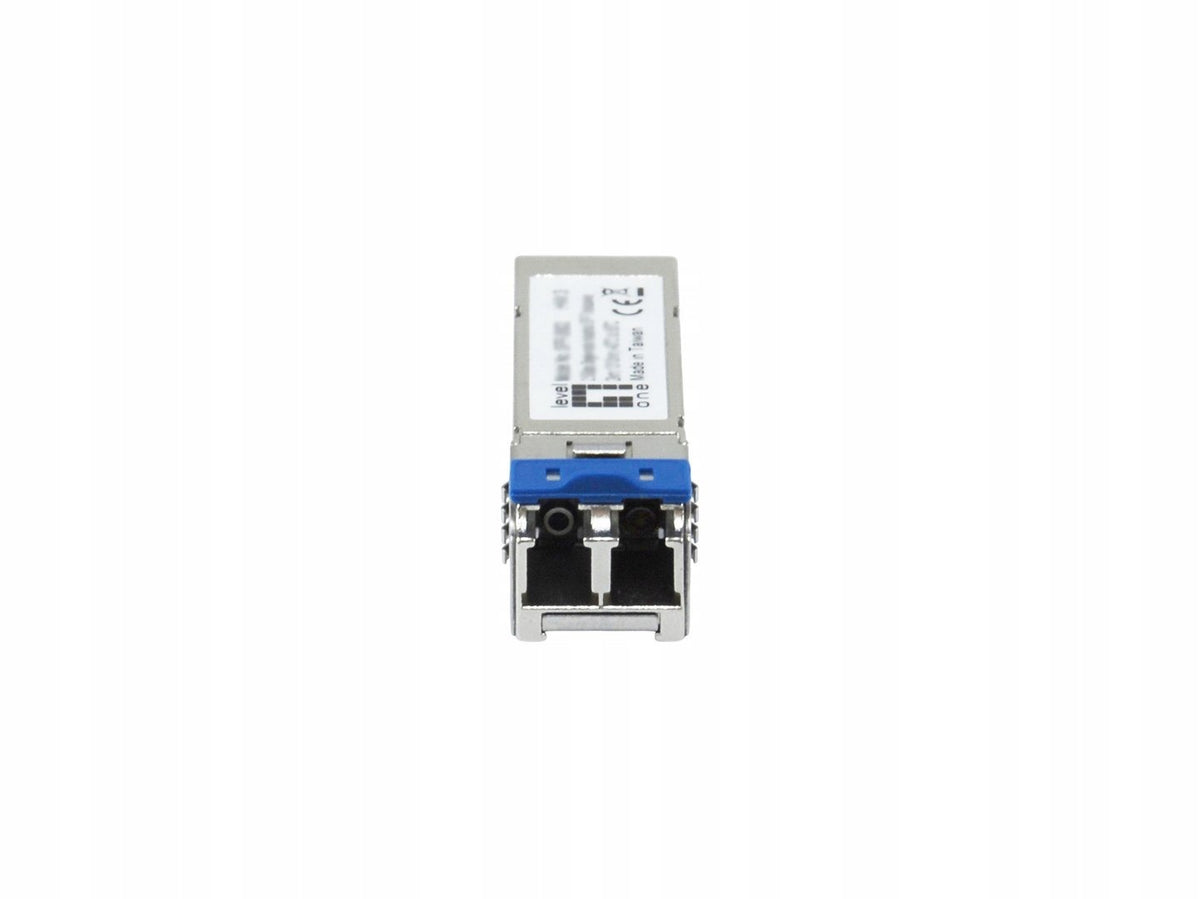

Tinklo modulis LevelOne SFP-2602, 2500 Mbit/s, 1310 nm

Trumpai apie prekę

Prekė: Tinklo modulis LevelOne SFP-2602, 2500 Mbit/s, 1310 nm. Kategorija: Wi-Fi tinklo adapteriai.

• Gamintojas: no brand
• Modelis: 520242

LevelOne SFP-2602 Network Relay Module 2500 Mbit/s 1310 nm

Specifications

Product color

Silver

Layout

SFP

Hot-swap

Yes

Plug & Play support

Yes

Power consumption

1 W

Product width

55.9 mm

Product height

13 mm

Product depth

13.4 mm

Product weight

15.5 g

Allowable relative humidity

5 - 85%

Relative humidity range

5 - 85%

Temperature range (storage)

-40 - 85 °C

Temperature range (operation)

-40 - 85 °C

Maximum transfer distance

2000 m

Maximum data transfer rate

2500 Mbit/s

Fiber optic connector

LC

Tx power (minimum)

-9 dBmW

Wavelength

1310 nm

Tx power (maximum)

-3 dBmW

SFP transceiver type

Fiber optic

Single-mode fiber (SMF) support

Yes

Supported fiber optic cable diameters

9/125 μm

Digital Diagnostics Monitoring (DDM)

Yes

Copper Ethernet cabling technology

2.5GBASE

Interface type

SFP

Package depth

67 mm

Package height

25 mm

Gross weight with packaging

41.66 g

Package width

110 mm

Quantity

1

Compliance certifications

Federal Communications Commission (FCC)

Compliance certifications

RoHS

Compliance certifications

TÜV mark

Compliance certifications

CB

Compliance certifications

CE

Compliance certifications

UL

Master (outer) case gross weight

5.5 kg

Master (outer) case length

343 mm

Gross pallet length

80 cm

Units per master (outer) case

100 pcs.

Master (outer) case height

250 mm

Gross pallet width

120 cm

Outer cases per pallet

34 pcs.

Outer case width

365 mm

Country of origin

Taiwan

Gross pallet height

164.4 cm

Customs product code (TARIC)

8517620000

Width

300mm

Length

92mm

Height

300mm

4015867240069
