Tinklo medijos keitiklis RS-232, 1x SFP, RJ-45

Trumpai apie prekę

Prekė: Tinklo medijos keitiklis RS-232, 1x SFP, RJ-45. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Roline
• Modelis: 21.13.1138

Product Catalog Number: 21.13.1138

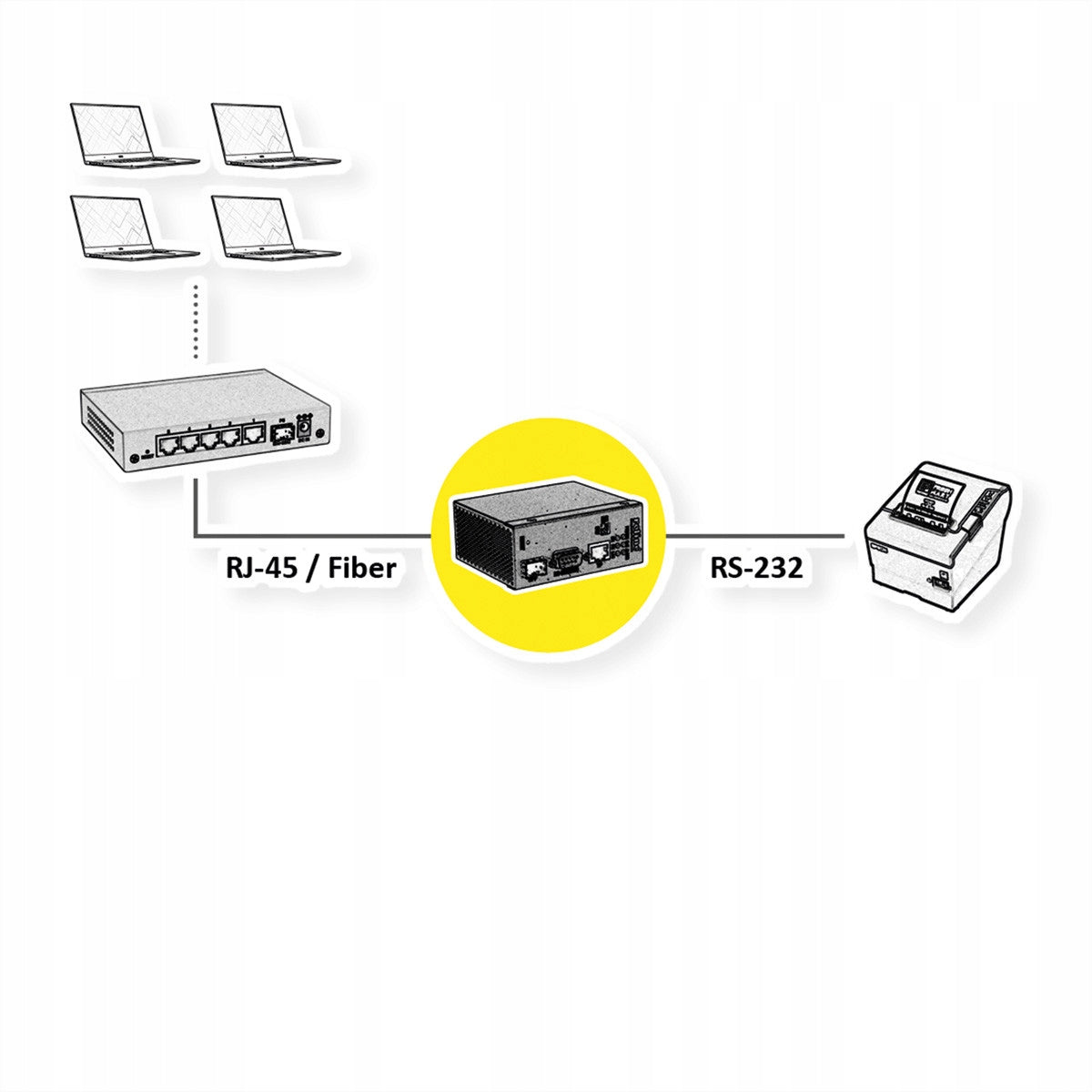

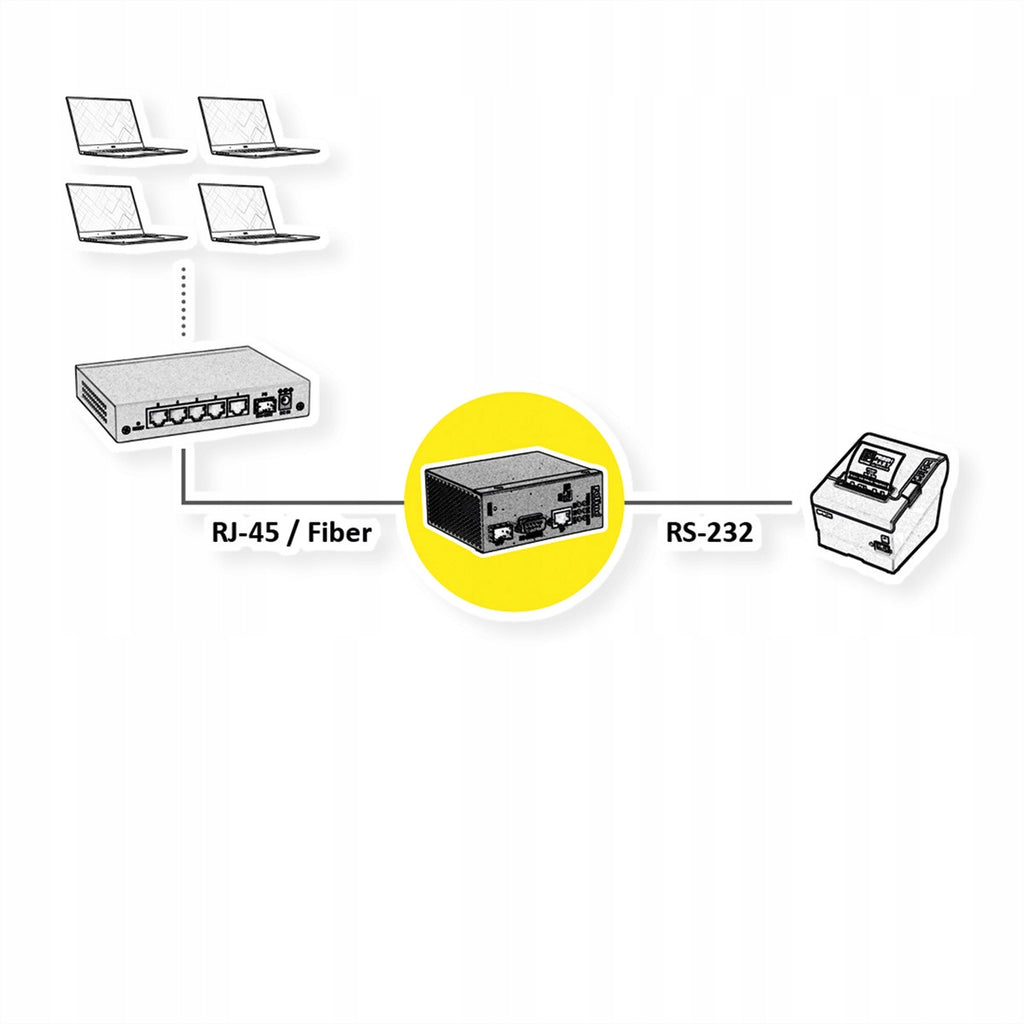

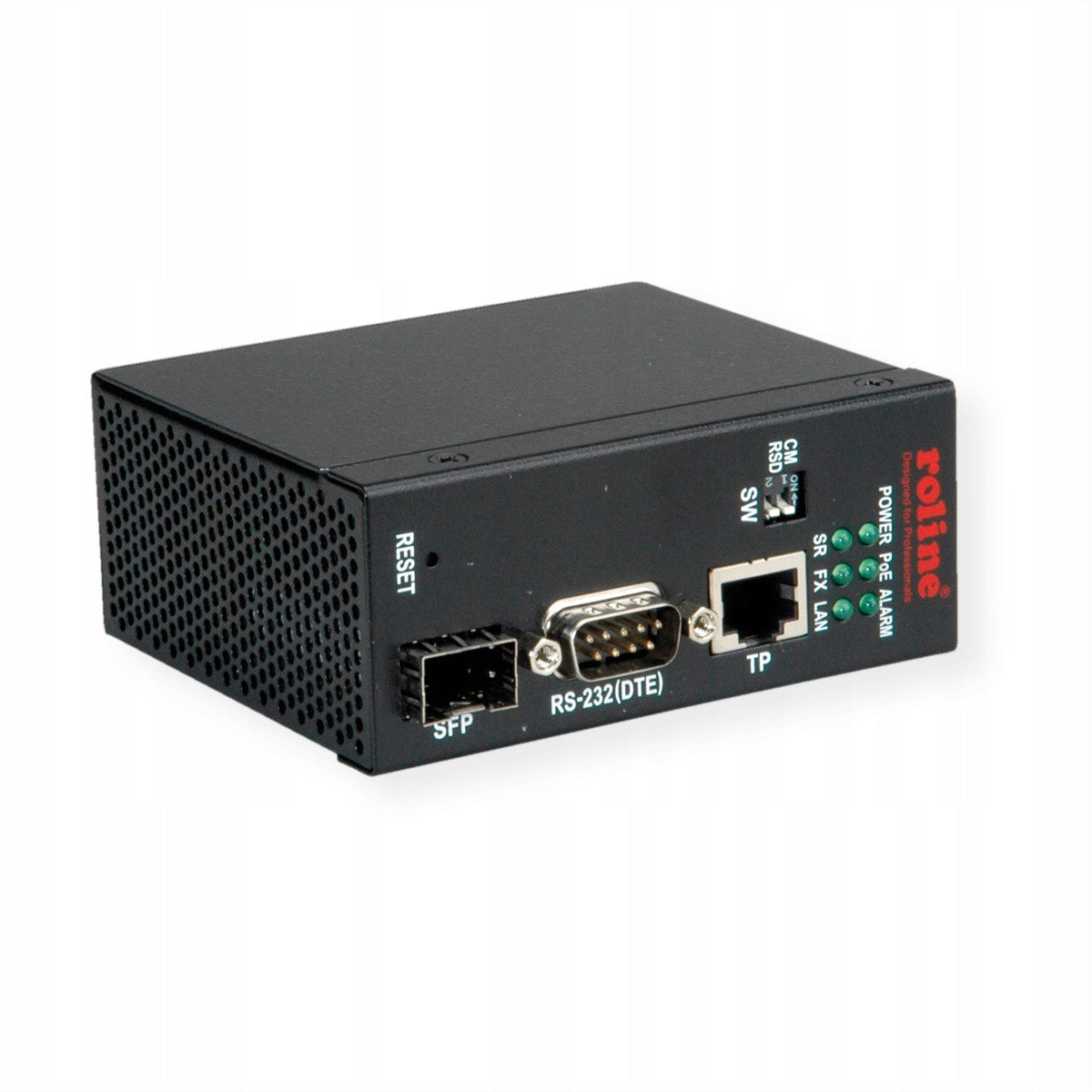

Network media converter from Ethernet (RJ-45) to serial (RS-232), for use in industrial environments - including an additional SFP port!

• The Ethernet interface provides a combo RJ-45 10/100Mbps copper port and a 100M fiber SFP slot
• RS-232 serial interface
• The serial port supports baud-rate up to 230400bps
• Galvanic isolation on the serial interface
• Data conversion bandwidth up to 230Kbps
• Wide range of direct power supply support, DC 8V-60V
• Power over Ethernet via RJ-45 interface (PoE-enabled)
• Alarm relay output for power failure, port link failure and no server connection
• Application support for remote COM port, serial server over TCP, reverse telnet, pairing and serial broadcast
• COM remote driver support for Windows PC
• Web and serial console configuration

• Event notification via SMTP and SNMP traps
• Designed to work in industrial environments with:

- Terminal Block and DC plug power connectors (6.3mm/2.0mm)

- Fanless, durable metal housing

• Power: Input: 8 - 60 VDC
• Power over Ethernet:

- IEEE 802.3af, input voltage range: +36 - +57VDC

• Working temperature: - 30 °C - +70 °C

• Producer: ROLINE
• Current catalog issue: C23-01.13
• Color: Black
• Product Type: Media Converter
• Product group: Network converters
• Weight: 336.8g
• Package height (single piece): 70 mm
• Package width (single piece): 130 mm
• Packaging depth (single piece): 150 mm
• Packaging weight (single piece): 0.403 kg
• Technical details: - 30 ºC - +70 ºC
• Fiber: Multimode
• Managed: No
• Number of ST fiber ports: 1

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Roline
Parametry	Number of ports	2
Parametry	EAN (GTIN)	7611990176366
Parametry	Manufacturer code	21.13.1138
