Tinklo lizdas RJ45 Cat.6A STP Keystone be įrankių, DIGITUS

Trumpai apie prekę

Prekė: Tinklo lizdas RJ45 Cat.6A STP Keystone be įrankių, DIGITUS. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Digitus
• Modelis: DN-93615

Catalog No: 48916

The supplier of the item is the renowned German company DIGITUS. The data sheet, hyperlink to the manufacturer’s website and detailed specification are available at: www.stratos.pl/strony/48916.htm

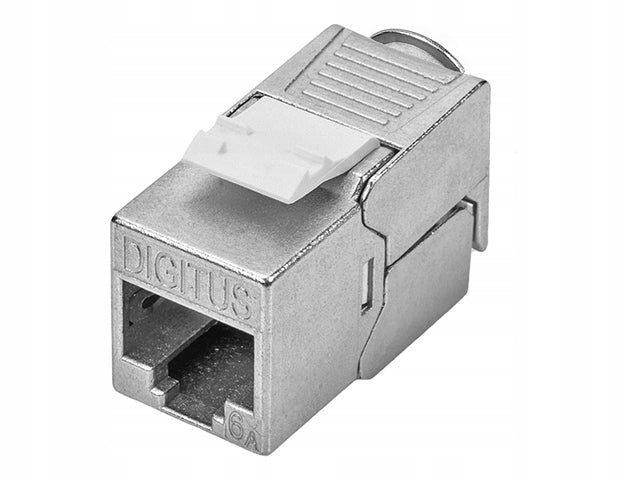

The offered shielded RJ45 cat.6A connector (class EA) meets EN 50173 and ISO/IEC 11801 standards, allows installation on shielded twisted pair S/FTP, U/FTP, SF/UTP with wire thickness (link or wire) in the range of AWG 22-26 and ensures compliance with both Gigabit Ethernet and 10 Gigabit Ethernet parameters (class EA, category 6A). Color coding carried out according to the EIA/TIA 568AiB standard, i.e. both currently used.

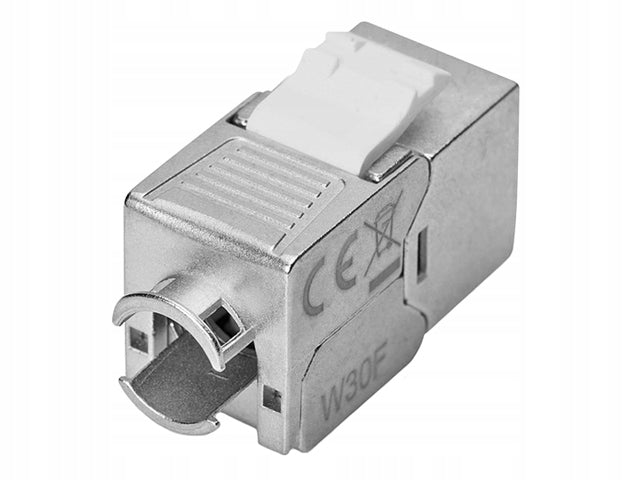

The special design means that connecting the cable can be carried out tool-free or tool-like. Knife contacts are made according to the LSA / KRONE standard, so it is possible to press the veins using the tool of this standard. Tool-free connection of the cable consists in the proper arrangement of twisted pair wires in the pressure cap (colored icons indicate the correct location of the wires for the standard 568A or 568B), trimming of protruding ends, placing the lid on the contact strips and folding movable "wings" - pressing the wires into the appropriate contacts will be realized after snapping the "wings".

The offered socket has a width of only 15mm, which allows for installation in closely located KEYSTONE structural holes (e.g. in 24-port panels for 19" installation cabinets. The dimensions of the socket are presented below:

The socket has hooks of the KEYSTONE standard so that it is possible to easily (through a latch) attach in KEYSTONE handles. Such handles are used in ICT equipment. There is a whole range of cans, frames, adapters and RACK panels with KEYSTONE handles designed to attach elements with KEYSTONE latches.

Examples of solutions for cans, frames, adapters and panels with KEYSTONE connectors are presented on the following examples:

The cans, frames, panels, adapters and KEYSTONE connector modules offered by us can be found in our offer by entering KEYSTONE in the 'search in user objects' field.

• Connector: RJ45 shielded socket (STP)
• Category: 6A, Class EA, 10GBase-T, ISO/IEC 11801 3rd Edition, EN 50173-1
• Bandwidth: 500MHz
• Contact Type: LSA/KRONE
• Contact color coding: EIA/TIA 568AiB
• Material: nickel-plated zinc metal housing, gilded contacts 0.5μm on nickel backing
• Socket dimensions (width/height/depth): 15/19/35mm
• Standard Keystone 19.35mm x 14.8mm
• Weight: approx. 18g

The product we offer is a new, unused, factory packed product. The offered item, like all items sold by us, is a product currently available in our warehouse, which allows immediate shipment.
