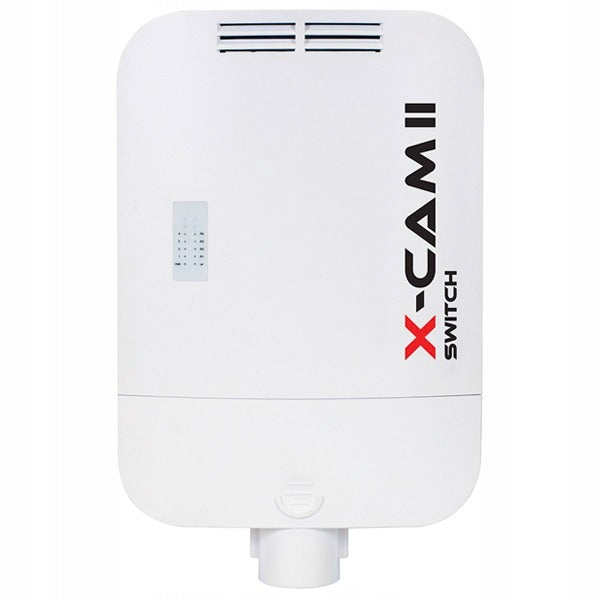

Tinklo komutatorius X-CAM II Switch8L, 8 PoE prievadai, 230V, CAMSAT

Trumpai apie prekę

Prekė: Tinklo komutatorius X-CAM II Switch8L, 8 PoE prievadai, 230V, CAMSAT. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: X-CAM II SWITCH8L 23

Product Code: X-CAM II SWITCH8L 23

Hermetic PoE switch for IP cameras - 8x PoE +

• PoE switch for CCTV cameras
• Resistant to external weather conditions - thanks to the IP65 tightness class and a wide range of operating temperatures (from -20 ° C to 55 ° C).
• Compatible with any IP camera - works in 802.3at and 802.3af standards, thanks to which it works even with large PTZ cameras with IR with a power of 30W / port.
• A large selection of power supply - available in many power versions: directly from the 100V-230V AC network, from 48V DC and even from 12V DC.
• Convenient and very quick installation - thanks to clamping directly to the mast or facade
• Modern shape and design - matching lanterns and modern constructions
• Powerful and efficient - 30W / Port

The X-CAM II Switch series are highly efficient, external switches designed to power IP cameras and network devices operating in the PoE / PoE + standard. X-CAM II is available with a built-in power supply, so it can be powered directly from the 230V mains. Thanks to this, you save on the purchase of installation boxes, accessories and power supplies.

No more ugly crates hanging near CCTV cameras. X-CAM II is characterized by a modern design and fits into any lighting lantern or facade. A solid, weather-resistant IP65 housing and a wide range of operating temperatures allow them to be used in all weather conditions.

X-CAM II switches are fully compatible with any IP cameras powered by PoE. They support 802.3af / at standards, which allows loads with a power of up to 30W / port. All X-CAM II models have automatic overload protection ensuring safe and long-term operation in all conditions.

Technical data:

• PoE + Ports: 8
• UpLink Port: 1x LAN
• PoE standard: 802.3u, 802.3at, 802.3af
• PoE port load: max. 30W / port according to the IEEE802.3af / at / u standard
• Switch current efficiency: 120W
• Maximum length of PoE cables: up to 100m
• LAN: 10 / 100Mbps
• Mounting: Quick mounting with a clamp (clamps included)
• Designation: IP65 - outdoor
• Port protections: Overvoltage up to 8kV, overcurrent up to 0.5A
• Power supply: built-in 230V power supply
• Working temperature: -20 ° C to 55 ° C
• Dimensions: 335 mm x 215 mm x 76 mm
• Weight 1.2 kg

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	no brand
Parametry	Number of ports	8
Parametry	EAN (GTIN)	5902610350306
Parametry	Manufacturer code	X-CAM II SWITCH8L 23
