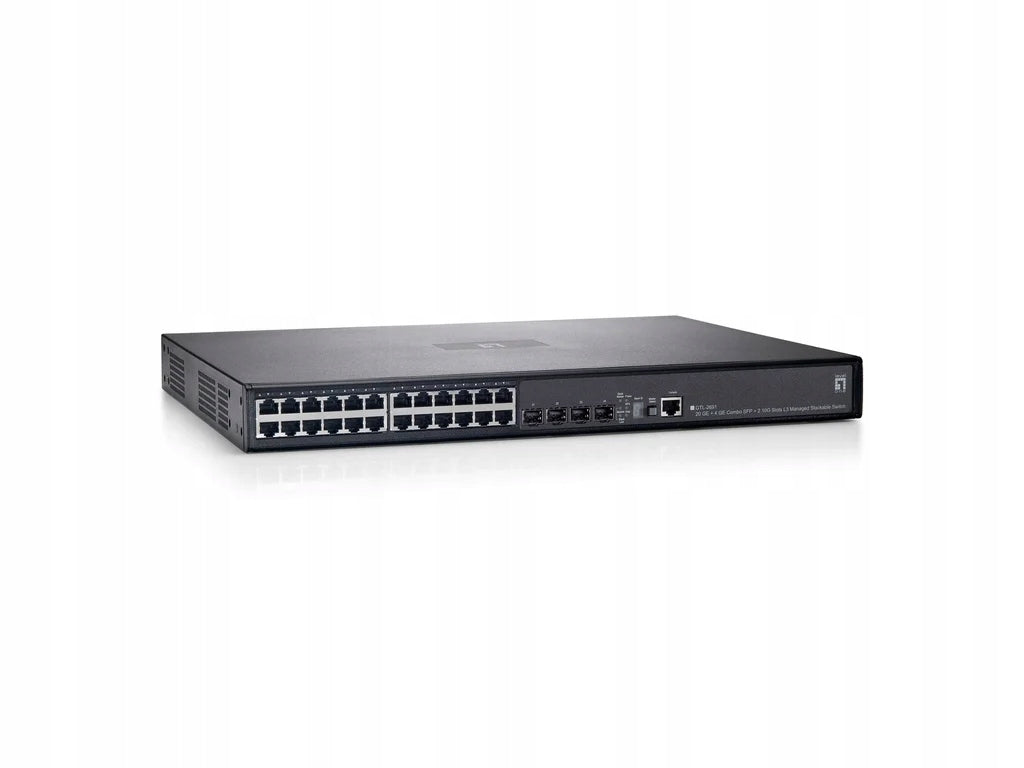

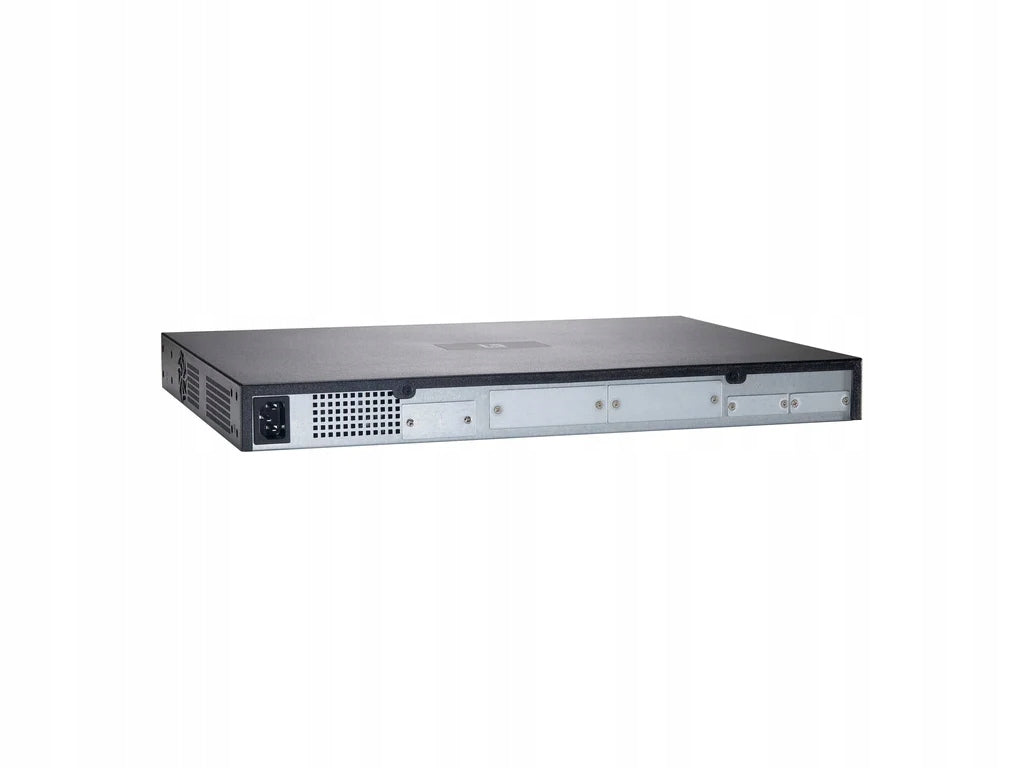

Tinklo komutatorius LevelOne GTL-2691, valdomas, L3, Gigabit Ethernet

Trumpai apie prekę

Prekė: Tinklo komutatorius LevelOne GTL-2691, valdomas, L3, Gigabit Ethernet. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: LevelOne
• Modelis: GTL-2691

LevelOne GTL-2691. Switch Type: Managed, Switch Layer: L3. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 24, Console Port: RJ-45. Full duplex. Address table size: 16000 inputs, Routing/switching throughput: 128 Gbit/s. Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1w, IEEE ... Possibilities of mounting in the frame

✏️ Key Technical Specifications:

• Management Features - Switch Type: Managed
• Management Features - Switch Layer: L3
• Management Features - Quality of Service (QoS) Support: Yes
• Management Features - Web-based Management: Yes
• Management Features - Traffic Classification: Yes
• Management Features - ARP Inspection: Yes
• Management Features - Device Software Updates: Yes
• Data Transfer - Routing/Switching Capacity: 128 Gbit/s
• Data Transfer - Forwarding Rate: 95.2 Mpps
• Data Transfer - Address Table Size: 16000 entries
• Data Transfer - Store-and-Forward: Yes
• Data Transfer - Number of Queues: 8
• Data Transfer - Number of Static Routes: 512
• Data Transfer - Jumbo Frames Support: Yes
• Data Transfer - Jumbo Frames Extension: 9000
• Data Transfer - Packet Forwarding Rate (1 Gbps): 1488000 pps
• Data Transfer - Packet Forwarding Rate (10 Mbps): 14880 pps
• Data Transfer - Packet Forwarding Rate (100 Mbps): 148000 pps
• Multicast Features - Multicast Support: Yes
• Multicast Features - MAC Address Table (Multicast): 1024 entries
• Power over Ethernet (PoE) - PoE Support: No
• Performance - Management Protocols: Telnet, SNMP, SNTP, RMON
• Performance - Buffer Size: 2048 KB
• Network - Communication Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
• Network - 10G Support: Yes
• Network - Port Mirroring: Yes
• Network - Full Duplex: Yes
• Network - Flow Control Support: Yes
• Network - Rate Limiting: Yes
• Network - Spanning Tree Protocol: Yes
• Network - VLAN Support: Yes
• Network - Link Aggregation: Yes
• Network - MAC Address Auto-Learning: Yes
• Network - MAC Address Auto-Aging: Yes
• Network - Virtual LAN Features: Private VLAN, Port-based VLAN
• Ports and Interfaces - Basic Switching RJ-45 Ethernet Ports Quantity: 24
• Ports and Interfaces - Basic Switching Ethernet RJ-45 Port Type: Gigabit Ethernet (10/100/1000)
• Ports and Interfaces - SFP Combo Port Quantity: 4
• Ports and Interfaces - SFP Module Slot Quantity: 4
• Ports and Interfaces - Console Port: RJ-45
• Ports and Interfaces - SFP/SFP+ Port Quantity: 2
• Mouse - Certifications: FCC Part 15 Class A, CE, RoHS
• Package Data - Package Width: 530 mm
• Package Data - Package Depth: 420 mm
• Package Data - Package Height: 135 mm
• Package Data - Package Type: Box
• Design - Rack Mounting Capability: Yes
• Design - Product Color: Black
• Design - Stackable Product: Yes
• Protection - System Event Log: Yes
• Protection - Access Control List (ACL): Yes
• Protection - IGMP Snooping: Yes
• Design - LED Indicators: Yes
• Protection - SSH/SSL Support: Yes
• Protection - Loop Prevention: Yes
• Protection - BPDU Filter / Protection: Yes
• Protection - Auto Edge Port: Yes
• Protection - Authentication: MAC-based Authentication
• Operating Conditions - Storage Temperature Range: -40 - 70 °C
• Operating Conditions - Operating Temperature Range: 0 - 50 °C
• Operating Conditions - Relative Humidity Range: 5 - 95%
• Power - Power Consumption: 49.6 W
• Power - AC Input Voltage: 100 - 240 V
• Power - Maximum Power Consumption: 63.96 W
• Power - AC Input Frequency: 47/63 Hz
• Logistics Data - Harmonized System (HS) Code: 85176990
• Weight and Dimensions - Product Width: 440 mm
• Weight and Dimensions - Product Depth: 415 mm
• Weight and Dimensions - Product Height: 44 mm
• Weight and Dimensions - Product Weight: 5.7 kg
• Other Features - Supported Network Protocols: IPv6, IPv4, BOOTP
• Classification - Manufacturer Code: GTL-2691
• Classification - EAN: 4015867185100
• Classification - Product ID: 18672286
