Tinklo komutatorius IMOU SF105C, 5 RJ45 LAN prievadai, 100 Mb/s, Plug & Play

Trumpai apie prekę

Prekė: Tinklo komutatorius IMOU SF105C, 5 RJ45 LAN prievadai, 100 Mb/s, Plug & Play. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Imou
• Modelis: SF105C

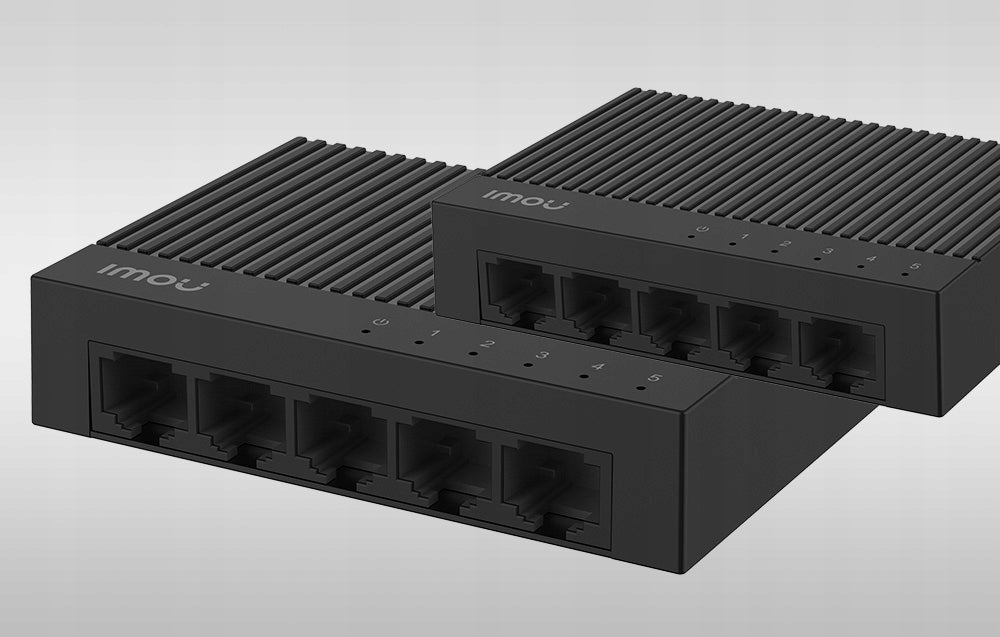

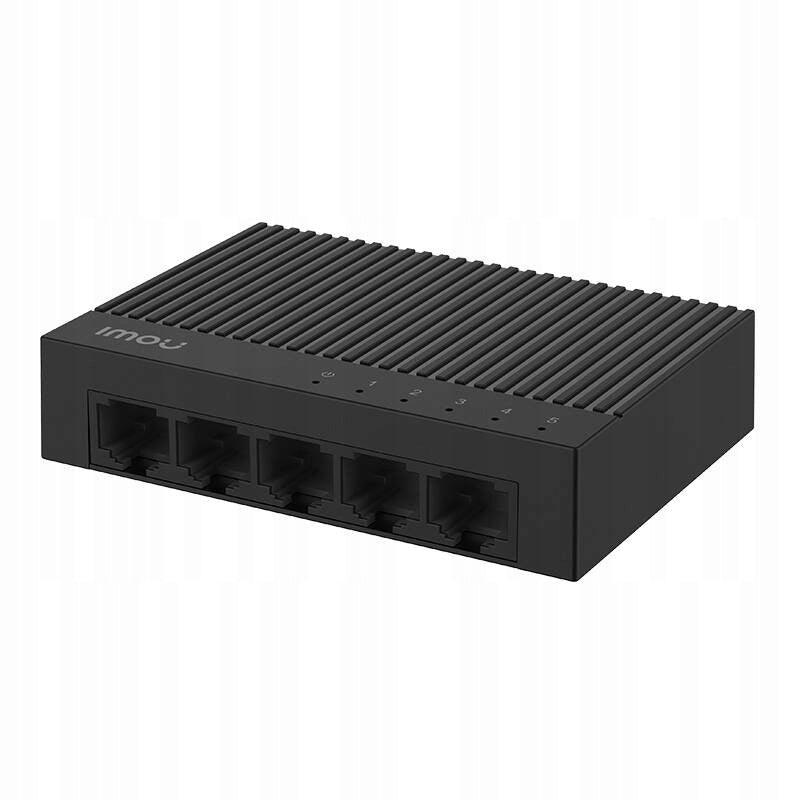

The IMOU SF105C LAN switch provides fast and stable network connectivity thanks to 5 RJ45 ports . It offers automatic speed negotiations in the range of 10/100 Mbps, and the Auto MDI/MDIX function eliminates the need for patch cables. In addition, the 802.3X Flow Control protocol guarantees effective control of data flow. Installation of the device is smooth and hassle-free, and the Plug & Play function ensures convenience of use.

• Manufacturer: IMOU
• Model: SF105C
• Network port: 5 ports 10/100 Mbps
• PoE support: No
• Working temperature: from 0℃ to 40℃
• Working humidity: from 10 to 90%
• Energy consumption: 0.6W
• LED indicator: 1x power supply, 5x Link/Ack
• Category: Unmanaged switch
• Switching bandwidth: 1 Gbps
• Package forwarding speed: 0.1488Mpps*5
• Package buffer memory: 768Kb
• Jumbo frame: 2K
• MAC table size: 2K
• Overvoltage protection: Common mode: 2 KV; Differential mode: 1 KV
• Power supply: DC5V1A
• Housing material: Plastic
• Installation method: Desk/wall mount
• Dimensions: 87,6 x 62 x 21,1 mm
• Weight: 55 g

✔ Advanced 802.3X Flow Control Protocol: Ensures stability and efficiency of data flow, important for heavy network loads.

✔ Durable construction: Housing made of high quality plastic, lightweight and durable, with dimensions for convenient installation.

✔ High network performance: The total bandwidth of 1 Gbps, packet transfer rate of 0.1488 Mpps per port and buffer memory of 768 Kb guarantee efficient network traffic handling. The device also supports Jumbo frames up to 2K and has a MAC array with 2K entries. It also provides surge protection up to 2 KV in common mode and 1 KV in differential mode.

The SF105C provides high throughput and flexibility of connections. It is equipped with 5 RJ45 ports, making it perfect for managing intensive data traffic and guaranteeing the performance that modern network applications require. All ports support Auto-Negotiation, allowing you to automatically adjust the data transfer speed in the range from 10 to 100 Mbps. As a result, the switch is widely compatible with a variety of hardware and allows you to optimize connection speeds according to your current needs, providing you with smooth and efficient work on the network, whether you are transferring large files, streaming high-definition video or using advanced applications.

Support for the Auto MDI/MDIX function makes the IMOU automatically switch recognize the type of connected cable, eliminating the need for special patch cables and simplifying the network configuration process. Another advantage is Plug & Play, which is a function that ensures immediate operation of the device – you do not need to install additional drivers.

Specifications
