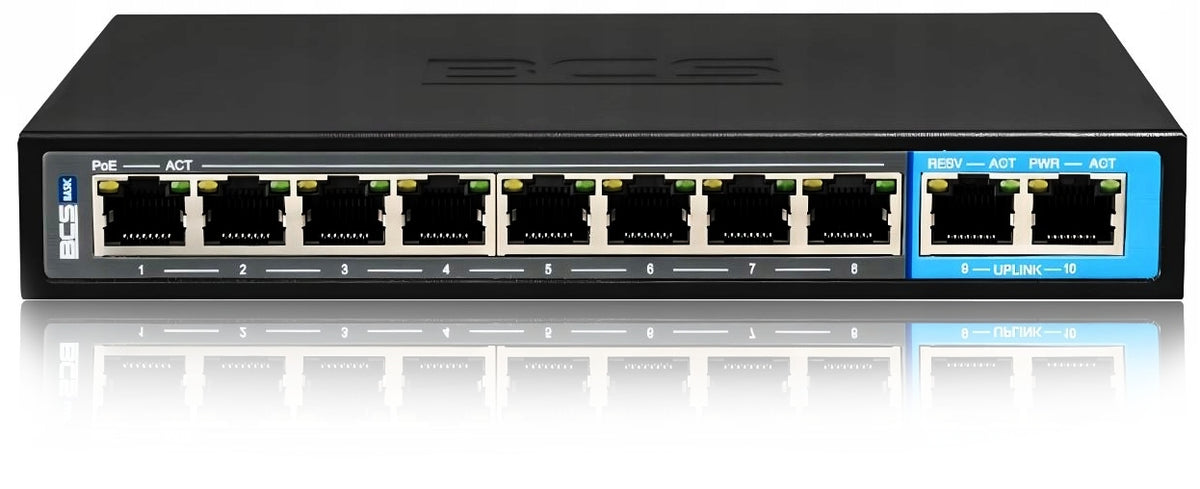

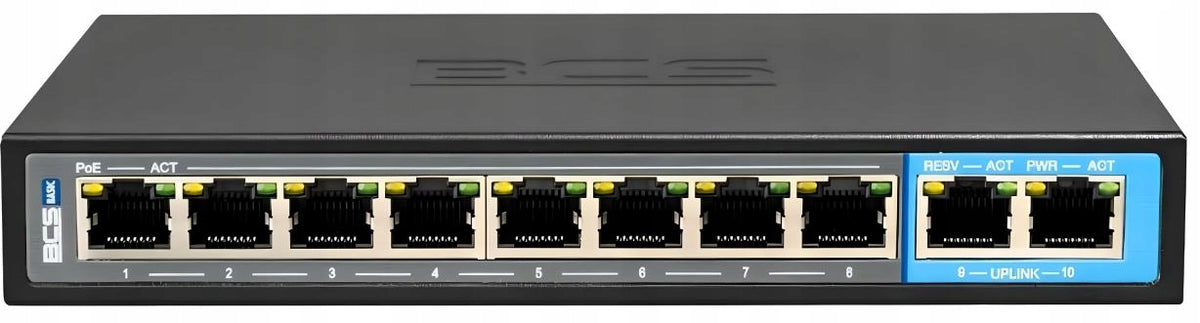

Tinklo komutatorius BCS B-SP0802, 8 PoE prievadai, 2 uplink kameroms

Trumpai apie prekę

Prekė: Tinklo komutatorius BCS B-SP0802, 8 PoE prievadai, 2 uplink kameroms. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: BCS
• Modelis: 5902887060250

Product Features

• 10 port PoE switch 10/100Mbps
• 4 operating modes: AI VLAN, AI EXTEND, AI PoE, AI QoS:Standard IEEE802.3 af/at
• Maximum power up to 36W for a single PoE port
• 8 PoE ports
• 2 RJ45 uplink ports
• MDI/MDIX function
• Transmission up to 250m
• Function of VLAN
• Metal housing
• 52V DC 1.85A power supply included

Funckje switcha

AI VLAN - function isolates ports 1-8. Devices connected to these ports cannot see each other. Ports 9 and 10 (uplink) can communicate with ports 1-8.

AI Extend - the function limits the speed of ports 1-8 to 10 Mbps, thanks to which it is possible to power and transmit data over a distance of up to 250 meters.

AI PoE - the function enables monitoring of pairs of wires supplying power to the device. If an anomaly is detected, the switch turns off the port power and after a while turns on again.

AI QoS - Enabling the function gives high upload priority to packets containing a video header. The switch sends them first. Thanks to this, the transmitted stream remains fluid.

Technical specification:

• Model: BCS -B-SP0802
• Ports: 10 × RJ45 10/100Mbps (8 × PoE)
• Uplink ports: (MDI/MDIX)2 × RJ45
• Transfer: 10/100Mbps half duplex, full duplex, auto-negotiation
• Standard: IEEE802.3 af/at
• Packet forwarding: 1.48Mpps
• Bandwidth: 2Gbps
• Maximum power: 36W for single PoE port (96W total power)
• AI VLAN mode: Ports 1, 2, 3, 4, 5, 6, 7, 8 are isolated from ports 9, 10
• AI EXTEND mode: Ports 1, 2, 3, 4, 5, 6, 7, 8 support transmission up to 250m (cat5e, cat6)
• AI QOS: Quality of Service – Prioritizing Video Packets
• AI PoE Mode: Monitor ports that power PoE devices and automatically restart by cutting off power when an unresponsive device is detected
• LED status: PWR(constant yellow): connected switch powerLINK/ACT(green): connected device
• PoE: pin1.2 (+); 3.6 (-)
• Power supply: Power adapter input: 100~240V AC 50/60Hz output: 52V DC 1.85A
• Dimensions: 184×94×27mm
• Weight: 0.8kg
• Operating conditions: 0°~40°C, 10%~90%RH
