Tinklo kabelis ASSMANN Electronic DN-650107, Fast Ethernet 10/100, juodas

Trumpai apie prekę

Prekė: Tinklo kabelis ASSMANN Electronic DN-650107, Fast Ethernet 10/100, juodas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Digitus
• Modelis: DN-650107

DN-650107

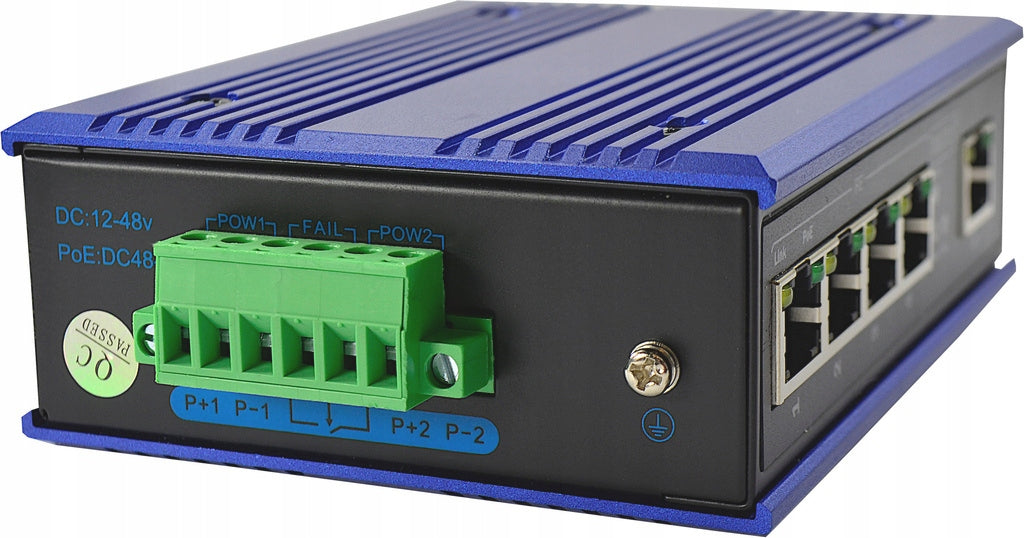

Robust and durable industrial solutions with standard DIN rail mounting

• industrial high-speed 5-port Ethernet switch
• 4 x RJ45 10/100Base-TX Fast Ethernet port
• 1 x 10/100Base-TX Ethernet master link port
• for mounting on a DIN rail

The high-speed industrial Ethernet switch from DIGITUS® is designed to operate in harsh environments, e.g. high humidity level, large temperature fluctuations and vibrations.

With the ability to operate at operating temperatures from -40°C to 85°C, the high-speed industrial Ethernet switch can be used even in the most adverse conditions. Access to the device will be constantly provided in very sensitive places, e.g. during transport, production process, monitoring or road traffic.

Thanks to the simple plug and play system, the Ethernet switch can be quickly adapted to the right conditions. With its high-speed connectivity, the Ethernet switch provides a flexible and cost-effective solution for industrial applications.

• 4 x port powered by 10/100Base-TX Ethernet cable
• 1 x 10/100Base-TX Ethernet parent link port
• Supports IEEE802.3af/at standard
• automatic cable detection – Auto MDI / MDI-X function
• Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE802.3af, IEEE802.3at
• IEEE802.3x Flow control and back pressure
• technology operating in remembering-sending mode to optimize the data transfer process
• recognition and adjustment of automatic speed and half duplex / full duplex
• mounting plate for devices supporting data transfer rates up to 1 Gb/s
• support MAC addresses up to 2K
• compact and robust metal housing
• excellent short-circuit protection
• lightning protection and surge protection
• possibility of mounting on DIN rail
• Redundant power supply: 48~57V DC, redundant power supply with pole change protection function
• increased operating temperature range, from -40°C to +85°C
• removable terminal connector
• degree of protection IP40
• Ethernet transmission rate: Fast Ethernet
• industrial use: yes
• Number of ports: 4
• PoE (Power over Ethernet): yes
• Protection against vandalism: no
• Managed: No
• Mounting Type: DIN Rail
• For outdoor use: no
• Number of uplink ports: 1
• Uplink Port Type: RJ45
• VLAN: no
• PoE power budget: 30W
• PoE standard: IEEE802.3at (PoE+)
