Tinklo jungiklis TP-LINK TL-SG3428MP, 24 PoE prievadai, SFP

Trumpai apie prekę

Prekė: Tinklo jungiklis TP-LINK TL-SG3428MP, 24 PoE prievadai, SFP. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: 569538838

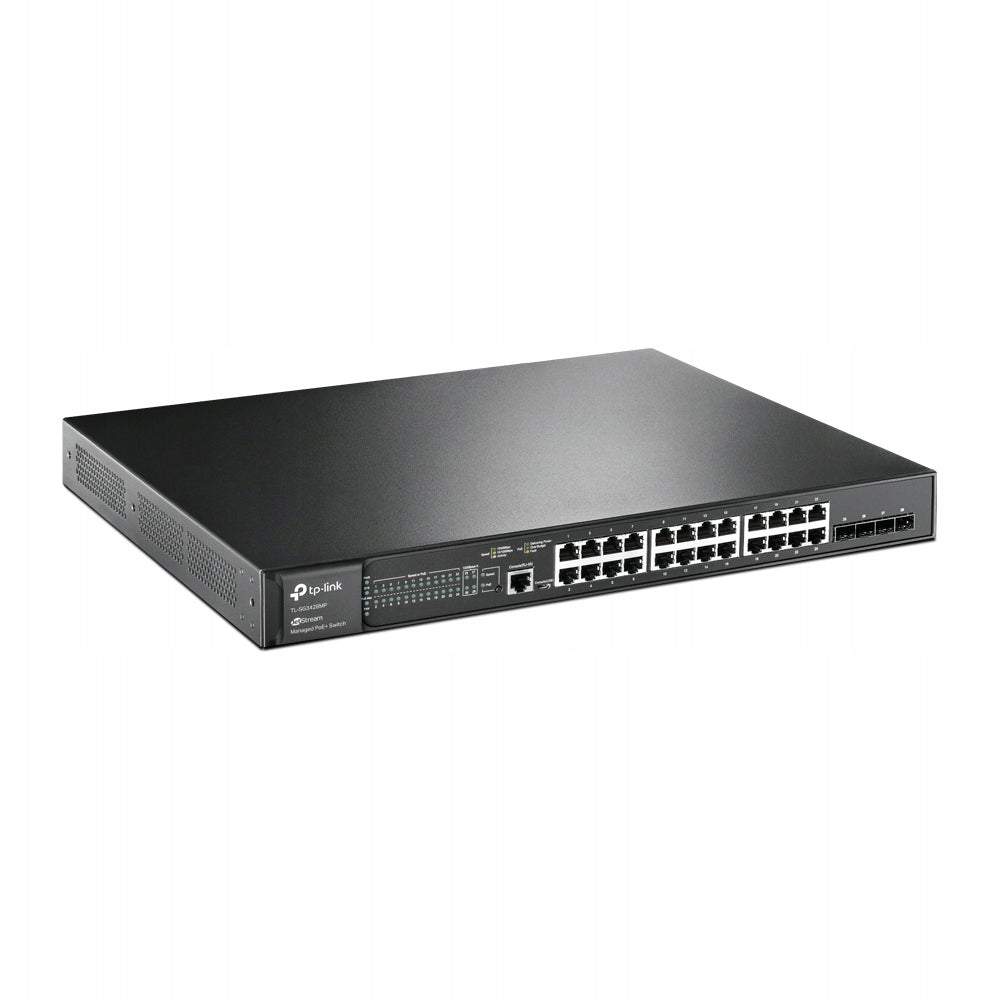

Switch TP-Link TL-SG3428MP 24 port

Switch designed for many applications

• The TL-SG3428MP switch has 24 PoE+ ports compliant with 802 standards. af/at and is able to provide devices with up to 384 W* of total power supply.

Software control of network infrastructure (SDN) with access from the cloud

• Omada’s software-defined network infrastructure control (SDN) platform integrates network devices, including access points, switches and network gateways, providing end-to-end central management from the cloud. Omada enables you to create a highly scalable network that is fully controlled through a single interface.

Specification:

• Switch class: Managed
• Application: Medium and large companies
• Switching modes: L2, L2+, L3
• Network architecture: FastEthernet
• Number of ports 10/100/1000 Mbps: 24
• Number of SFP ports: 4
• Forward mode: Store-and-forward
• Capacity: 56 GB/s
• Forwarding speed: 41.66 MB/s
• MAC address array size: 8
• Support Jumbo frames: Yes
• Jumbo frame size: 9 KB VLAN VLAN
• VLAN groups
• Max Groups 4K VLAN
• 802.1Q Tagged VLAN
• MAC VLAN: 7 entries
• VLAN Protocol: Protocol 16 Template, VLAN 16 Protocol
• PrivateVLAN
• GVRP
• VLAN VPN (QinQ)
• QinQ based on port
• Selective QinQ
• Voice VLAN Supported protocols and standards Access control lists
• Time-based ACL
• MAC ACL
• Source MAC
• Target MAC
• VLAN ID
• User Priority
• Ether Type
• IP ACL
• Source IP
• Target IP
• Fragment
• IP protocol
• TCP Flag
• TCP/UDP Port
• DSCP/IP TOS
• User Priority
• Combined ACL
• Contents of the ACL
• IPv6 ACL
• Policy
• Mirroring
• Redirect
• Rate Limit
• QoS Remark
• ACL applied to Port/VLAN QoS Quality of Service
• 8 queues of priorities
• Prioritizing 802.1p CoS/DSCP
• Queue planning
• SP (Strict Priority)
• WRR (Weighted Round Robin)
• SP+WRR
• Bandwidth control
• Bandwidth limitation based on Port/Flow
• Smoother performance
• Action for Flows
• Mirror (to supported interface)
• Redirect (to supported interface)
• Rate Limit
• QoS Remark Security Transmission security
• IP-MAC-Port Binding
• 512 entries
• DHCP Snooping
• ARP Inspection
• IPv4 Source Guard: 100 entries
• IPv6-MAC-Port Binding
• 512 entries
• DHCPv6 Snooping
• ND Detection
• IPv6 Source Guard: 100 entries
• DoS Defend
• Static/Dynamic Port Security
• Up to 64 MAC addresses per Port
• Broadcast/Multicast/Unicast Storm Control
• kbps/ratio control mode
• 802.1X
• Authorization based on Port
• MAC-based authorization
• VLAN Assignment
• MAB
• Guest VLAN
• Radius Authorization Support
• AAA (including TACACS+)
• Port Isolation
• Secure Web Management via HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control

• Management, monitoring, configuration:
• Support 511 IGMP groups (IPv4, IPv6)
• IGMP Snooping
• IGMP v1/v2/v3 Snooping
• Fast Leave
• IGMP Snooping Querier
• MVR
• MLD Snooping
• MLD v1/v2 Snooping
• Fast Leave
• MLD Snooping Querier
• Configuration of a static group
• Limited IP Multicast Transfer
• Multicast transmission filtering: 256 profiles and 16 profile entries
• Functions L2:
• IGMP Snooping
• IGMP v1/v2/v3 Snooping
• Fast Leave
• IGMP Snooping Querier
• IGMP Authentication
• IGMP Authentication
• MLD Snooping
• MLD v1/v2 Snooping
• Fast Leave
• MLD Snooping Querier
• Static Group Config
• Limited IP Multicast
• MVR
• Multicast Filtering: 256 profiles and 16 profile entries
• Functions L3:
• 16 IPv4/IPv6 interfaces
• Static routing
• 48 static routes
• Static ARP Entries
• 316 ARP entries
• ARP proxy
• Gratuitous ARP
• DHCP server
• DHCP Relay
• DHCP L2 Relay
• Housing type: Rack
• Fan: Yes
• Power Supply: Internal
• Accessories included:
• TL-SG3428MP Switch
• Power supply
• Installation instructions
• Mounting kit
• Rubber feet
• Dimensions: 440 × 330 × 44 mm (17,3 × 13,0 × 1,7 inches)
