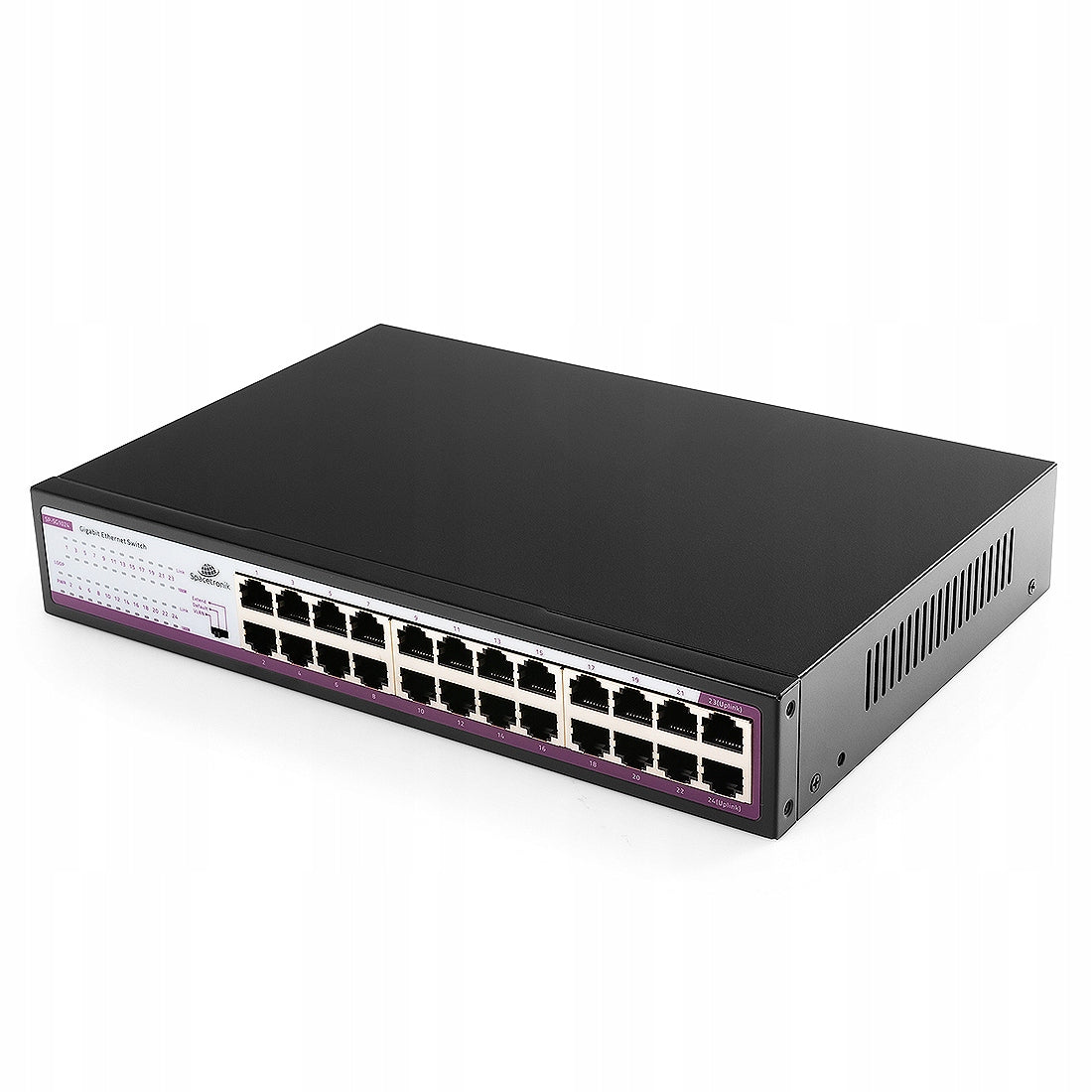

Tinklo jungiklis Spacetronik SP-SG1024, 24 portų, gigabitinis

Trumpai apie prekę

Prekė: Tinklo jungiklis Spacetronik SP-SG1024, 24 portų, gigabitinis. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Spacetronik
• Modelis: SP-SG1024

Switches Spacetronik - the best for separating your Internet network

Advantages of the Spacetronik SP-SG1024 Switch

✓ 24 RJ-45*10/100/1000M port

✓ Compliance with IEEE 802.3/u/ab/x standards

✓ Support automatic port reversal (Auto MDI/MDIX)

✓ Handy, ideal for office and home use

✓ Metal, durable heat dissipation housing

✓ Iintelligent switch with three speeds and one button, supporting VLAN mode, Normal mode and Extend mode

✓ Loop alarm support

✓ Panel with LED indicators for easier monitoring of the device status

✓ Mounting arms, power supply included

✓ Provides upload of large files

✓ Filters packets at full unlock speed

✓ Provides maximum throughput

CE, FCC, RoHS Certificates

This Ethernet switch is certified:

• European CE,
• American FCC
• ROHS Directive standards

By buying the switch brand Spacetronik you can be sure that you will receive a proven product of high quality that meets all world standards and norms.

-10°C to 50°C - Reliability

The switch is designed to provide reliability at temperatures from -10'C to 50'C.

Made of high quality metal housing, which is sturdy and durable.

• provides better heat dissipation
• suitable for most environments
• long service life

Plug & Play Technology

Just connect the device and everything is ready to work – without the need for additional configuration of equipment or network.

This solution saves your time and ensures trouble-free operation from the very beginning.

Protection against network congestion

Loop Alarm automatically detects and eliminates loops that may cause network congestion.

▶ It is an intelligent solution that protects your network from interference and loss of performance.

Easy switching between modes

With a single, smart button on the housing, you can switch between modes:

• VLAN: enables network segmentation into smaller, isolated subnets, increasing the security and efficiency of network traffic management.
• Normal: Provides standard, full-band communication between all connected devices, ideal for everyday use.
• Extend: increases transmission range, enabling stable connections over longer distances, which is particularly useful for extensive network installations.

Specification

Voltage

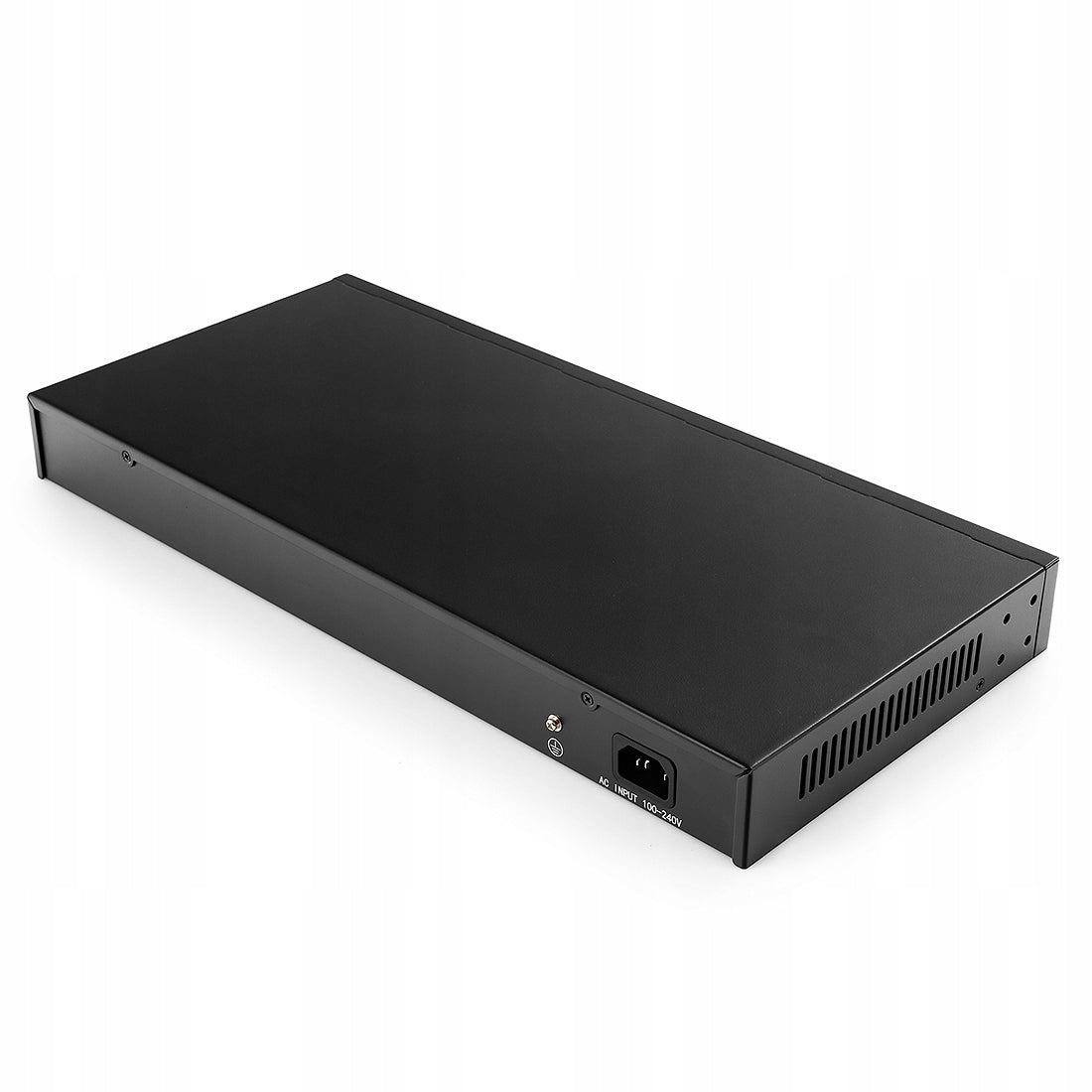

• Input voltage supply - AC 100-240V
• Power Output Voltage - 12V1A

Performance

• Switching capacity - 48Gbps
• Efficiency - 35,71Mpps
• Package buffer - 4Mbit
• MAC Address - 8K
• Upload Mode - Store and Upload Further
• Modes - VLAN, Normal, Extend

Network protocols - IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab

Network medium - 10BASE-T: Cat 3,4,5 or above UTP/STP (≤100 m); 100BASE-TX: Cat5 or above UTP/STP (≤100 m); 1000BASE-TX: Cat5 or above UTP/STP (≤100 m)

LED indicators - PWR, Link

Dimensions

• Product Dimensions - 268*181*44mm; Package Dimension - 312*262*84mm
• Net product weight - 1,16kg; Gross product weight - 1,66kg

Working environment

• Operating temperature: -10-50C
• Storage temperature: -20-70C
• Operating Humidity: 10%~90% (non-condensing)
• Storage humidity: 5%~95% (non-condensing)

Content of packaging - switch 1pc. , instruction 1pc. , power supply 1pc. , arms for mounting 1pc.

Certificates - CE, FCC, RoHS
