Tinklo jungiklis SGF241, 24 Gigabit prievadai, SFP

Trumpai apie prekę

Prekė: Tinklo jungiklis SGF241, 24 Gigabit prievadai, SFP. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: SGF161

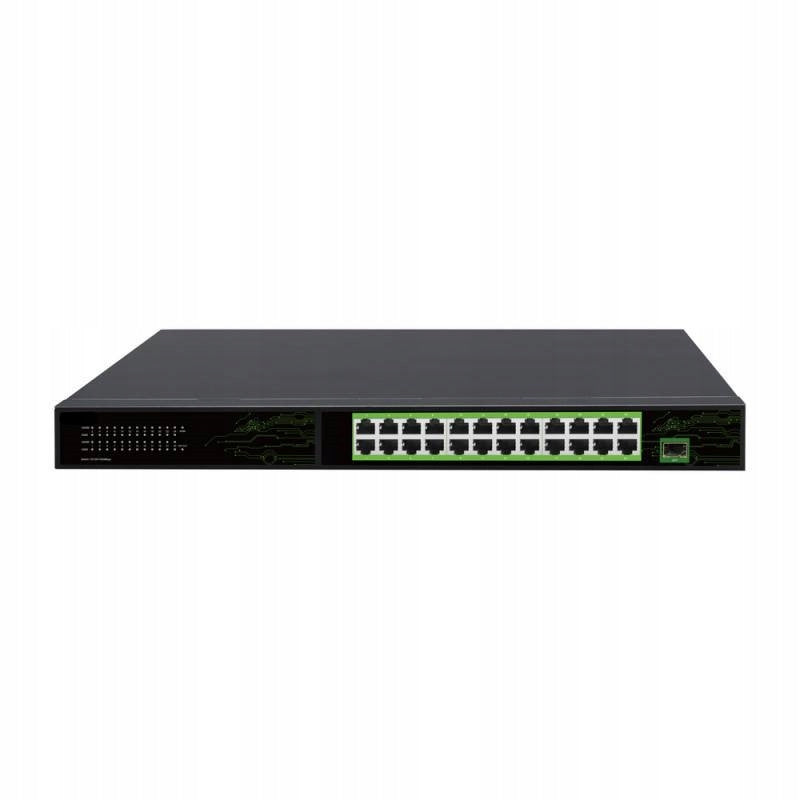

LN-SGF241 Gigabit Unmanaged 24 Port Network Switch + SFP

SGF241 is an unmanaged gigabit 24-port switch with 1 SFP port.

It provides high lossless bandwidth of 50Gbps for lightning-fast data transfer over distances of up to 130m over a 10/100/1000Mbps Gigabit Ethernet network.

MAIN FEATURES :

• 24 RJ45 1Gb/s ports
• 1 SFP port 1Gb/s
• 6KV lightning protection
• Protection against 8KV electrostatic discharges

Ports

• RJ45 1-24: 10/100/1000Mb/s
• SFP 1: 10/100/1000Mb/s

Transmission speed

• 2000 Mbps Full Duplex (simultaneous communication in both directions)
• 1000 Mbps Half Duplex (alternating communication in both directions)
• 100 Mbps Half Duplex (alternating communication in both directions)
• 10 Mbps Half Duplex (alternating communication in both directions)

Transmission distance

• 130m for 10Mbps
• 130m for 100Mbps
• 130m for 1000Mbps

Performance specification

• Bandwidth: 50Gbps
• Network latency (10/100/1000 Mbps): ≤16μs (64bytes packet size)
• MAC Address Table: 8K
• Frame filter and transmission rate:

  - maximum 14800pps for 10M

  port- maximum 148800pps for 100M

  port- maximum 1488000pps for 1000M

  port

Network standard

• IEEE 802.3 and 10BASE-T
• IEEE802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control

Power support

Power Input: AC 90~264V 11W

Level of protection

• Protection against atmospheric discharges: 6KV
• Protection against electrostatic discharge: 8KV

Physical specifications

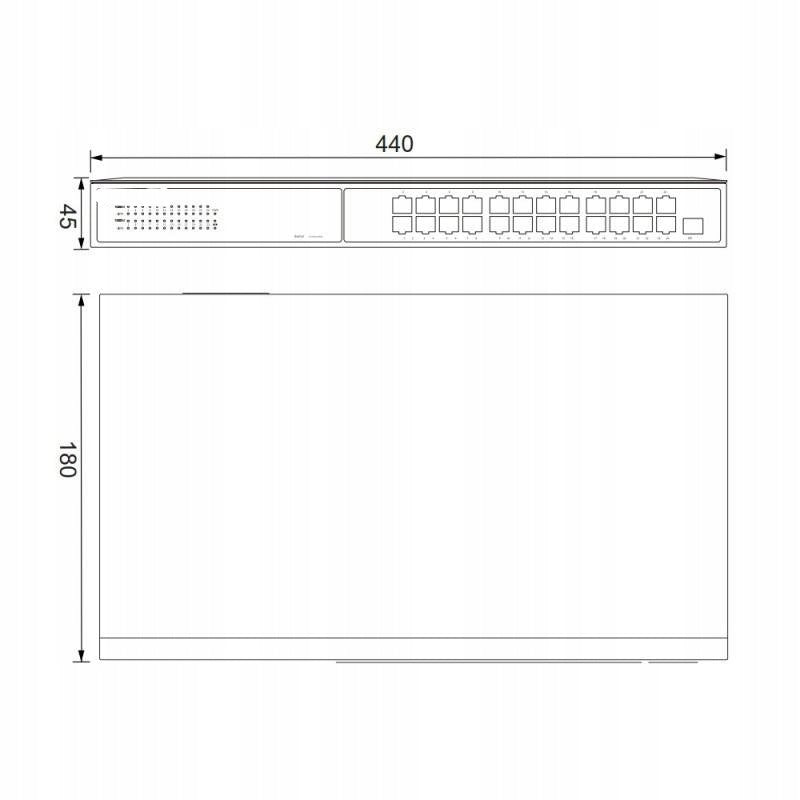

• Size: 440 x 180 x 45mm
• Weight: 2.65kg

Working environment

• Operating temperature: -30℃-60℃
• Storage temperature: -40℃-70℃
• Operating Humidity: 10%-90% non-condensing
• Storage humidity: 5%-90% non-condensing

Certification

• CE
• FCC Part 15, Class B
• RoHS 2.0

Auction number: 18505421908
