Tinklo jungiklis Pulsar SF116WP, 18 prievadų, 16 kamerų, 2x PoE

Trumpai apie prekę

Prekė: Tinklo jungiklis Pulsar SF116WP, 18 prievadų, 16 kamerų, 2x PoE. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Pulsar
• Modelis: SF116WP

Product Code: SF116WP

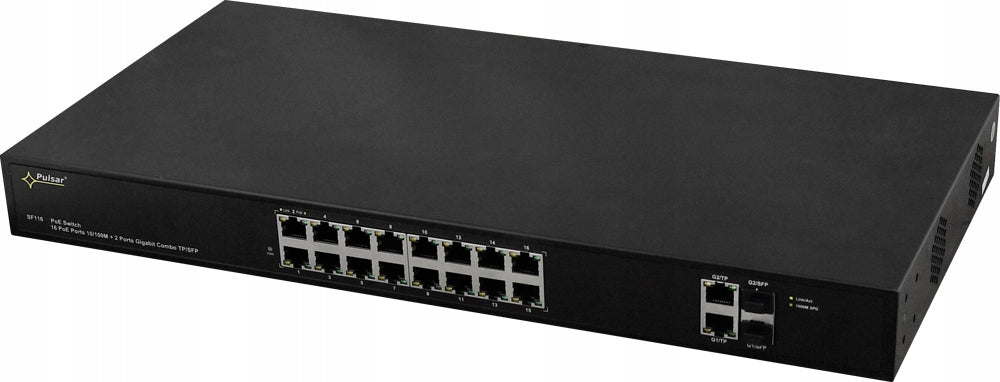

18 Port SF116WP PoE Switch Without Power Adapter for 16 IP Cameras

• Switch 18 ports
• 16 PoE ports 10/100 Mbps (data transfer and power supply)
• 2 RJ45 10/100/1000 Mbps ports (G1/TP, G2/TP ports) (UpLink)
• 2 SFP ports 10/100/1000 Mbps (G1/SFP, G2/SFP port) (UpLink)
• 30W for each PoE port, support IEEE 802.3af/at compliant devices (PoE+)
• Support auto-learning and auto-aging MAC addresses (16K size table)
• Additional mounting hardware
• Optical signalling

The SF116WP is an 18-port PoE switch designed to power IP cameras operating in the IEEE 802.3af/at standard.

Switch on ports 1 to 16 has the function of automatic detection of devices powered in the PoE / PoE + standard.

Ports marked G1/TP and G2/TP are used to connect further network devices via RJ45 connector.

The switch also has two SFP sockets (marked G1/SFP and G2/SFP), which after using a fiber optic module (GBIC insert) allow transmission over optical fiber. On the front panel there is an indication of the operating status of the device realized on LEDs.

PoE technology provides a network connection and reduces installation costs, eliminating the need to supply a separate power cable to each device. In addition to cameras, network devices that use this technology can be powered in this way, e.g.

Technical data:

• Switch type standard
• Power supply
• 48÷54VDC, disconnected power socket
• no power supply included
• Ports 18
• PoE ports
• 16 x 10/100 Mbps - IEEE 802.3af/at, PoE+
• 48÷54VDC, 30W/port, 240W/all ports
• UPLINK ports 2 x 1Gb/s - G1/TP, G2/TP
• SFP UPLINK sockets
• 2 x 1Gb/s - G1/SFP, G2/SFP
• G1/TP and G1/SFP – cannot work simultaneously
• G2/TP and G2/SFP – cannot work simultaneously
• Dimensions 442 x 44 x 224 [+/-2 mm]
• Standard / RACK 19" mounting
• LED Optical Signaling
• Additional mounting hardware – holder for RACK

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Pulsar
Parametry	Product weight with unit packaging	2.6 kg
Parametry	Number of ports	18
Parametry	EAN (GTIN)	5902135320556
Parametry	Manufacturer code	SF116WP
