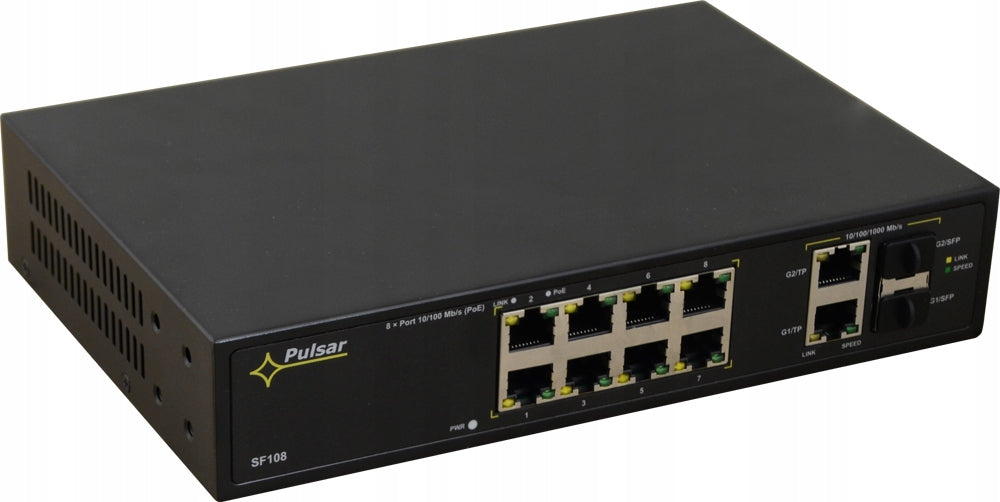

Tinklo jungiklis Pulsar SF108-90W, 8 PoE, 2 SFP, 2 GE

Trumpai apie prekę

Prekė: Tinklo jungiklis Pulsar SF108-90W, 8 PoE, 2 SFP, 2 GE. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Pulsar
• Modelis: SF108-90W

Features:

• Switch 10 ports

  8 PoE ports 10/100Mbps),(port 1÷8) (data and power supply)

  2 ports 10/100/1000Mbps (port G1/TP, G2/TP) (UpLink)

  2 ports 10/100/1000Mbps SFP (ports G1/SFP, G2/SFP)

• 30W for each PoE port, support IEEE802.3af/at (PoE+) compliant devices
• 80W – maximum total power for all PoE ports
• Support auto-learning and auto-aging MAC addresses (1K size table)
• Optical signalling

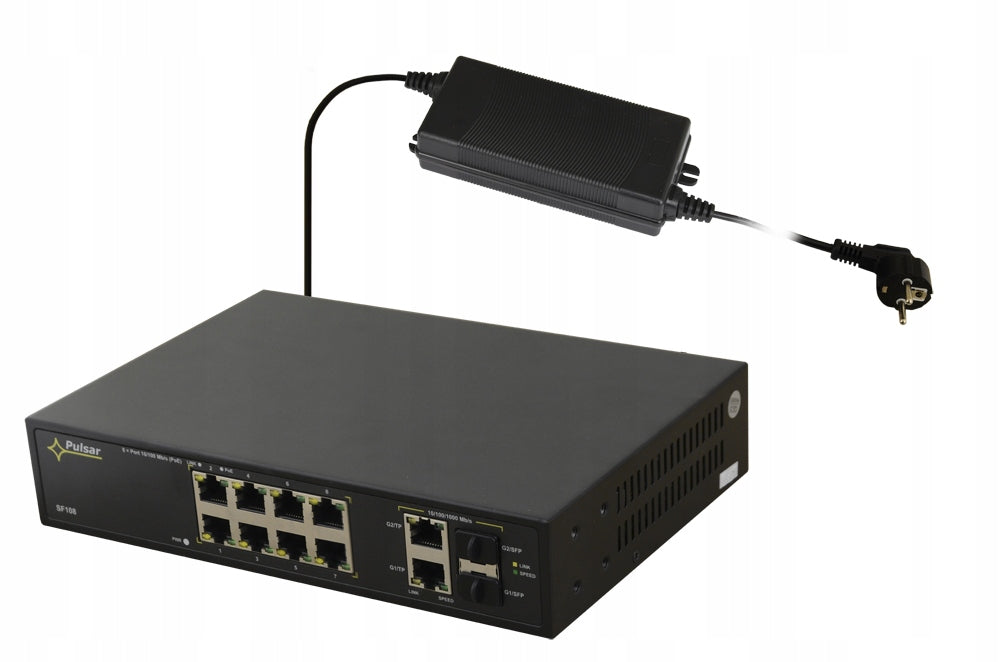

• Desktop power supply PSD520175 52VDC/1,75A/90W max. included
• Additional mounting elements – includes two sheets fixing the switch to the ground, holder for RACK 19”

Description:

SF108-90W is a 10-port PoE switch designed to power IP cameras operating in the IEEE 802.3af/at standard. Switch on ports 1 to 8 has the function of automatic detection of devices powered in the PoE / PoE + standard. Ports marked G1/TP and G2/TP are used to connect further network devices via RJ45 connector. The switch also has two SFP sockets (marked G1/SFP and G2/SFP), which after using a fiber optic module (GBIC insert) allow transmission over optical fiber.

ATTENTION!

• sockets marked with G1/TP and G1/SFP cannot work simultaneously
• sockets marked with G2/TP and G2/SFP cannot work simultaneously

On the front panel there is an indication of the operating status of the device realized on LEDs (description in the table below).

PoE technology provides a network connection and reduces installation costs, eliminating the need to supply a separate power cable to each device. In addition to cameras, network devices that use this technology can be powered in this way, e.g. IP telephone, Access Point, router.

Technical parameters:

Ports

• 8 x PoE (10/100Mbps) (RJ-45)
• 1 x UPLINK (10/100/1000Mbps) (RJ-45)
• UPLINK (10/100/1000Mbps) (SFP)
• with automatic connection speed negotiation, Auto MDI/MDIX automatic patching)

PoE power

• IEEE 802.3af/at (1÷8), 52VDC / 30W per port (max 48W for all devices) (4/5 (+), 7/8 (-) pairs used)

Protocols, standards

• IEEE802.3, 802.3u, 802.3x CSMA/CD, TCP/IP

Redirection speed

• 10BASE-T: 14880pps/port
• 100BASE-TX: 148800pps/port

Capacity

• 1,6Gbps

Method of transmission

• Store-and-Forward

Optical work signaling

• Power supply of the switch;
• Link;
• PoE Status

Power supply

• 90 ÷ 264VAC 50÷60Hz / 1,2A 230VAC
• Desktop power supply PSD520175 52VDC/1,75A/90W max.

Working conditions

• Temperature -10°C ÷ 45°C,
• Relative humidity 5% - 90%, non-condensing

Dimensions (W x H x D)

• 220 x 44 x 150 [mm]

Additional accessories

• fixing sheets to the ground,
• Handle for Rack 19”

Net/gross weight

• 1,3/1,5kg

Protection class PN-EN 60950-1:2007

• I (first)

Storage temperature

• -20°C ÷ 60°C

Declarations

• CE
