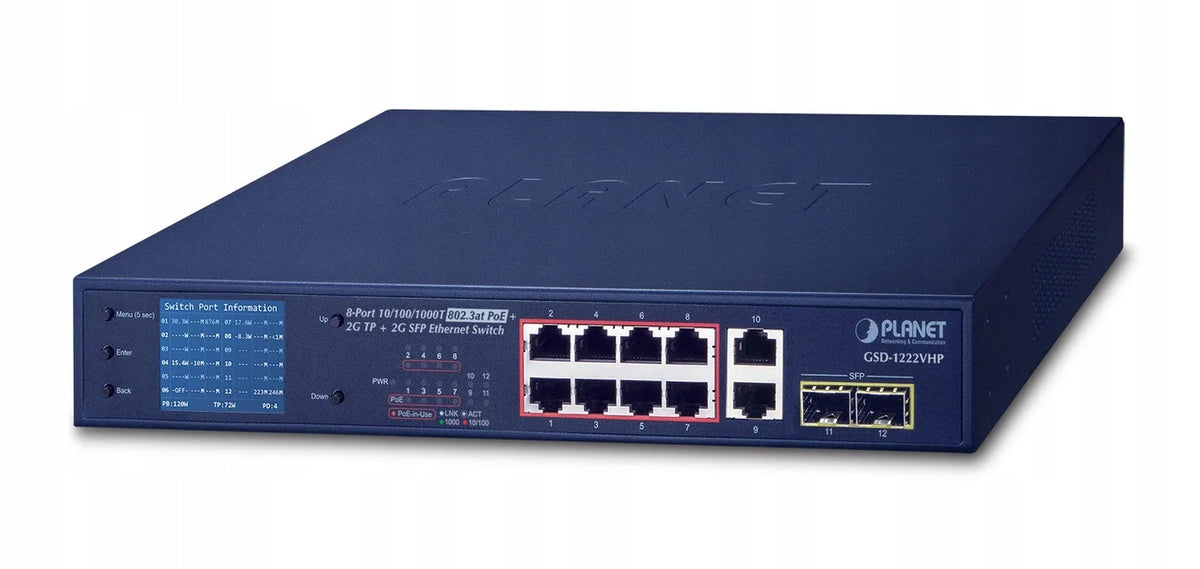

Tinklo jungiklis PLANET GSD-1222VHP, 12 portų, Gigabit, nevaldomas

Trumpai apie prekę

Prekė: Tinklo jungiklis PLANET GSD-1222VHP, 12 portų, Gigabit, nevaldomas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Planet
• Modelis: GSD-1222VHP

PLANET GSD-1222VHP. Switch Type: Not Managed. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 10. Full duplex. Address table size: 8000 inputs, Routing/switching throughput: 24 Gbit/s. Communication standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. PoE support. Rack Mount Capabilities, Layout: 1U

✏ The most important technical parameters:

• Management Features - Switch Type: Not Managed
• Network - 10G support: No
• Network - Copper Ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
• Network - Full duplex: Yes
• Network - Flow control support: Yes
• Network - Automatic MDI/MDI-X: Yes
• Network - Auto-Negotiation: Yes
• Network - Supported auto-learning MAC addresses: Yes
• Network - Supported auto-aging MAC addresses: Yes
• Network - VLAN support: Yes
• Data transfer - Routing/switching bandwidth: 24 Gbit/s
• Data transfer - Bandwidth: 18 Mpps
• Data transfer - Address table size: 8000 inputs
• Data transfer - Store-and-forward: Yes
• Data transfer - Compatible with Jumbo Frames: Yes
• Data transfer - Jumbo Frames extension: 9000
• Power over Ethernet (PoE) - PoE Support: Yes
• Power over Ethernet (PoE) - Power over Ethernet Plus (PoE+) number of ports: 8
• Power supply via Ethernet (PoE) - Power supply via Ethernet (PoE) power supply per port: 30 W
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget: 120 W
• Construction - Housing material: Metal
• Design - LEDs: Link, PoE, Power supply, Speed
• Design - Number of fans: 1 went.
• Performance - Communication standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Features - Colour of product: Blue
• Features - Certificates: FCC 15 A, CE
• Weight and sizes - Product weight: 1,8 kg
• Weight and sizes - Product width: 180 mm
• Weight and sizes - Product depth: 280 mm
• Weight and sizes - Product height: 44 mm
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 10
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Ports and interfaces - Number of SFP slots: 2
• Power - AC input voltage: 100 - 240 V
• Power - AC input frequency: 50 - 60 Hz
• Power - Maximum power consumption: 130 W
• Power - Input current: 2.5 A
• Power - Heat emission: 446 BTU/h
• Working conditions - Temperature range (storage): -10 - 70 °C
• Working conditions - Relative humidity range: 10 - 90%
• Working conditions - Permissible relative humidity: 5 - 90%
• Working conditions - Temperature range (operation): -10 - 60 °C
• Technical details - Rack mounting options: Yes
• Other functions - Layout: 1U
• Technical details - Power protection features: Short circuit
• Logistics data - Harmonised system code (HS): 85176990
• Classification - Manufacturer code: GSD-1222VHP
• Classification - EAN: 4711605283564
• Classification - Product ID: 65148419
