Trumpai apie prekę
Prekė: Tinklo jungiklis NOVUS, 4 PoE+ prievadai. Kategorija: Jungikliai ir koncentratoriai.
- Gamintojas: Novus
- Modelis: NVS-3304SP
❗ NOTE❗ MAXIMUM RANGES DEPEND ON THE QUALITY OF THE WIRES, INTERFERENCE AND CAMERA MODEL
✅ EXTENDED MODE - SWITCH INCREASING THE TRANSMISSION AND POWER RANGE OF POE

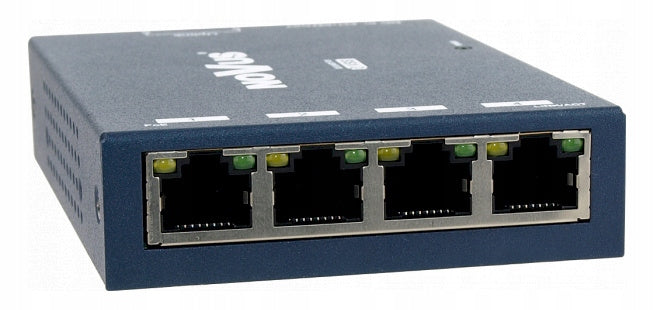

✅ POE+ PORTS (X4)

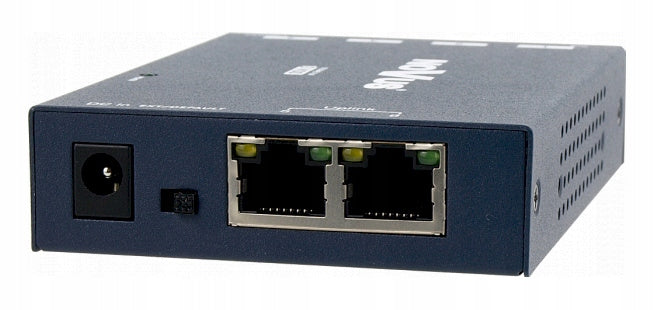

✅ UPLINK PORTS (X2)
In most cases, they have higher bandwidth than PoE ports.
Their ranges are as follows:
- up to 20 km - with fiber optic connection
- up to 100m - when connected with UTP cable
Specification
GENERAL
➡ Device type: PoE+ network switch
NETWORK
➡ External ports: PoE+ ports: 4 x 10Mbps / 100Mbps (number of PoE+ ports available simultaneously limited by power supply performance), UPLINK ports: 2 x 10Mbps / 100Mbps
➡ PoE Standards: IEEE802.3af, Class 3, IEEE802.3at, Class 4
➡ PoE power mode: Endspan (1,2+ / 3,6-)
➡ Total bandwidth: 1.2 Gbps
➡ Supported protocols: IEEE 802.3, IEEE 802.3u
➡ MAC Address List: 1K
FUNCTIONS
➡ CCTV: Extended mode switch, increasing the transmission and power supply range of PoE up to 200m (with 10 Mbps bandwidth transmission)
➡ Additional operating modes: Extended
➡ Surge protection: yes
INSTALLATION PARAMETERS
➡ Housing: Metal, navy blue
➡ Dimensions (mm): 102 (W) ) x 22 (H) ) x 75 (L. )
➡ Weight: 0.3 kg
➡ Power supply: 53 VDC (100 ~ 240 VAC/53 VDC power supply included)
➡ Power consumption: 60 W (maximum)
➡ Port capacity: 55 W for ports 1 to 4, no more than 30 W for one port
➡ Operating temperature: 0°C ~ 40°C
➡ Humidity: 0÷85% (relative, non-condensing)
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | Novus |
| Parametry | Product weight with unit packaging | 0.15 kg |
| Parametry | Number of ports | 4 |
| Parametry | EAN (GTIN) | 0657968166912 |
| Parametry | Manufacturer code | NVS-3304SP |
| Parametry | Packaging status | original |
