Tinklo jungiklis MIKROTIK ROUTERBOARD CRS305-1G-4S+IN, 1G, 4 SFP+

Trumpai apie prekę

Prekė: Tinklo jungiklis MIKROTIK ROUTERBOARD CRS305-1G-4S+IN, 1G, 4 SFP+. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: MikroTik
• Modelis: CRS305-1G-4S+IN

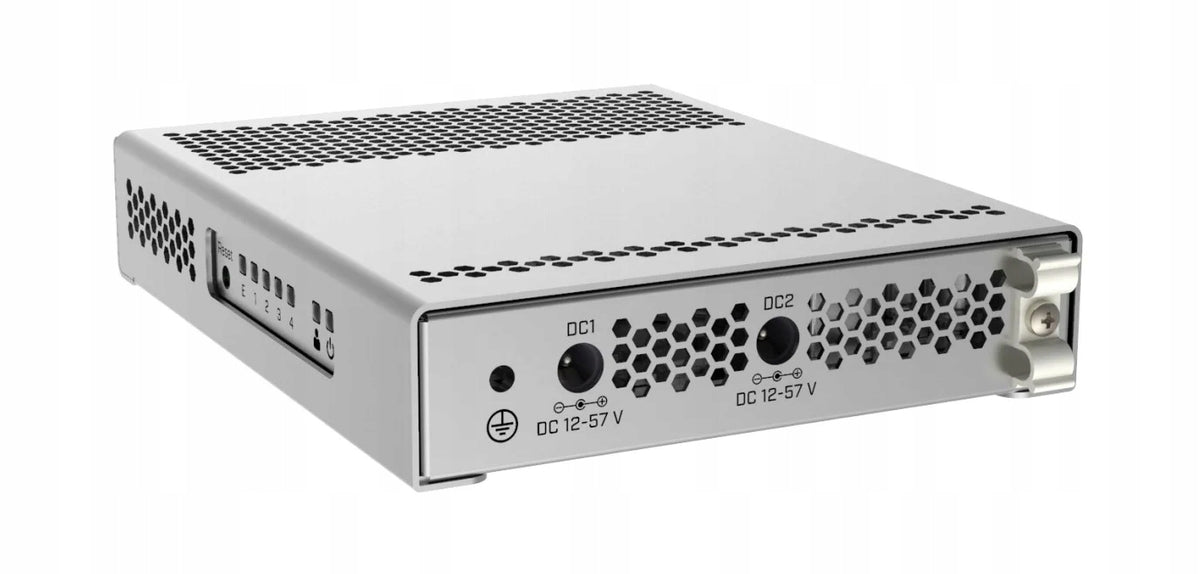

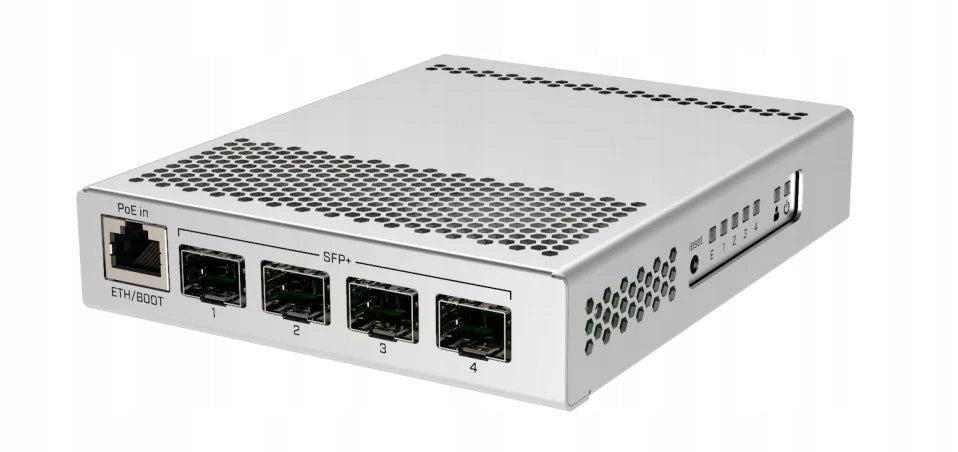

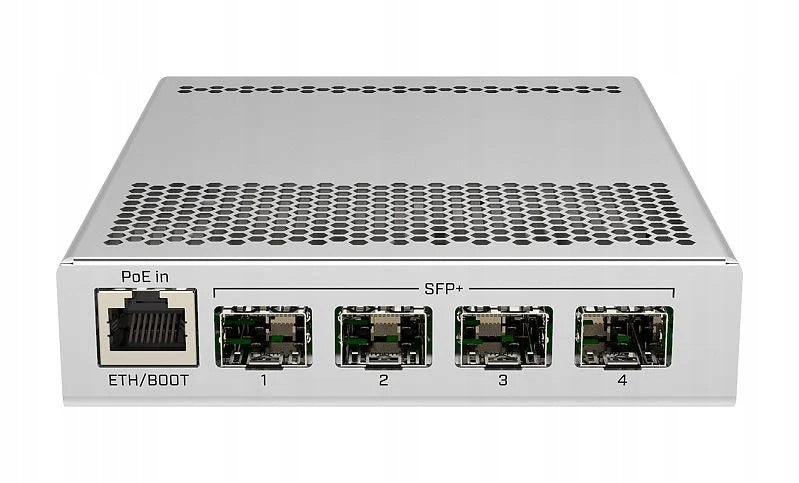

MIKROTIK ROUTERBOARD CRS305-1G-4S+IN

The most important features

• 4 SFP+ slots (10 Gbps)
• Gigabit Ethernet port
• 41 Gb/s non-blocking bandwidth
• Packet forwarding speed: 61 Mp/s
• PoE input (passive or 802.3af/at)
• Two DC sockets running redundantly
• Dual boot - SwitchOS or RouterOS level 5
• Metal housing type desktop

Description

MikroTik CRS305-1G-4S+IN is a managed switch equipped with 1 gigabit Ethernet port and 4 SFP+ (10 Gb/s) slots. The design is based on a 98DX3236A1 processor / switch chip with a clock speed of 800 MHz, in addition, the device has 512 MB of RAM.

The maximum non-blocking bandwidth is 41 Gb/s, and the packet forwarding speed 61 Mp/s. CRS305-1G-4S+IN has two operating systems - SwitchOS and RouterOS with Level 5 license.

The first option allows you to use a powerful Layer2 switch, while the second allows for advanced Layer3 configuration.

Description

The product can be powered via PoE (passive or 802.3af/at) or one of two DC sockets. DC sockets work redundantly - in the event of a power failure, the device automatically switches to another source.

The switch has a metal desktop housing, is not equipped with a fan, works silently. An additional advantage is low power consumption - up to 12 W.

Technical specification

Processor98DX3236A1Clocking800 MHz RAM512 MBPBuilt-in memory16 MBType of built-in memoryFlashPorts Ethernet1 gigabit Ethernet10/100/1000 Mb/sSlots SFP+4 slots SFP+ (10 Gbps)Input PoETakNumber of DC2 socketsSupported voltage range12 -57 V DCMaximum power consumption12 WOperating systemDual boot:SwitchOSRouterOS level 5Dimensions141x115x28 mmAdmissible operating temperatureFrom -40 to 70 degrees Conset composition24 V power supply, 0.8 A

Technical specification

Processor, :

• 98DX3236A1

Clocking, :

• 800 MHz

RAM, :

• 512 MB

Embedded memory, :

• 16 MB

Type of built-in memory, :

• Flash

Ethernet ports, :

• 1 gigabit Ethernet port

• 10/100/1000 Mbps

SFP+ slots, :

• 4 SFP+ slots (10 Gbps)

PoE input, :

• Yes

Number of DC sockets, :

• 2

Supported voltage range, :

• 12 - 57 V DC

Maximum power consumption, :

• 12 IN

Operating system, :

• Dual boot:

• SwitchOS
• RouterOS level 5

Dimensions, :

• 141x115x28 mm

Admissible operating temperature, :

• From -40 to 70°C

Set composition, :

• Device

• 24 V, 0.8 A power supply
