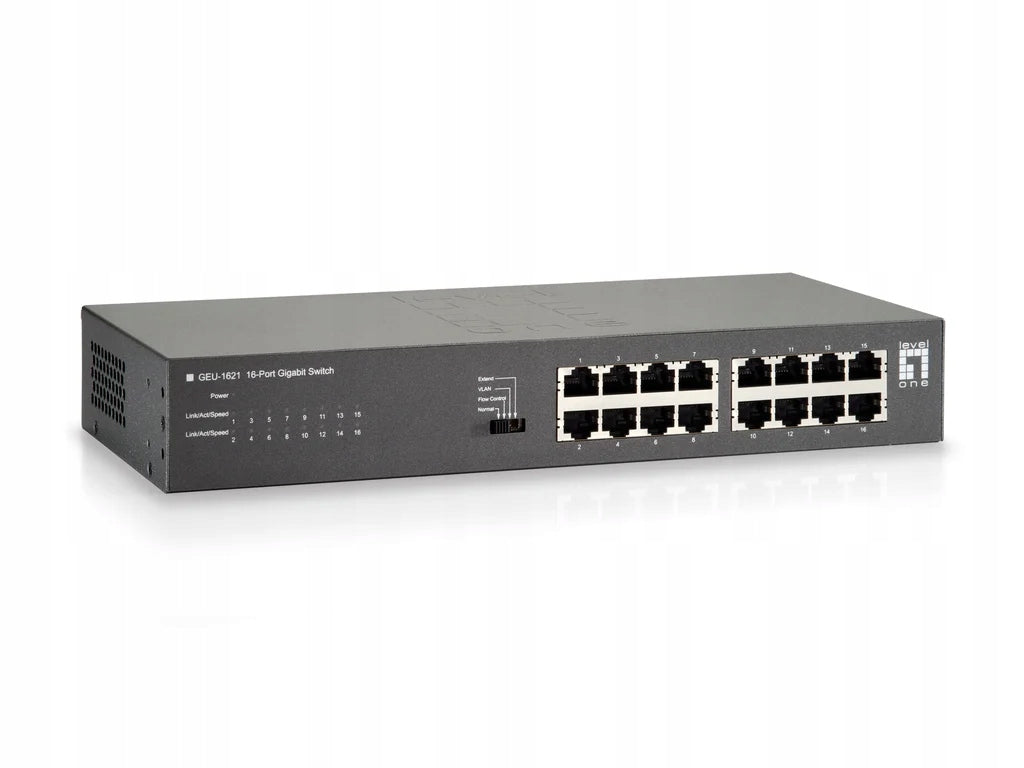

Tinklo jungiklis LevelOne GEU-1621, 10/100/1000 Mbps, Gigabit Ethernet

Trumpai apie prekę

Prekė: Tinklo jungiklis LevelOne GEU-1621, 10/100/1000 Mbps, Gigabit Ethernet. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: AL
• Modelis: patrz opis i zdjęcia
• Plotis: 280 mm

LevelOne GEU-1621. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 16. Full duplex. Address table size: 8000 inputs, Routing/switching throughput: 32 Gbit/s. Communication standards: IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Rack mount capabilities

✏ The most important technical parameters:

• Data transfer - Routing/switching bandwidth: 32 Gbit/s
• Data transfer - Forwarding speed: 1,488 Mpps
• Data transfer - Address table size: 8000 inputs
• Data transfer - Store-and-forward: Yes
• Data transfer - Compatible with Jumbo Frames: Yes
• Data transfer - Jumbo Frames extension: 9000
• Processor - Processor model: Realtek RTL8382L
• Computer system - Embedded processor: Yes
• Performance - Colour of product: Grey
• Performance - Flash memory size: 4 MB
• Performance - Country of origin: China
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 16
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Ports and interfaces - Number of Gigabit Ethernet ports: 16
• Features - Communication standards: IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
• Features - Rack mounting options: Yes
• Network - 10G support: No
• Network - Automatic MDI/MDI-X: Yes
• Network - Full duplex: Yes
• Network - Half duplex: Yes
• Network - Flow control support: Yes
• Network - Auto-Negotiation: Yes
• Network - Supported MAC address auto-learning: Yes
• Network - Supported auto-aging MAC addresses: Yes
• Packaging data - Package width: 258 mm
• Packaging data - Package depth: 340 mm
• Packaging data - Package height: 66 mm
• Packaging data - Weight including packaging: 1,7 kg
• Packaging data - Packaging type: Box
• Weight and sizes - Product width: 280 mm
• Weight and sizes - Product depth: 180 mm
• Weight and sizes - Product height: 44 mm
• Weight and sizes - Product weight: 2,6 kg
• Package Contents - Hook Mounting Kit: Yes
• Contents of the package - User Manual: Yes
• Power - Power consumption: 10,1 W
• Power - PoE Support: No
• Power - AC input voltage: 100 - 240 V
• Power - AC input frequency: 50 - 60 Hz
• Logistics data - Harmonised system code (HS): 85176990
• Logistics data - Pallet height (air): 155,5 cm
• Logistics data - Products on pallet: 22 pcs.
• Logistics data - Gross width of pallet: 120 cm
• Logistics data - Gross pallet length: 80 cm
• Logistics data - Height of reference box (external): 280 mm
• Logistics data - Width of bulk box (external): 353 mm
• Logistics data - Gross weight of main housing (external): 10,4 kg
• Logistics data - Length of main box (external): 355 mm
• Logistics data - Products in main box (external): 5 pcs.
• Working conditions - Relative humidity range: 10 - 90%
• Working conditions - Temperature range (operation): 0 - 40 °C
• Working conditions - Temperature range (storage): -40 - 70 °C
• Working conditions - Permissible relative humidity: 5 - 90%
• Classification - Manufacturer code: GEU-1621
• Classification - EAN: 4015867241202
• Classification - Product ID: 11210037
