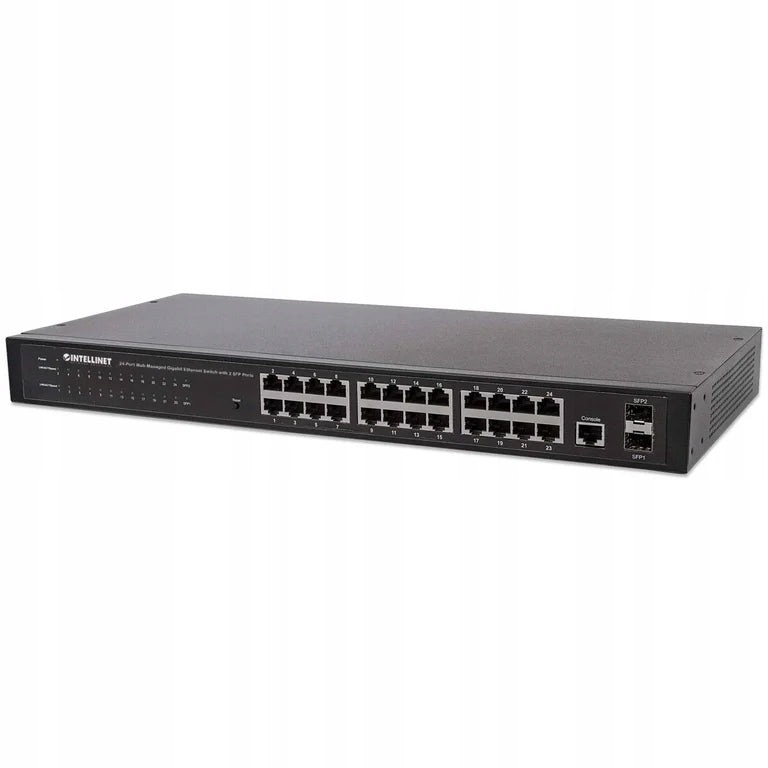

Tinklo jungiklis Intellinet 560917, 10 Gigabit Ethernet, valdomas

Trumpai apie prekę

Prekė: Tinklo jungiklis Intellinet 560917, 10 Gigabit Ethernet, valdomas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Intellinet
• Modelis: 560917

Intellinet 560917. Switch Type: Managed. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 24. Full duplex. Address table size: 8000 inputs, Routing/switching throughput: 52 Gbit/s. Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE ... Rack Mount Capabilities, Layout: 1U

✏ The most important technical parameters:

• Management Features - Switch Type: Managed
• Management Features - Website Management: Yes
• Management Features - IGMP snooping: Yes
• Management Features - Service Quality Support (QoS): Yes
• Management Features - System Event Report: Yes
• Data transfer - Routing/switching bandwidth: 52 Gbit/s
• Data transfer - Forwarding speed: 1,488 Mpps
• Data transfer - Address table size: 8000 inputs
• Data transfer - Store-and-forward: Yes
• Multicast Features - Multicast Support: Yes
• Multicast functions - Number of groups of filtered multicasts: 8
• Network - 10G support: No
• Network - Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Features - Rack mounting options: Yes
• Network - Port duplication: Yes
• Network - Full duplex: Yes
• Network - Compatible with Jumbo Frames: Yes
• Network - Jumbo Frames extension: 9216
• Network - Flow control support: Yes
• Network - Connection aggregator: Yes
• Network - Traffic increase control: Yes
• Network - Frequency limit: Yes
• Network - Spanning tree protocol: Yes
• Network - Auto-Negotiation: Yes
• Network - VLAN support: Yes
• Protection - Access Control List (ACL): Yes
• Protection - Authentication: Port-based authentication
• Performance - Supported cable types: Cat3, Cat4, Cat5, Cat5e
• Construction - Housing material: Metal
• Design - Layout: 1U
• Design - LEDs: Yes
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 24
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Ports and interfaces - Number of SFP slots: 2
• Working conditions - Temperature range (operation): 0 - 40 °C
• Working conditions - Relative humidity range: 10 - 90%
• Working conditions - Temperature range (storage): -40 - 70 °C
• Weight and sizes - Product weight: 2,2 kg
• Weight and sizes - Product width: 440 mm
• Weight and sizes - Product depth: 205 mm
• Weight and sizes - Product height: 44 mm
• Package Contents - Cables: AC
• Power - Maximum power consumption: 20 W
• Power - AC input voltage: 100 - 240 V
• Power - AC input frequency: 50 - 60 Hz
• Power - Power Source: AC
• Logistics data - Harmonised system code (HS): 85176990
• Package Contents - Mounting brackets included: Yes
• Color - Colour of product: Black
• Contents of the package - User Manual: Yes
• Package Contents - Hook Mounting Kit: Yes
• Technical details - Certificates of conformity: CE, Federal Communications Commission (FCC)
• Other functions - Buffer size: 512 KB
• Other functions - Certificates: FCC Class A, CE
• Classification - Manufacturer code: 560917
• Classification - EAN: 0766623560917
• Classification - Product ID: 26981743
