Tinklo jungiklis Intellinet, 16 Gigabit Ethernet prievadų (RJ45 10/100/1000)

Trumpai apie prekę

Prekė: Tinklo jungiklis Intellinet, 16 Gigabit Ethernet prievadų (RJ45 10/100/1000). Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Intellinet
• Modelis: 561068

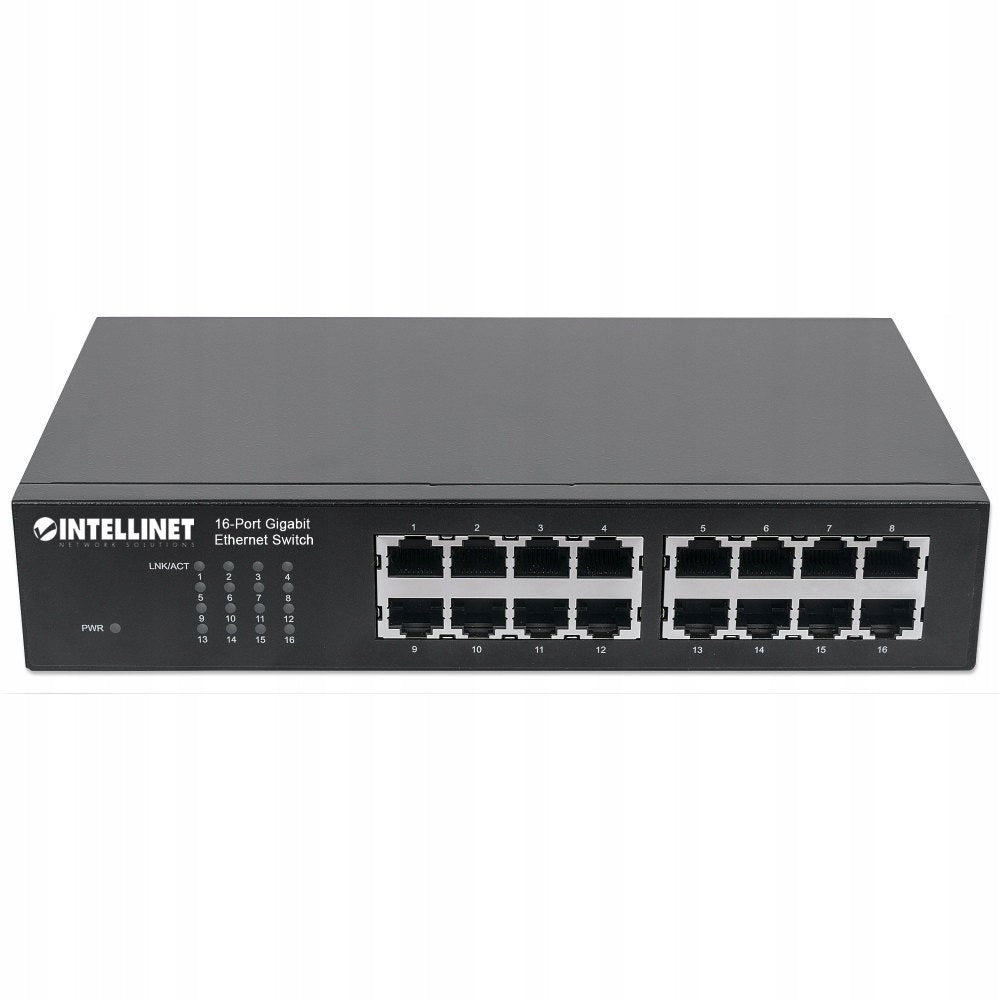

Intellinet 16-Port Gigabit Ethernet Switch 10/100/1000 RJ45

561068

16-Port Gigabit Ethernet Switch 10/100/1000 RJ45

• 16-Port Gigabit Ethernet Switch
• 10/100/1000 Ports with automatic speed detection
• Auto MDIX Crossover on all RJ45 ports (auto uplink)

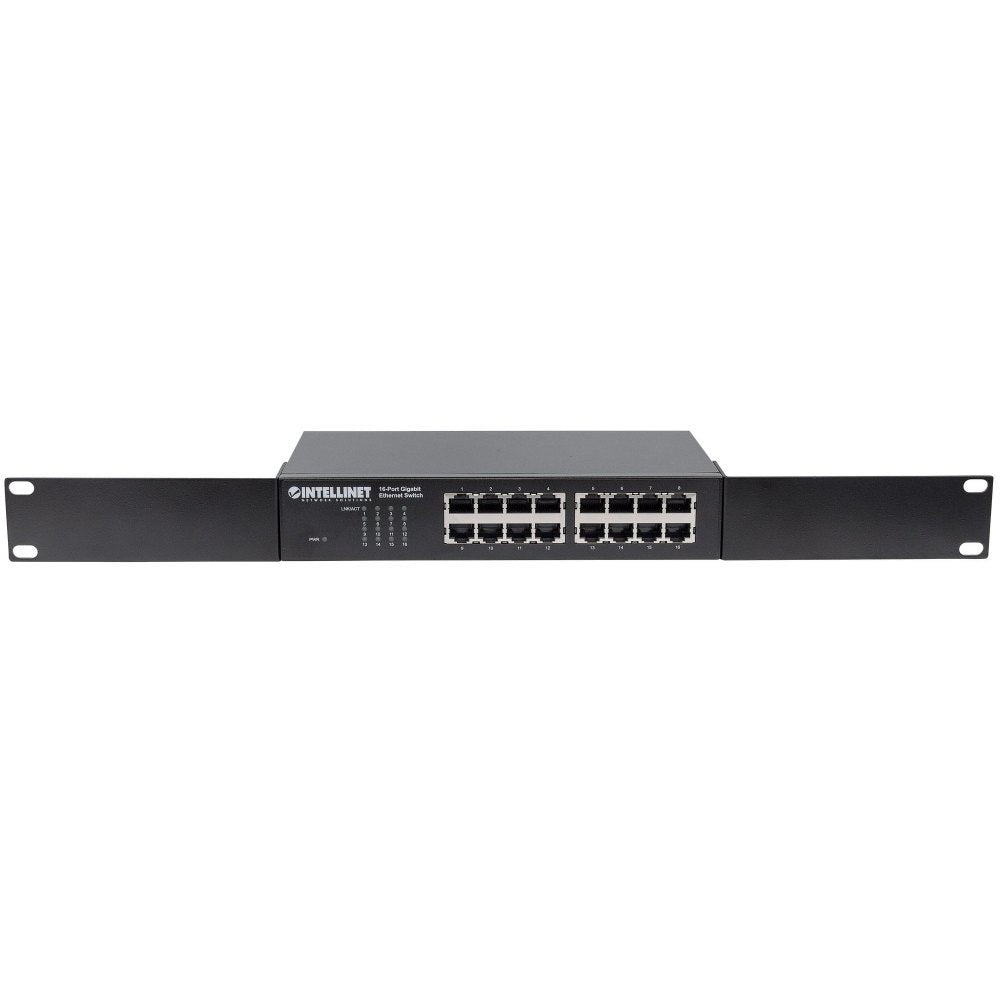

• Can be used as a desktop switch or mounted in a 19" rack
• NWay Auto-negotiation
• Store and Forward switching architecture
• Full/Half duplex modes
• Supports 802.3x flow control for full duplex and collision-based backpressure for half duplex
• "Green Ethernet" power saving technology disables unused ports and adjusts power levels based on cable length
• Supports Jumbo Frames up to 9 KB
• MAC Address Table with up to 8,192 entries
• 512 KB Memory Buffer
• Supports auto-learning and auto-aging MAC addresses
• Fanless design for quiet operation
• Includes 19" rack mounting brackets

Product Information

• Switch Class: Unmanaged
• Application: Home and Small Office (up to 16 ports)
• Network Architecture: Gigabit Ethernet
• Number of 10/100 Mbps Ports: None
• Number of 10/100/1000 Mbps Ports: 16
• Number of 10/100/1000/2500 Mbps Ports: None
• Number of 10Gb Ports: None
• Number of PoE Ports (PoE + PoE+): None
• Number of PoE+ Ports: None
• Number of COMBO Ports: None
• Number of SFP Ports: None
• Number of SFP+ Ports: None
• Number of SFP56 Ports: None
• Number of QSFP+ Ports: None
• Console Port: No
• Forwarding Mode: Store-and-forward
• Switching Capacity: 32 Gbps
• Memory Buffer: 512 KB
• MAC Address Table Size: 8192 entries
• Jumbo Frame Support: Yes
• Jumbo Frame Size: 9 KB
• Supported Protocols and Standards:
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Gigabit Ethernet Twisted Pair)
• IEEE 802.3az (Energy Efficient Ethernet EEE)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (flow control, for full duplex mode)

Enclosure Type:

Rack (Switches/UPS)

Fan:

No

Power Supply:

Internal

Power Consumption:

9.1 W

Environmental Requirements:

• Operating Temperature: 0 - 40°C
• Operating Humidity: 10 - 90% RH, non-condensing
• Storage Temperature: -20 - 70°C

Accessories Included:

• 16-Port Gigabit Ethernet Switch
• 19" Mounting Brackets
• Power Cable
• User Manual

Power Supply:

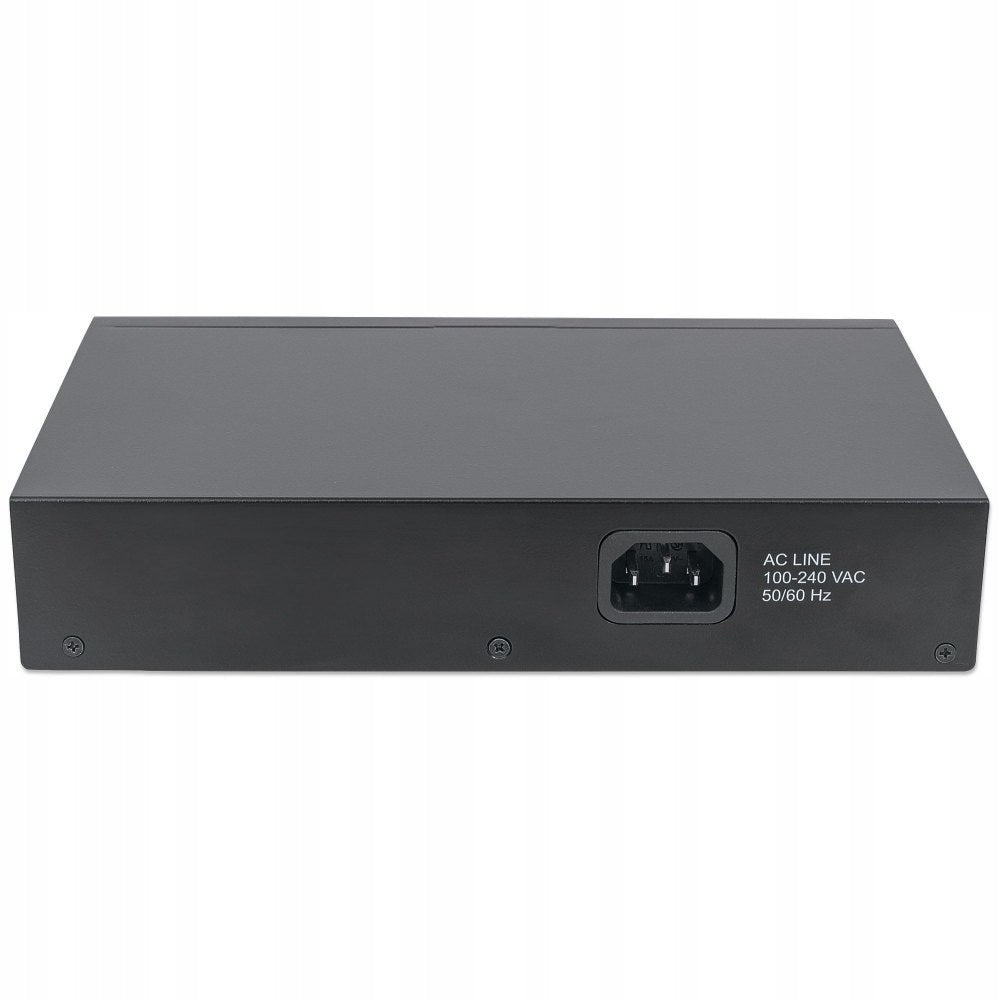

Internal Power Supply: 100 - 240 V AC, 50/60 Hz

Dimensions:

215 x 133 x 44 mm

Weight: 940 g

Other Parameters:

Transmission Media:

• 10Base-T Cat3, 4, 5 UTP/STP RJ45
• 100Base-TX Cat5 UTP/STP RJ45
• 1000Base-T Cat5e UTP/STP RJ45

Packet Forwarding/Filtering Rate:

• 1,488,000 p/s (1000 Mbps)
• 148,800 p/s (100 Mbps)
• 14,880 p/s (10 Mbps)

MAC Address Table: 8192 entries

Bus Throughput: 32 Gbps

Switching Architecture: store and forward

Designations

• Warranty: 36 months.
• Warranty type: External warranty
• Switch class: Unmanaged
• Application: Home and small office (up to 16 ports)
• Network architecture: GigabitEthernet
• Number of ports 10/100 Mbps: None
• Housing type: Rack (Switche/UPS)
• Number of ports 10/100/1000 Mbps: 16
• Number of SFP ports: None
• Number of COMBO ports: None
• Number of PoE ports (PoE + PoE+): None
• Power Supply: Internal
• Number of 10Gb ports: None

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Intellinet
Parametry	Product weight with unit packaging	0.94 kg
Parametry	Number of ports	16
Parametry	Number of LAN (RJ-45) ports	1
Parametry	EAN (GTIN)	766623561068
Parametry	Manufacturer code	561068
Parametry	Packaging status	original
