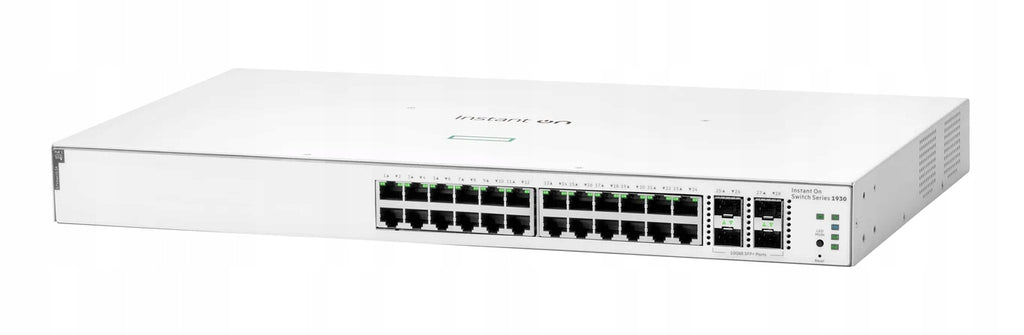

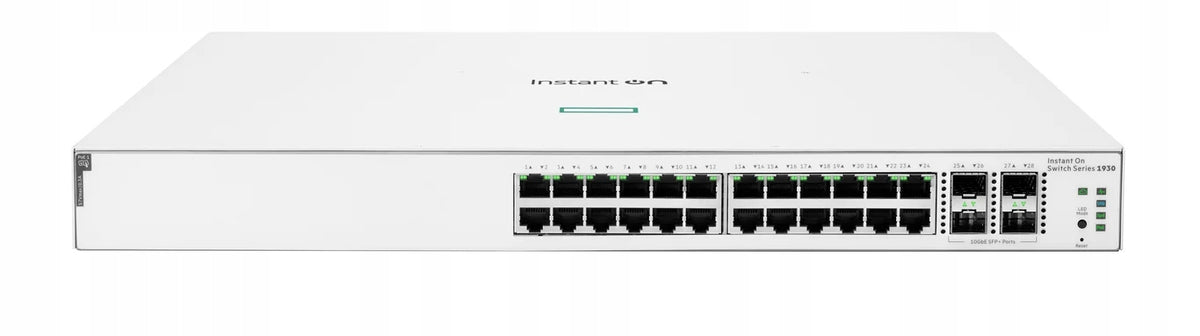

Tinklo jungiklis HPE Aruba Instant On 24 prievadų, Gigabit, CL4, PoE

Trumpai apie prekę

Prekė: Tinklo jungiklis HPE Aruba Instant On 24 prievadų, Gigabit, CL4, PoE. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: HP
• Modelis: JL683B

HPE Aruba Networking Networking Instant On Switch 24p Gigabit CL4 PoE 4p SFP+ 195W 1930. Switch type: Managed, Switch layer: L2/L3/L4. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 24. Full duplex. Address table size: 16000 inputs, Routing/switching throughput: 128 Gbit/s. Communication standards: IEEE 802.1D, IEEE 802.1Qaz, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE... PoE support. Rack Mount Capabilities, Layout: 1U

✏️ Key Technical Specifications:

• Data Transmission - Routing/Switching Throughput: 128 Gbit/s
• Data Transmission - Throughput: 95.23 Mpps
• Data Transmission - MAC Address Table Size: 16000 entries
• Data Transmission - Latency (10-100 Mbps): 4.7 μs
• Data Transmission - Latency (1 Gbps): 2.4 μs
• Data Transmission - Latency (10 Gbps): 1.3 μs
• Data Transmission - Jumbo Frames Support: Yes
• Data Transmission - Jumbo Frame Size: 9216 bytes
• Data Transmission - Packet Buffer Memory: 1.5 MB
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) Budget: 195 W
• Ports & Interfaces - Basic Switching RJ-45 Ethernet Ports Quantity: 24
• Ports & Interfaces - Basic Switching Ethernet RJ-45 Ports Type: Gigabit Ethernet (10/100/1000)
• Ports & Interfaces - SFP+ Module Slots Quantity: 4
• Processor - Built-in Processor: Yes
• Security - DHCP Features: DHCP client
• Security - Access Control List (ACL): Yes
• Security - IGMP Snooping: Yes
• Security - SSH/SSL Support: Yes
• Network - 10G Support: Yes
• Management Features - Switch Type: Managed
• Management Features - Switch Layer: L2/L3/L4
• Network - Networking Standards: IEEE 802.1D, IEEE 802.1Qaz, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Network - Power over Ethernet (PoE) Support: Yes
• Management Features - Quality of Service (QoS) Support: Yes
• Network - Port Mirroring: Yes
• Management Features - Web-based Management: Yes
• Management Features - Cloud Managed: Yes
• Network - Full Duplex: Yes
• Network - Flow Control Support: Yes
• Network - Link Aggregation: Yes
• Network - Rate Limiting: Yes
• Network - Auto MDI/MDI-X: Yes
• Network - Spanning Tree Protocol: Yes
• Network - Auto-sensing: Yes
• Management Features - ARP Inspection: Yes
• Network - VLAN Support: Yes
• Management Features - System Event Log: Yes
• Features - Memory Type: SDRAM / Flash
• Features - Processor Clock Speed: 800 MHz
• Features - Flash Memory Size: 256 MB
• Operating Conditions - Relative Humidity Range: 15 - 95%
• Operating Conditions - Operating Altitude: 0 - 3048 m (0 - 10000 ft)
• Operating Conditions - Relative Humidity Range: 15 - 95%
• Operating Conditions - Operating Temperature Range: 0 - 40 °C (32 - 104 °F)
• Operating Conditions - Storage Temperature Range: -40 - 70 °C (-40 - 158 °F)
• Internal Unit - Internal Memory Capacity: 512 MB
• Design - Rack Mountable: Yes
• Design - Product Color: White
• Design - Stackable: No
• Design - Form Factor: 1U
• Performance - Processor Model: ARM Cortex-A9
• Power - Power Source: AC
• Power - Maximum Power Consumption: 280 W
• Power - Power Supply Included: Yes
• Power - AC Input Frequency: 50 - 60 Hz
• Power - AC Input Voltage: 200 - 240 V
• Weight & Dimensions - Product Width: 43.9 mm
• Weight & Dimensions - Product Depth: 442.5 mm
• Weight & Dimensions - Product Height: 264.7 mm
• Weight & Dimensions - Product Weight: 3.49 kg
• Classification - Manufacturer Code: JL683B
• Classification - EAN: 0190017592893
• Classification - Product ID: 103114751
