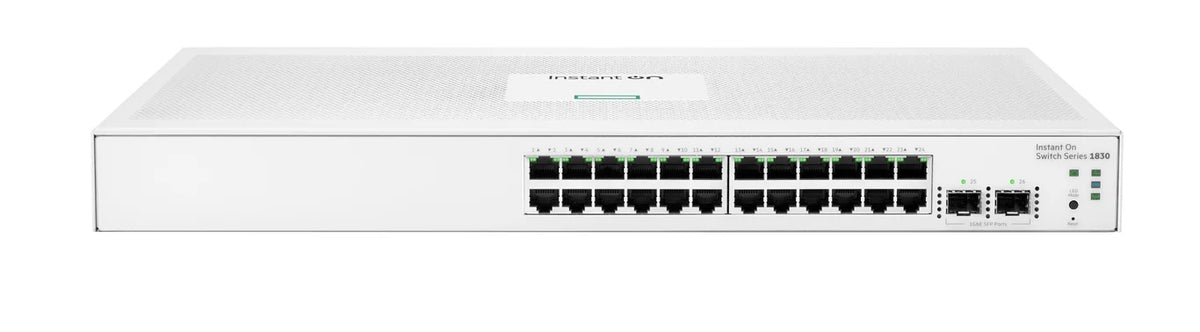

Tinklo jungiklis HPE Aruba Instant On, 24 Gigabit prievadai, 2 SFP

Trumpai apie prekę

Prekė: Tinklo jungiklis HPE Aruba Instant On, 24 Gigabit prievadai, 2 SFP. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: HP
• Modelis: JL812A

HPE Aruba Networking Networking Instant On Switch 24p Gigabit 2p SFP 1830. Switch Type: Managed, Switch Layer: L2. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 24. Full duplex. Address table size: 16000 inputs, Routing/switching throughput: 52 Gbit/s. Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ab, IEEE... Rack Mount Capabilities, Layout: 1U

✏️ Key Technical Specifications:

• Management Features - Switch Type: Managed
• Management Features - Switch Layer: L2
• Management Features - Quality of Service (QoS) Support: Yes
• Management Features - Web-based Management: Yes
• Management Features - Cloud Managed: Yes
• Management Features - System Event Log: Yes
• Data Transfer - Routing/Switching Capacity: 52 Gbit/s
• Data Transfer - Forwarding Rate: 38.68 Mpps
• Data Transfer - MAC Address Table: 16000 entries
• Data Transfer - Latency (10-100 Mbps): 5.2 μs
• Data Transfer - Latency (1 Gbps): 2.8 μs
• Data Transfer - Jumbo Frames Support: Yes
• Data Transfer - Jumbo Frames Extension: 9216
• Data Transfer - Packet Buffer Memory: 1.5 MB
• Security - DHCP Features: DHCP client
• Security - IGMP Snooping: Yes
• Security - SSH/SSL Support: Yes
• Power Over Ethernet (PoE) - PoE Support: No
• Features - Communication Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Features - Full Duplex: Yes
• Performance - Embedded Processor: Yes
• Performance - Processor Clock Speed: 800 MHz
• Performance - Memory Type: SDRAM
• Performance - Internal Memory: 512 MB
• Performance - Flash Memory: 256 MB
• Performance - Fanless: Yes
• Ports & Interfaces - Basic Switching RJ-45 Ethernet Ports Quantity: 24
• Ports & Interfaces - Basic Switching Ethernet RJ-45 Port Type: Gigabit Ethernet (10/100/1000)
• Ports & Interfaces - SFP Module Slot Quantity: 2
• Design - Form Factor: 1U
• Design - Rack Mounting: Yes
• Processor - Processor Model: ARM Cortex-A9
• Power - Power Adapter Included: Yes
• Power - Power Source: AC
• Power - Maximum Power Consumption: 7.8 W
• Power - Power Consumption: Maximum: 100-127V: 19.1W 200-220V: 19W; Idle: 100-127V: 7.6W 200-220V: 7.8W
• Power - AC Input Voltage: 100 - 240 V
• Power - AC Input Frequency: 50 - 60 Hz
• Operating Conditions - Operating Relative Humidity: 15 - 95%
• Operating Conditions - Storage Temperature Range: -40 - 70 °C
• Operating Conditions - Operating Temperature Range: 0 - 40 °C
• Operating Conditions - Relative Humidity Range: 15 - 95%
• Network - 10G Support: No
• Network - Port Mirroring: Yes
• Network - Flow Control Support: Yes
• Network - Link Aggregation: Yes
• Network - Auto MDI/MDI-X: Yes
• Network - Spanning Tree Protocol: Yes
• Network - Auto-detection: Yes
• Network - VLAN Support: Yes
• Dimensions & Weight - Product Width: 215.9 mm
• Dimensions & Weight - Product Height: 43.9 mm
• Dimensions & Weight - Product Depth: 443 mm
• Dimensions & Weight - Product Weight: 2.49 kg
• Logistics Data - Harmonized System (HS) Code: 85176990
• Other Features - Other Connections: 24 RJ-45 10/100/1000 ports, 2 SFP 1GbE ports
• Other Features - Memory & Processor: ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB
• Other Features - Management Features: HPE Networking Instant On Cloud; Web browser; SNMP Manager
• Other Features - Weight (Imperial): 2.49 kg (5.5 lbs)
• Classification - Manufacturer Part Number: JL812A#ABB
• Classification - EAN: 0190017518862
• Classification - Product ID: 96232626
