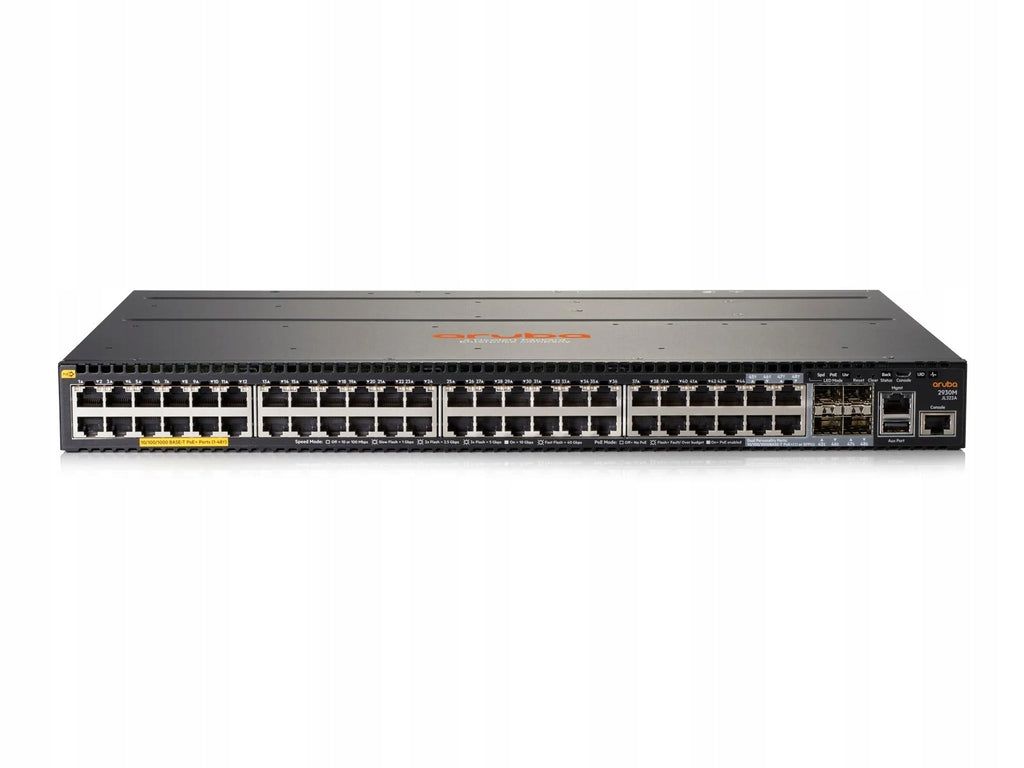

Tinklo jungiklis HPE Aruba 2930M 48G PoE+, 1 lizdas

Trumpai apie prekę

Prekė: Tinklo jungiklis HPE Aruba 2930M 48G PoE+, 1 lizdas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: HPE
• Modelis: Aruba 2930M 48G PoE+ 1-slot

EAN: 190017071251

SKU: JL322A

> Managed L3 Website management

> Service Quality of Service (QoS)

> Basic RJ-45 switching Number of Ethernet ports: 44

> Support 10G 10BASE-T, 100BASE-TX, 1000BASE-T

> Address table size: 32768 inputs Routing/switching throughput: 176 Gbit/s

> Access Control List (ACL)

> 1U Rack Mountable Stackable Product

> PoE support

HPE Aruba Networking 2930M 48G PoE+ 1-slot Switch. Switch Type: Managed, Switch Layer: L3. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 44. Full duplex. Address table size: 32768 inputs, Routing/switching throughput: 176 Gbit/s. Communication standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u. PoE support. Rack Mount Capabilities, Layout: 1U

Logistics data

• Harmonised system code (HS): 85176990

Other functions

• Memory and processor: Dual Core ARM Coretex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB and 4.5 MB Ingress, 7.785 Egress 4 GB eMMC

• Weight (imperial): 10.25 lb

• Delay: 1000 Mb Latency: < 3.1 µs 10 Gbps Latency: < 3.4 µs

• Dimensions (WxDxH) (imperial): 43,9 x 442,5 x 324,4

• Management functions: HPE Aruba Networking Management Software (AirWave) HPE Aruba Networking Central IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (RS-232C or micro USB series)

• Other connections: (44) RJ-45 autosensing 10/100/1000 PoE+ ports (4) Dual Personality 10/100/1000 BASE-T PoE+ or 100/1000 Mbps SFP Ports (1) uplink module slot, (1) stacking module slot

Weight and sizes

• Product weight: 4650 g

• Product height: 324.3 mm

• Product width: 43.9 mm

• Product depth: 442.5 mm

Power

• AC input frequency: 50/60 Hz

• Power Information: JL086A X372 54VDC 680W 100-240VAC Power Supply, JL087A X372 54VDC 1050W 110-240VAC Power Supply

• Power consumption: 470.0000

• Energy consumption: 2 power supplies are supported: JL086A PSU (each): 470W JL087A PSU (each): 860W

• AC input voltage: 200 - 240 V

Data transmission

• Package buffer memory: 12.38 MB

• Latency (10 Gbps): 3,4 µs

• Latency (1 Gbps): 3,1 µs

• Latency (10-100 Mbps): 11,8 µs

• Address table size: 32768 inputs

• Capacity: 112 Mpps

• Routing/switching throughput: 176 Gbit/s

Working conditions

• Temperature range (operation): 0 - 55

• Heat emission: 355 BTU/h

• Relative humidity range: 15 - 95

• Temperature range (storage): -40 - 70

Design

• Layout: 1U

• Stackable product: Yes

• Product color: Grey

• Frame mounting options: Yes

Network

• Automatic detection: Yes

• Connection aggregator: Yes

• Frequency limit: Yes

• Automatic MDI/MDI-X: Yes

• Spanning tree protocol: Yes

• VLAN support: Yes

• Full duplex: Yes

• IP forwarding: Yes

• Flow control support: Yes

• Copper Ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T

• Communication standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u

• Support 10G: Yes

Efficiency

• Embedded Processor: Yes

• Memory type: DDR3-SDRAM

• CPU clocking: 1016 MHz

• Internal storage capacity: 1024 MB

Ports and interfaces

• Number of SFP slots: 4

• Number of SFP Combo ports: 4

• Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)

• Basic RJ-45 switching Number of Ethernet ports: 44

Power over Ethernet (PoE)

• Total Power over Ethernet (PoE) budget: 1440.0000

• PoE support: Yes

Multicast Functions

• Multicast support: Yes

Protection

• Authentication: MAC-based authentication, Internet authentication

• supports SSH/SSL: Yes

• IGMP snooping: Yes

• Access Control List (ACL): Yes

• DHCP functions: DHCP server

Features of management

• Service Quality (QoS): Yes

• Website management: Yes

• Switch: L3

• Switch Type: Managed

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	HPE
Parametry	Number of ports	44
Parametry	EAN (GTIN)	190017071251
Parametry	Manufacturer code	Aruba 2930M 48G PoE+ 1-slot
