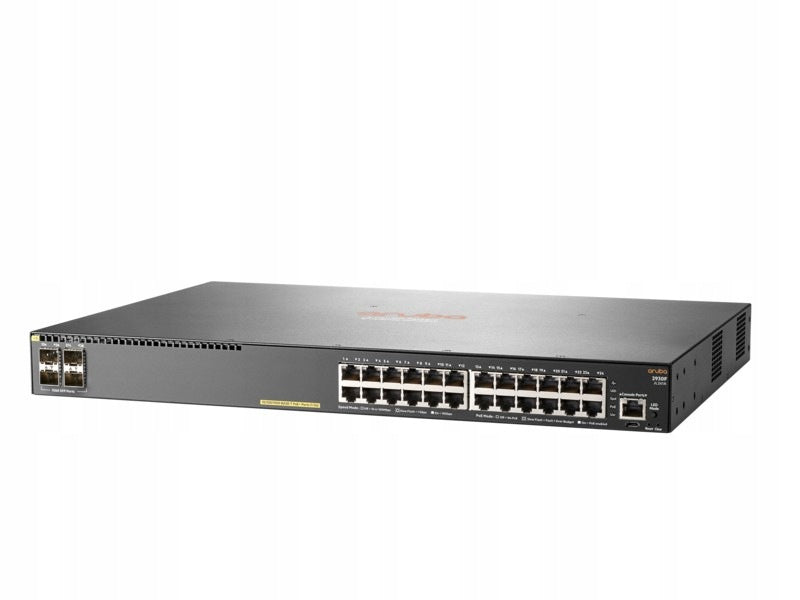

Tinklo jungiklis HPE Aruba 2930F 24 PoE+ prievadai, 4 SFP

Trumpai apie prekę

Prekė: Tinklo jungiklis HPE Aruba 2930F 24 PoE+ prievadai, 4 SFP. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: HPE
• Modelis: JL261A

EAN: 190017005515

SKU: JL261A

> Managed L3 Website management

> Service Quality of Service (QoS)

> Basic RJ-45 switching Number of Ethernet ports: 24

> 10BASE-T

> Address table size: 32768 inputs Routing/switching throughput: 56 Gbit/s

> Access Control List (ACL)

> 1U Rack Mountable Stackable Product

> Power adapter included PoE support

HPE Aruba Networking 2930F 24G PoE+ 4SFP Switch Switch Type: Managed, Switch Layer: L3. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 24. Full duplex. Address table size: 32768 inputs, Routing/switching throughput: 56 Gbit/s. Communication standards: IEEE 802.3, IEEE 802.3u. PoE support. Rack Mount Capabilities, Layout: 1U

Other functions

• Memory and processor: Dual Core Arm Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress 4 GB eMMC

• Weight (imperial): 8.6 lb

• Delay: 1000 Mb Latency: < 3.8 μs

• Dimensions (WxDxH) (imperial): 43,9 x 442,5 x 304,3

• Management functions: HPE Aruba Networking Management Software (AirWave) HPE Aruba Networking Central network management HPE IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (series R

• Other connections: 24x RJ-45 autosensing 10/100/1000 PoE+ ports 4x SFP

Weight and sizes

• Product height: 304.2 mm

• Product width: 43.9 mm

• Product depth: 442.5 mm

• Product weight: 3900 g

Power

• AC input frequency: 50 - 60 Hz

• Power supply included: Yes

• Energy consumption: 445W (maximum)

• AC input voltage: 200 - 240 V

• Maximum power consumption: 445.0000

Data transmission

• Package buffer memory: 12.38 MB

• Latency (1 Gbps): 3,8 µs

• Address table size: 32768 inputs

• Capacity: 41,7 Mpps

• Routing/switching throughput: 56 Gbit/s

Protocols

• IPv6 FIB entries: 5000

• IPv4 FIB: 10000

• Road Selection Protocol: IP

Working conditions

• Temperature range (operation): 0 - 45

• Heat emission: 258 BTU/h

• Relative humidity range: 15 - 95

• Temperature range (storage): -40 - 70

• Relative humidity allowed: 15 - 95

Design

• Layout: 1U

• Stackable product: Yes

• Product color: Black

• Frame mounting options: Yes

Network

• Automatic MDI/MDI-X: Yes

• Spanning tree protocol: Yes

• VLAN support: Yes

• Connection aggregator: Yes

• Automatic detection: Yes

• Frequency limit: Yes

• Routing position: 10000

• Full duplex: Yes

• IP forwarding: Yes

• Flow control support: Yes

• Copper Ethernet cabling technology: 10BASE-T

• Communication standards: IEEE 802.3, IEEE 802.3u

• Support 10G: No

Productivity

• Embedded Processor: Yes

• Memory type: DDR3-SDRAM

• CPU model: ARM Cortex-A9

• CPU clocking: 1016 MHz

• Internal storage capacity: 1024 MB

Ports and interfaces

• Number of SFP slots: 4

• Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)

• Basic RJ-45 switching Number of Ethernet ports: 24

Power over Ethernet (PoE)

• Total Power over Ethernet (PoE) budget: 370.0000

• PoE support: Yes

Multicast Functions

• Multicast support: Yes

Protection

• supports SSH/SSL: Yes

• IGMP snooping: Yes

• Access Control List (ACL): Yes

• DHCP functions: DHCP server

Features of management

• Service Quality (QoS): Yes

• Management by website: Yes

• Switch: L3

• Switch Type: Managed

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	HPE
Parametry	Product weight with unit packaging	3.9 kg
Parametry	Number of ports	24
Parametry	Number of LAN (RJ-45) ports	1
Parametry	EAN (GTIN)	190017005508
Parametry	Manufacturer code	JL261A
Parametry	Certificates of conformity	CE
