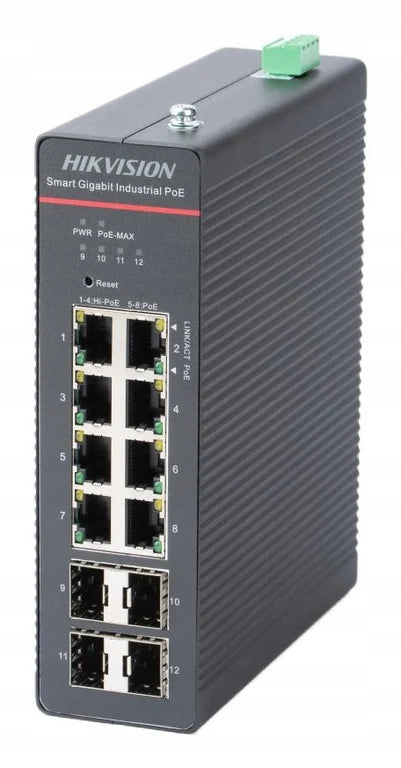

Tinklo jungiklis Hikvision DS-3T1512HP-SI-8P4F, gigabit, valdomas

Trumpai apie prekę

Prekė: Tinklo jungiklis Hikvision DS-3T1512HP-SI-8P4F, gigabit, valdomas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Hikvision
• Modelis: DS-3T1512HP-SI-8P4F/NOPOWER

Hikvision DS-3T1512HP-SI-8P4F. Switch Type: Managed. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 8. Optical Module Switch Type: Gigabit Ethernet. Address table size: 8000 inputs, Routing/switching throughput: 56 Gbit/s. Communication standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. DC input voltage: 48 - 57 V. Power connector: Terminal block (4-pin). PoE support

✏ The most important technical parameters:

• Working conditions - Relative humidity range: 5 - 95%
• Working conditions - Permissible relative humidity: 5 - 95%
• Working conditions - Temperature range (operation): -40 - 75 °C
• Working conditions - Temperature range (storage): -40 - 85 °C
• Power over Ethernet (PoE) - Number of Fast Ethernet (PoE) ports: 8
• Power supply via Ethernet (PoE) - Power supply via Ethernet (PoE) power supply per port: 30 W
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget: 300 W
• Features - Protection against sudden voltage increase: Yes
• Features - Power connector: Terminal block (4-pin)
• Features - Housing material: Metal
• Light - Optical Module Switch Type: Gigabit Ethernet
• Data transfer - Routing/switching bandwidth: 56 Gbit/s
• Data transfer - Forwarding speed: 41,66 Mpps
• Data transfer - Address table size: 8000 inputs
• Data transfer - Packet buffer memory: 4,1 MB
• Protection - Encryption / security: SNMP, SNMPv2
• Protection - DHCP functions: DHCP client, DHCP snooping
• Protection - protection against entering the loop: Yes
• Sustainability - Compliance with the principles of sustainable development: Yes
• Network - 10G support: No
• Network - Communication standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
• Network - Data transfer speed over Ethernet LAN: 1000 Mbit/s
• Network - Port duplication: Yes
• Network - Connection aggregator: Yes
• Network - Traffic increase control: Yes
• Network - Frequency limit: Yes
• Network - VLAN support: Yes
• Network - Virtual LAN functions: VLAN Identifier (VLAN ID)
• Network - Number of VLANs: 4094
• Construction - Rack mounting options: No
• Design - Colour of product: Black
• Design - Stackable product: No
• Design - LEDs: Yes
• Construction - DIN mounting on rail: Yes
• Performance - Power Protection Features: Surge Protection
• Performance - Without windmill: Yes
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 8
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Ports and interfaces - Number of Gigabit Ethernet ports: 8
• Ports and interfaces - Number of SFP slots: 4
• Management Features - Switch Type: Managed
• Management Features - Website Management: Yes
• Management Features - Service Quality Support (QoS): Yes
• Power - Power Source: DC
• Power - DC input voltage: 48 - 57 V
• Power - Power consumption: 7 W
• Power - Maximum power consumption: 307 W
• Power - PoE Support: Yes
• Power - Input current: 7.5 A
• Power - Protection against sudden voltage increase: 6 kV
• Protocols - IP Source Protection (IPSG): Yes
• Strength - IP rating: IP40
• Certificates - Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1:2014 (Second Edition)), CE-LVD (EN 62368- 1: 2014+A11: 2017)
• Weight and sizes - Product weight: 840 g
• Weight and sizes - Product width: 155 mm
• Weight and sizes - Product depth: 130 mm
• Weight and sizes - Product height: 46 mm
• Packaging data - Weight including packaging: 1,16 kg
• Content of the package - Quick Start Guide: Yes
• Technical details - Certificates of conformity: CB, Electromagnetic compatibility (EMC), Low Voltage Directive (LVD), REACH, RoHS, WEEE
• Classification - Manufacturer code: 301803311
• Classification - EAN: 301803311
• Classification - Product ID: 130716232
