Tinklo jungiklis Hikvision DS-3T0306HP, be maitinimo bloko

Trumpai apie prekę

Prekė: Tinklo jungiklis Hikvision DS-3T0306HP, be maitinimo bloko. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: 56612

269,32

56612

Hikvision DS-3T0306HP/No Power unit

Model: DS-3T0306HP/No Power unit

Technical specification

Housing

Metal, fanless design

Net weight

0,35 kg

Gross weight

0,915 kg

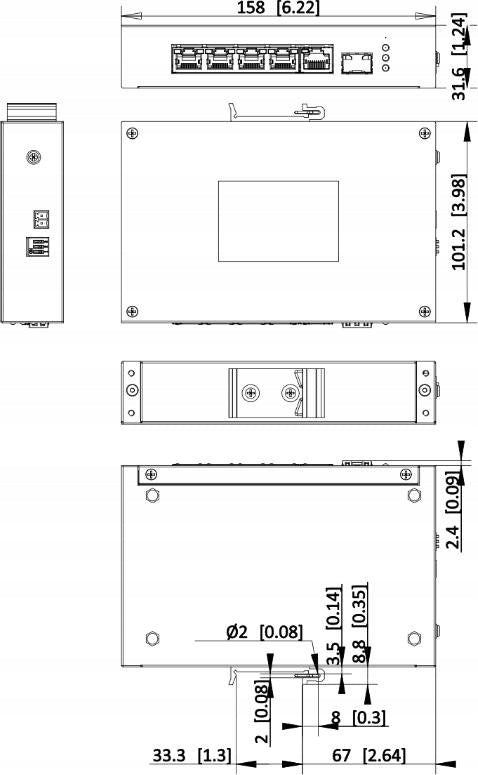

Dimensions (S × W × G)

158 × 101,2 × 31,6 mm

Operating temperature

-40 °C to 75 °C

Storage temperature

-40 °C to 85 °C

Operating humidity

5%-95% (non-condensing)

Relative humidity

5%-95% (non-condensing)

Power supply

48-57 VDC, 2.5 A

Max. power consumption

120 IN

Power consumption at rest

10 IN

Method of installation

DIN rail, desk mount

Surge protection

6 kV

Ports

4 × 10/100 Mbps PoE ports, 1 × Gigabit RJ45 port, 1 × Gigabit fiber port

MAC Address Table

4K

Switching bandwidth

4,8 Gbps

Packet forwarding speed

3,57 Mpps

Internal memory

1 Mbit

PoE power supply

PoE standard

IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

PoE power supply - pinout

1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE ports

Hi-PoE: port 1; PoE: ports 2-4

Max. power per port

30 IN

PoE capacity budget

110 IN

Functions

Long Range Mode

Ports 3-4: up to 300 m (depending on camera model and cabling quality)

Port isolation

Ports 1-4 can be isolated - no communication between them, communication possible with ports outside the group

PoE Watchdog

Ports 1-4: Automatic detection and restart of cameras that do not respond

Certificates

EMC

CE-EMC, IC, RCM

Security

CB, CE-LVD

Chemistry

CE-RoHS, WEEE, REACH
