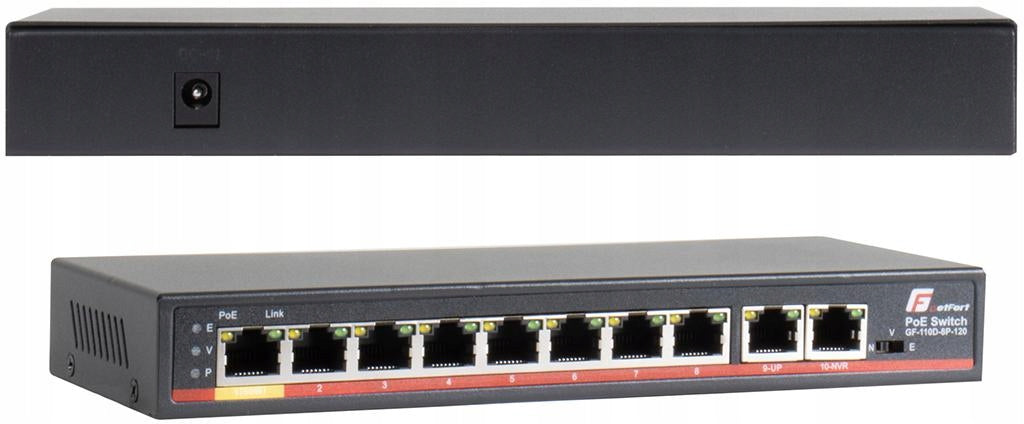

Tinklo jungiklis GETFORT, 8 PoE prievadai + 2 uplink, 120W PoE+

Trumpai apie prekę

Prekė: Tinklo jungiklis GETFORT, 8 PoE prievadai + 2 uplink, 120W PoE+. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: getfort
• Modelis: GF-210D-8P-120

THE MOST IMPORTANT FEATURES OF THE DEVICE:

• POE++ (60W) support on port 1
• 10 ports 100Mbps RJ45
• 8 PoE ports 802.3 af/at
• PoE support: up to 30W per port
• Power Supply: 52V/120W
• Long range PoE mode, up to 250m
• Support for VLAN port isolation
• Additional mounting brackets

PURPOSE OF THE SWITCH:

• Switch GetFort GF-110D-8P-120 enables up to 250m of data and power transmission range for monitoring systems.
• The high PoE budget makes the device ideal for small and medium-sized company monitoring systems.

GetFort

GetFort is one of the fastest growing brands of active and passive network devices. The offered products are characterized by high durability and precision, attractive design and innovative technical solutions. Our products are widely used in the construction of datacenter, alarm, CCTV and RTV systems.

EASE OF USE:

• The automatic functions of this switch make installation and operation easy and hassle-free.
• No configuration is required.
• Auto MDI / MDIX eliminates the need for patching.
• Automatic negotiation on each port detects the link speed of the network device (10,100 Mbps) and intelligently adapts to compatibility and optimal performance.

TRANSMISSION RANGE - up to 250m:

• Switch GetFort GF-110D-8P-120 is designed specifically for IP monitoring.
• Supports Long range mode which allows connection over a distance of up to 250m.
• Switch Getfort GF-110D-8P-120 is the perfect solution for deploying IP cameras over a large area.

STABILITY AND RELIABILITY:

• Switch GetFort GF-110D-8P-120 is a 10-port unmanaged 10/100Mbps switch that requires no configuration and provides 8 PoE ports.
• All 8 ports support automatic MDI/MDIX, which allows the use of any type of cable.
• Equipped with full duplex mode, the switch can process data at speeds up to 200 Mbps, making it an ideal choice for expanding your high-performance wired network.

HIGH POE+ POWER BUDGET AND ENERGY EFFICIENCY:

• The high budget of PoE makes the device ideal for small and medium-sized company monitoring systems.
• PoE+ technology based on the IEEE 802.3at protocol enables users to power peripheral devices with up to 30W of power, which allows them to transfer images from Full HD cameras in real time while maintaining full smoothness.
• PoE transmission via Cat5e / Cat6 cable allows you to supply power to peripheral devices at high data transfer rates (up to 100 Mbps).
• With its innovative energy-efficient technology, the switch saves up to 68% on energy consumption, making it an environmentally friendly solution.

OPERATING MODE VLAN:

• In VLAN mode, the switch enables logical separation of subnets by isolating ports.
• Hardware switch in V mode for isolating ports to prevent broadcast storms and protect against DHCP spoofing attacks.

PREVENT OVERLOADS!

• The switch has a priority function, thanks to which it protects the system in moments of overload.
• The power consumption of PoE-powered devices is up to 120W.
• Devices connected to higher priority ports are powered first.

SPECIFICATION AND TECHNICAL DATA:

• Interface: 10 ports 10/100Mbps RJ45
• Connection: 10/100BASE-TX: UTP cat.5 or higher (maximum 250m)
• PoE budget: 120W
• Power Supply: DC52V / 2.9A AC Adapter
• Ports: Standard: 802,3 af/at
• PoE: Port1-Port8
• Pins: 4/5(+), 7/8(-)
• Capacity: Ethernet 2 Gbps
• MAC address table size: 4000
• Package upload speed: 1.5 Mpps
• Buffer: 768 Kbps
• Jumbo frames: 10240B
• Dimensions: 197*75*30 mm
• Broadcasting method: Store-And-Forward
• Additional features: Priority function
• Automatic addressing of packets
• Full-duplex data flow control
• Half-duplex data bitrate control protocol on Ethernet.
• VLAN mode
• Long Range Function 250m
• Certificates: CE, FCC, RoHS
• Package Contents: Switch GetFort
• AC adapter
• Power cable
• Quick Start Guide
• Operating temperature range: -10°C~55°C
