Tinklo jungiklis GetFort 48 PoE, 2 SFP, 800W, gigabitinis

Trumpai apie prekę

Prekė: Tinklo jungiklis GetFort 48 PoE, 2 SFP, 800W, gigabitinis. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: getfort
• Modelis: 601296729

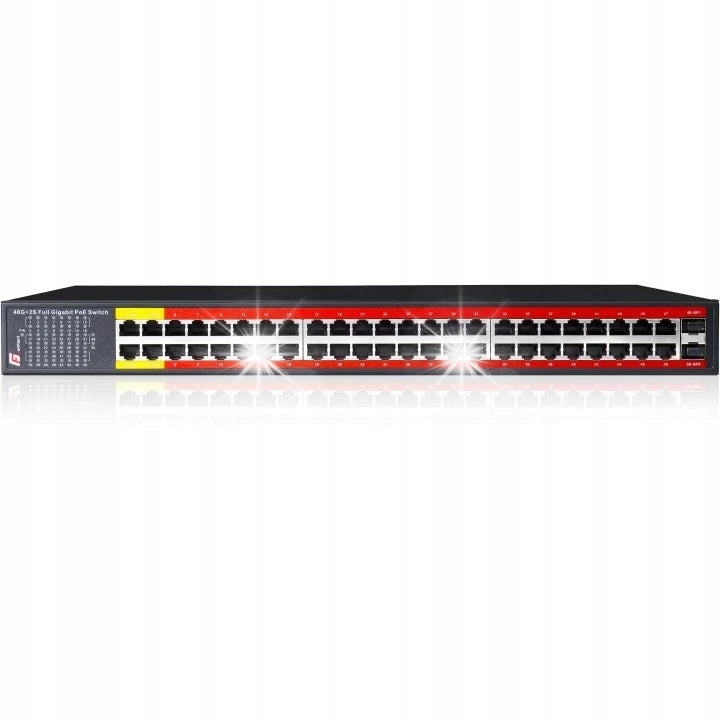

SWITCH POE GETFORT 48GE+2SFP Gigabit 800W

51383

Key features:

• 48 PoE Ethernet RJ45 100/1000 Mb/s ports
• 2 SFP 1.25Gbps ports
• Plug and play, zero configuration
• PoE support up to 30W per port
• Hi-PoE 60W (ports 1-4)
• Energy-efficient design compatible with IEEE802.3az
• PoE budget: 800W
• Standard 802.3af/at PoE+

GetFort

GetFort is one of the fastest growing brands of active and passive network devices. The offered products are characterized by high durability and precision, attractive design and innovative technical solutions. Our products are widely used in the construction of datacenter, alarm, CCTV and RTV systems.

Hi-PoE (High-Power over Ethernet) is an advanced feature available in Getfort switches that allows more electrical power to be transmitted than standard PoE. This is particularly useful for powering devices that require more power, such as high-resolution surveillance cameras or Wi-Fi access points. Here are some key points about Hi-PoE:

• High power: Hi-PoE enables higher power transmission, up to 60W per (1-4 ports) port, compared to standard PoE, which delivers up to 30W per port.
• Installation flexibility: With more power, Hi-PoE allows you to power even more demanding devices without the need for additional power supplies or power solutions.
• Enhanced compatibility: The Hi-PoE feature is compatible with PoE-enabled devices, making it easy to integrate with your existing network infrastructure.
• Optimal performance: With more power supply, devices connected to Hi-PoE ports can operate stably even in harsh environments, ensuring reliable network operation.

HIGH POE+ POWER BUDGET AND ENERGY EFFICIENCY:

• The high budget of PoE makes the device ideal for small and medium-sized company monitoring systems.
• PoE+ technology based on the IEEE 802.3at protocol allows users to power peripheral devices with power up to 60W* and a budget of up to 600W, which allows them to transfer images from Full HD cameras in real time while maintaining full smoothness.
• PoE transmission via Cat5e / Cat6 cable allows you to supply power to peripheral devices at high data transfer rates (up to 1000 Mbps).
• With its innovative energy-efficient technology, the switch saves up to 68% on energy consumption, making it an environmentally friendly solution.

*60W available on ports 1-4

TECHNICAL SPECIFICATION:

Network standard

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p

Interface

48 x 100/1000Mbps RJ45

2 x SFP 1.25Gbps

PoE ports

1-4 IEEE802.3 af/at/poe++/bt max 60W

5-48 IEEE802.3 af/at max 30W

PoE Pin

af/at: 12+ / 36-

af/at/poe++/bt: 12+ /45+ /36- / 78-

PoE Budget

800W

Connection

10BASE-T: UTP category 3, 4, 5 (max. 100m)

100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or higher (max. 100m)

Throughput

128 Gb

Packet transfer rate

74.4Mpps

MAC Address Table Size

8000

Power supply

AC : 110-240V

2 redundant power supplies

Buffer

4.1Mb

Jumbo frames

10240 Bytes

Port VLAN

Yes

Other

Certificates

CE, FCC, RoHS

505×375×95mm

Dimensions of the device

440×290×45mm

Weight

5.2kg

Weight of the device

4.5kg

Contents of the pack

1 × Gigabit Switch

1 × Power cable

1 × Quick Start Guide

1 x Rubber feet

1 x Rack Mounting Kit

Operating Temperatures

-10℃～55℃

Storage Temperatures

-40℃～70℃

Storage humidity range

10%～90%

Operating humidity range

5%～90%

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	getfort
Parametry	Number of ports	48
Parametry	EAN (GTIN)	5907949053072
Parametry	Manufacturer code	601296729
