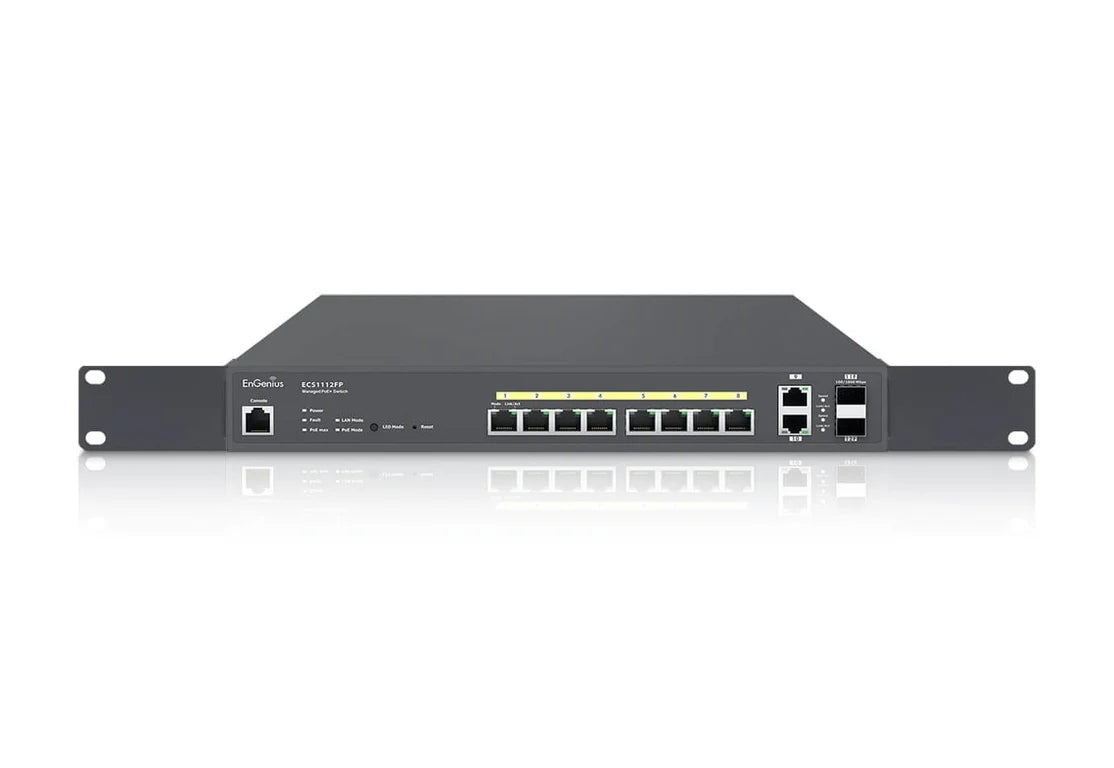

Tinklo jungiklis EnGenius ECS1112FP, valdomas, L2+, gigabitinis Ethernet

Trumpai apie prekę

Prekė: Tinklo jungiklis EnGenius ECS1112FP, valdomas, L2+, gigabitinis Ethernet. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: EnGenius
• Modelis: ECS1112FP

EnGenius ECS1112FP. Switch Type: Managed, Switch Layer: L2+. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 10. Full duplex. Address table size: 8000 inputs. Communication standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Possibilities of mounting in the frame

✏ The most important technical parameters:

• Data transfer - Address table size: 8000 inputs
• Data transfer - Compatible with Jumbo Frames: Yes
• Data transfer - Jumbo Frames extension: 9000
• Multicast Features - Multicast Support: Yes
• Multicast functions - Number of groups of filtered multicasts: 256
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget: 130 W
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 10
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Ports and interfaces - Number of SFP+ slots: 2
• Performance - Internal storage capacity: 256 MB
• Performance - Flash memory size: 32 MB
• Power - Power supply included: Yes
• Power - AC input voltage: 100 - 240 V
• Power - AC input frequency: 50 - 60 Hz
• Power - PoE Support: Yes
• Construction - Rack mounting options: Yes
• Protection - supports SSH/SSL: Yes
• Network - 10G support: No
• Network - Copper Ethernet cabling technology: 10BASE-T, 100BASE-T, 100BASE-TX, 1000BASE-T
• Network - Flow control support: Yes
• Network - Routing position: 192
• Network - Full duplex: Yes
• Network - Service Quality (QoS): Yes
• Network - Connection aggregator: Yes
• Network - Spanning tree protocol: Yes
• Features - Communication standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
• Features - Colour of product: Black
• Management Features - Switch Type: Managed
• Management features - Switch layer: L2+
• Management Features - Cloud Managed: Yes
• Management Features - Configuring Location Settings (CLI): Yes
• Management Features - System Event Report: Yes
• Working conditions - Relative humidity range: 5 - 95%
• Working conditions - Temperature range (operation): 0 - 50 °C
• Packaging data - Quick Start Guide: Yes
• Logistics data - Height of reference box (external): 314 mm
• Logistics data - Width of bulk box (external): 322 mm
• Logistics data - Gross weight of main housing (external): 9,4 kg
• Logistics data - Length of main box (external): 404 mm
• Logistics data - Net weight in multipack: 8,55 kg
• Logistics data - Harmonised system code (HS): 85176990
• Packaging data - Package width: 377 mm
• Packaging data - Package depth: 297 mm
• Packaging data - Package height: 100 mm
• Packaging data - Weight including packaging: 2,85 kg
• Logistics data - Products in main box (external): 3 pcs.
• Weight and sizes - Product width: 330 mm
• Weight and sizes - Product depth: 229 mm
• Weight and sizes - Product height: 44 mm
• Contents of the package - User Manual: Yes
• Other functions - Product weight: 1,9 kg
• Classification - Manufacturer code: ECS1112FP
• Classification - EAN: 4713361935299
• Classification - Product ID: 77969040
