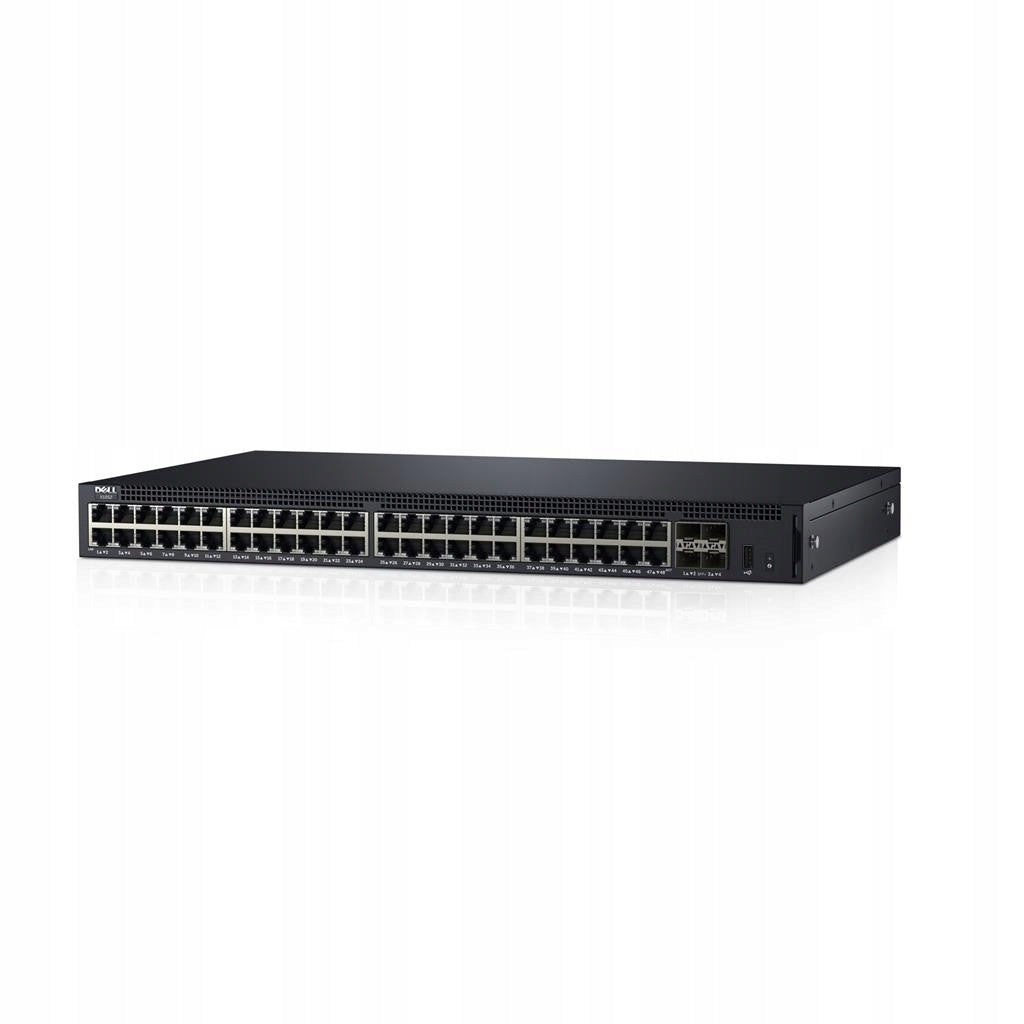

Tinklo jungiklis Dell Networking X1052 210-AEIO

Trumpai apie prekę

Prekė: Tinklo jungiklis Dell Networking X1052 210-AEIO. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Dell
• Modelis: 210-AEIO

TECHNICAL SPECIFICATIONS:

Management Features

Switch type: Managed

Switch layer: L2+

Quality of Service (QoS) support: Yes

Web-based management: Yes

System event log: Yes

MIB support: Yes

Ports & interfaces

Number of basic switching RJ-45 Ethernet ports: 48

Type of basic switching RJ-45 Ethernet ports: Gigabit Ethernet (10/100/1000)

Number of SFP+ module slots: 4

Network

Network standard: IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support: Yes

Flow control support: Yes

Link aggregation: Yes

Broadcast storm control: Yes

Auto MDI/MDI-X: Yes

Spanning tree protocol: Yes

VLAN support: Yes

Number of VLANs: 4096

Data Transmission

Switching capacity: 176 Gbit/s

Throughput: 131 Mpps

MAC address table: 16000 entries

Number of queues: 8

Jumbo Frames support: Yes

Packet buffer memory: 1 MB

Security

DHCP features: DHCP server, DHCP client

Access Control List (ACL): Yes

IGMP snooping: Yes

Static port security: Yes

Multicast features

Multicast support: Yes

Protocols

Management protocols: SNMPv1, SNMPv2, SNMPv3, SMIv1, SMIv2, IGMPv1, IGMPv2, IGMPv3

Design

Rack mounting: Yes

Form factor: 1U

Product colour: Black

LED indicators: Yes

Number of fans: 2 fan(s)

Performance

Noise level: 56.7 dB

Energy Management

Output power: 100 W

Power consumption (max): 75 W

Heat dissipation: 256 BTU/h

Weight & Dimensions

Width: 434 mm

Depth: 270 mm

Height: 43.5 mm

Weight: 3.8 kg

A good alternative to the currently missing Dell N1548 model

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Dell
Parametry	Number of ports	52
Parametry	EAN (GTIN)	5397063769117
Parametry	Manufacturer code	210-AEIO
