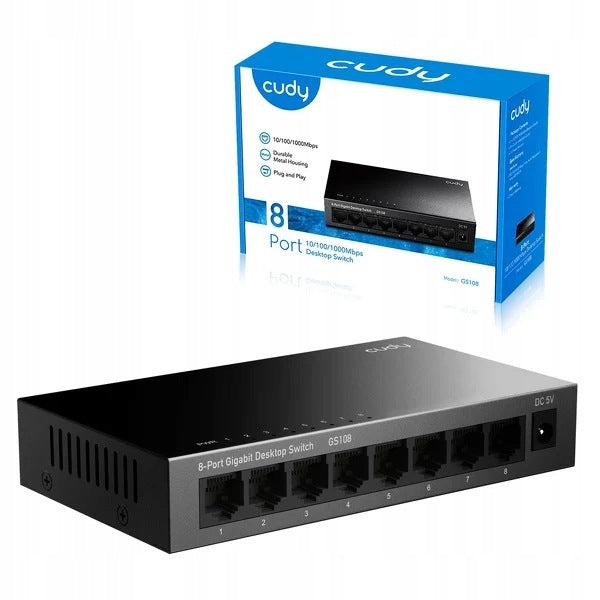

Tinklo jungiklis CUDY GS108, 8 prievadų, gigabitinis, metalinis korpusas, VLAN

Trumpai apie prekę

Prekė: Tinklo jungiklis CUDY GS108, 8 prievadų, gigabitinis, metalinis korpusas, VLAN. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Cudy
• Modelis: GS108

Seamless expansion of home and corporate networks

Key features:

• 8-Port Gigabit Switch
• Desk Enclosure for Easy Installation
• Non-blocking architecture for fast transfer
• Auto-MDI/MDIX cable detection
• VLAN mode for network traffic isolation
• 8 Gigabit Ethernet ports
• 1 Gbps bandwidth on each port
• RJ-45 auto-negotiation to adjust speed
• Support for Full Duplex and Half Duplex
• Automatic detection of network loops
• Connecting multiple devices in your home or office
• Possibility of expanding Wi-Fi networks
• Connecting phones and VoIP devices
• Expansion of the surveillance system by IP cameras
• Extend mode for an extended range of up to 250 metres

Network expansion without complications

The Cudy 8p GS108 Switch is a reliable desktop device that allows you to easily expand your home or business network. With eight gigabit Ethernet ports, this switch ensures efficient connection of multiple devices, from computers to smartphones.

High throughput and stability

The GS108 offers gigabit performance with up to 1 Gbps of bandwidth on each port. Thanks to auto-negotiation technology, ports automatically adjust the data transfer speed to connected devices. The non-blocking architecture guarantees smooth data transfer even under heavy network load.

Advanced network traffic management

VLAN mode in the Cudy GS108 network switch allows for efficient management of network traffic and isolation between individual ports. This allows the user to increase network security by segregating traffic between different segments.

Flexibility in connecting devices

The eight Ethernet ports allow you to connect a variety of devices, including Wi-Fi access points, VoIP phones, and IP cameras. Extend mode allows you to increase the distance of signal transmission over Ethernet twisted pair up to 250 meters, which is especially useful in larger spaces.

Specification:

• Housing Type: Desk
• Access: Web browser (GUI)
• Network Architecture: Gigabit Ethernet
• Total number of ports: 8
• Connectors: RJ-45 10/100/1000 Mbps - 8 pcs.
• Power over Ethernet (PoE): no PoE
• Supported standards: IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 ab
• MAC Board Size: 1 k
• Jumbo frame: 2,000 B
• Switching algorithm: Store-and-forward
• Packet redirection speed: 11,9 Mbps
• Bandwidth: 16 Gbps
• Memory buffer: 2,5 MB
• MTBF: 100 000 h
• Additional information: automatic port patching (Auto MDI-MDIX), automatic connection speed negotiation, half and full-duplex operation, VLAN
• Dimensions: 25 x 137 x 77 mm
• Weight: 0,30 kg
• Included Accessories: Power Supply
