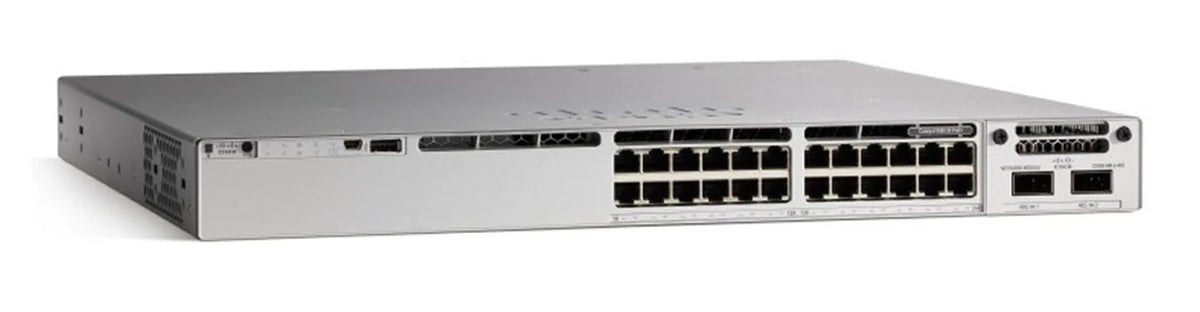

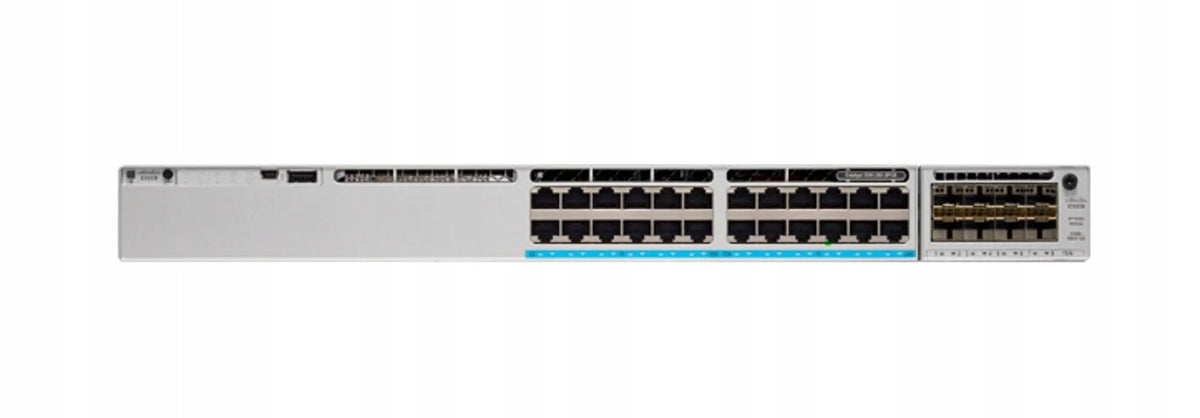

Tinklo jungiklis Cisco Catalyst C9300-24UX-A, valdomas, L2/L3, 10G

Trumpai apie prekę

Prekė: Tinklo jungiklis Cisco Catalyst C9300-24UX-A, valdomas, L2/L3, 10G. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Cisco
• Modelis: C9300-24UX-A

Cisco Catalyst C9300-24UX-A. Switch type: Managed, Switch layer: L2/L3. Basic RJ-45 Ethernet Switching Ports Type: 10G Ethernet (100/1000/10000), Basic RJ-45 Switching Number of Ethernet Ports: 24, Number of USB 2.0 Ports: 1. Full duplex. Address table size: 32000 inputs, Routing/switching throughput: 640 Gbit/s. Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE... PoE support. Rack Mount Capabilities, Layout: 1U

✏️ Key Technical Specifications:

• Data Transfer - Routing/Switching Capacity: 640 Gbit/s
• Data Transfer - Forwarding Rate: 476.19 Mpps
• Data Transfer - MAC Address Table Size: 32000 entries
• Data Transfer - Jumbo Frames Support: Yes
• Data Transfer - Jumbo Frames Extension: 9198
• Data Transfer - Packet Buffer Memory: 32 MB
• Multicast Features - Multicast Support: Yes
• Multicast Features - IPv4 Multicast Entries: 32000
• Multicast Features - IPv6 Multicast Entries: 16000
• Protocols - Routing Protocol: BGP, EIGRP, HSRP, IS-IS, OSPF, RIP
• Protocols - Virtual Router Redundancy Protocol (VRRP): Yes
• Operating Conditions - Operating Temperature Range: -5 - 40 °C
• Operating Conditions - Storage Temperature Range: -40 - 70 °C
• Operating Conditions - Operating Relative Humidity: 5 - 90%
• Operating Conditions - Non-operating Relative Humidity: 5 - 90%
• Operating Conditions - Operating Altitude: 0 - 3000 m
• Security - DHCP Features: DHCP snooping
• Security - Access Control List (ACL): Yes
• Ports & Interfaces - Basic Switching RJ-45 Ethernet Ports Quantity: 24
• Ports & Interfaces - Basic Ethernet Switching RJ-45 Ports Type: 10G Ethernet (100/1000/10000)
• Ports & Interfaces - USB 2.0 Ports Quantity: 1
• Network - 10G Support: Yes
• Network - Encryption/Security: 128-bit AES, 256-bit AES
• Network - Cable Types Supported: Cat5e, Cat6, Cat6a
• Network - Full Duplex: Yes
• Network - Flow Control Support: Yes
• Network - Traffic Control: Yes
• Network - Spanning Tree Protocol: Yes
• Network - Multiprotocol Label Switching (MPLS): Yes
• Network - VLAN Support: Yes
• Network - Virtual LAN Features: Private VLAN
• Network - VLANs Quantity: 4094
• Design - Rack Mounting Capability: Yes
• Features - Communication Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Design - Form Factor: 1U
• Design - Stackable Product: Yes
• Features - PoE Support: Yes
• Features - Total Power over Ethernet (PoE) Budget: 560 W
• Design - Product Color: Gray
• Features - Device Software Updates: Yes
• Features - Safety Standards: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3
• Features - Plug & Play Support: Yes
• Performance - LED Indicators: Yes
• Performance - Flash Memory Size: 16000 MB
• Performance - Built-in Processor: Yes
• Management Features - Switch Type: Managed
• Management Features - Switch Layer: L2/L3
• Management Features - Quality of Service (QoS) Support: Yes
• Management Features - ARP Inspection: Yes
• Weight & Dimensions - Product Weight: 8.25 kg
• Weight & Dimensions - Product Height: 44 mm
• Weight & Dimensions - Product Width: 445 mm
• Weight & Dimensions - Product Depth: 434 mm
• Logistics Data - Harmonized System (HS) Code: 85176990
• Other Features - MTBF (Mean Time Between Failures): 214760 h
• Other Features - EMC Standards: 47 CFR Part 15, CISPR22 Class A, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032 Class A, CISPR 32 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, TCVN 7189 Class A, V-3 Class A, CISPR24, EN 300 386, EN55024, TCVN 7317
• Technical Details - Zero Touch Provisioning (ZTP): Yes
• Classification - Manufacturer Code: C9300-24UX-A
• Classification - EAN: 0889728051644
• Classification - Product ID: 37303738
