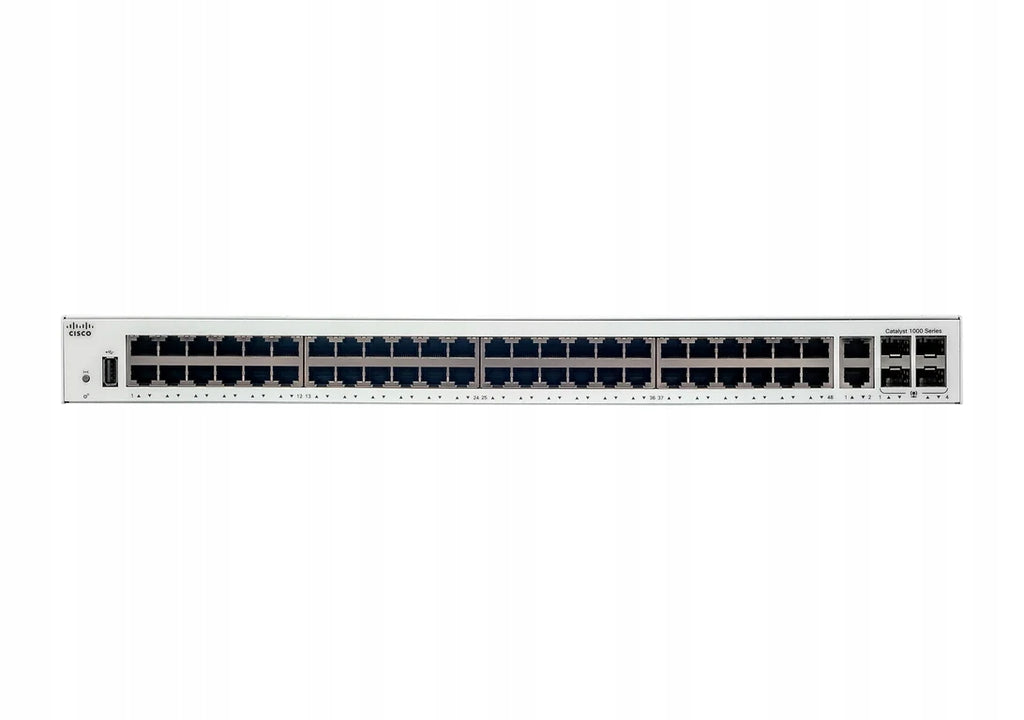

Tinklo jungiklis Cisco Catalyst C1000-48T-4G-L, valdomas, 48 prievadų, L2

Trumpai apie prekę

Prekė: Tinklo jungiklis Cisco Catalyst C1000-48T-4G-L, valdomas, 48 prievadų, L2. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Cisco
• Modelis: C1000-48T-4G-L

Cisco Catalyst C1000-48T-4G-L. Switch type: Managed, Switch layer: L2. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 48, Number of USB 2.0 Ports: 1, Console Port: RJ-45/Mini-USB. Full duplex. Address table size: 16000 inputs, Routing/switching throughput: 104 Gbit/s. Communication standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE...

✏️ Key Technical Specifications:

• Data Transfer - Routing/Switching Capacity: 104 Gbps
• Data Transfer - Forwarding Rate: 77.38 Mpps
• Data Transfer - MAC Address Table: 16000 entries
• Data Transfer - Static Route Count: 16
• Data Transfer - Jumbo Frames Support: Yes
• Data Transfer - Jumbo Frames Extension: 10240
• Multicast Features - Multicast Support: Yes
• Multicast Features - IPv4 Multicast Entries: 1024
• Multicast Features - IPv6 Multicast Entries: 1024
• Processor - Processor Model: ARM7
• Computer System - Embedded Processor: Yes
• Performance - Market Segment: Business
• Performance - Product Color: Gray
• Management Features - Switch Type: Managed
• Management Features - Switch Layer: L2
• Management Features - Web-based Management: Yes
• Performance - Processor Clock Speed: 800 MHz
• Performance - Access Control List (ACL): Yes
• Management Features - Traffic Classification: Yes
• Management Features - ARP Inspection: Yes
• Management Features - Command Line Interface (CLI) Configuration: Yes
• Performance - Internal Memory: 512 MB
• Performance - Flash Memory Size: 256 MB
• Management Features - MIB Support: Yes
• Performance - Country of Origin: China
• Performance - MTBF (Mean Time Between Failures): 1,452,667 hours
• Protection - DHCP Features: DHCP snooping
• Protection - IGMP snooping: Yes
• Protection - IGMP Entries: 1024
• Protection - SSH/SSL Support: Yes
• Protection - Authentication Type: RADIUS
• Protection - Loop Prevention: Yes
• Protection - BPDU Filtering / Protection: Yes
• Protection - Authentication: Web Authentication
• Ports & Interfaces - Basic Switching RJ-45 Ethernet Port Quantity: 48
• Ports & Interfaces - Basic Switching Ethernet RJ-45 Port Type: Gigabit Ethernet (10/100/1000)
• Ports & Interfaces - SFP Module Slot Quantity: 4
• Ports & Interfaces - Console Port: RJ-45/Mini-USB
• Ports & Interfaces - USB 2.0 Port Quantity: 1
• Features - Quantity Per Pack: 1 pc.
• Features - Communication Standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Features - Memory Type: DRAM
• Features - LED Indicators: Yes
• Network - 10G Support: No
• Network - Auto MDI/MDI-X: Yes
• Network - Ethernet LAN Data Transfer rate: 10,100,1000 Mbit/s
• Network - Static Route: Yes
• Network - Full Duplex: Yes
• Network - Quality of Service (QoS) Support: Yes
• Network - Link Aggregation: Yes
• Network - Traffic Control: Yes
• Network - Spanning Tree Protocol: Yes
• Network - Auto-Negotiation: Yes
• Network - VLAN Support: Yes
• Network - VLAN Quantity: 256
• Package Data - Package Width: 390.7 mm
• Package Data - Package Depth: 549.4 mm
• Package Data - Package Height: 147.6 mm
• Package Data - Package Weight: 5.75 kg
• Weight & Dimensions - Product Width: 444.5 mm
• Weight & Dimensions - Product Depth: 272.5 mm
• Weight & Dimensions - Product Height: 43.9 mm
• Weight & Dimensions - Product Weight: 3.95 kg
• Protocols - Management Protocols: SNMP
• Power - Power Consumption: 30.32 W
• Power - Maximum Power Consumption: 33.6 W
• Power - PoE Support: No
• Power - AC Input Voltage: 110 - 220 V
• Power - AC Input Frequency: 50 - 60 Hz
• Logistics Data - Harmonized System (HS) Code: 85176990
• Power - Power Plug Type: Type C
• Logistics Data - Products per Inner Carton: 1 pc.
• Logistics Data - Products per Master (Outer) Case: 1 pc.
• Operating Conditions - Relative Humidity Range: 5 - 90%
• Operating Conditions - Operating Temperature Range: -5 - 50 °C
• Operating Conditions - Storage Temperature Range: -25 - 70 °C
• Operating Conditions - Operating Altitude: 0 - 3000 m
• Operating Conditions - Allowable Relative Humidity: 5 - 95%
• Operating Conditions - Allowable Altitude: 0 - 4500 m
• Classification - Manufacturer Code: C1000-48T-4G-L
• Classification - EAN: 0889728248563
• Classification - Product ID: 76924522
