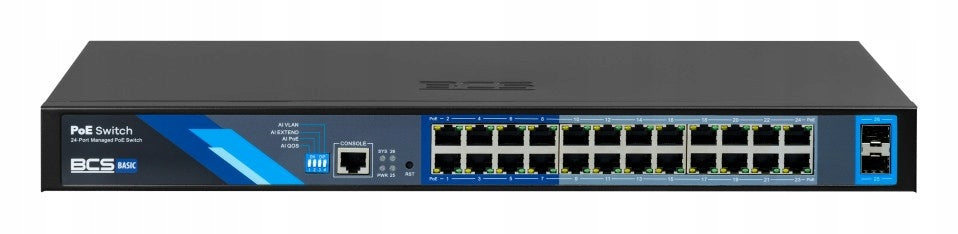

Tinklo jungiklis BCS-B-SP24G-2SFP-M, valdomas, 24 POE prievadai

Trumpai apie prekę

Prekė: Tinklo jungiklis BCS-B-SP24G-2SFP-M, valdomas, 24 POE prievadai. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: BCS
• Modelis: 1433

24 port switch (24x PoE) BCS-B-SP24G-2SFP-M (manageable) 1000Mb/s + 2x Gigabit SFP with 4 operating modes.

• 24 port managed PoE switch
• 4 operating modes: AI VLAN, AI EXTEND, AI PoE, AI QoS
• Maximum power up to 46W for single PoE port, total power 150W
• 24 PoE ports 1000Mbps
• IEEE802.3 af/at standard
• 2 Gigabit SFP Fiber Optic Ports
• RJ45 port of management console
• Built-in web-service
• MDI/MDIX function
• Transmission up to 250m
• Function of VLAN
• Reset button
• Metal housing with built-in fan
• 6KV surge protection
• Power supply 100~240V AC

system info, global info, statistic info, log info,port manage, port config, port isolate, port mirror,port limit, storm control, port energy saving, poe manage,poe port config, device power supply, timing supply config,poe ai config, layer2 manage, mac address table, vlan config,link aggregation, mstp config, loop protection, dhcp snooping,igmp snooping, 802.1x config, advanced manage, qos config,acl config, snmp config, rmon config, lldp config, ntp settings,anti attack, system manage, user settings, network settings,service settings, config management, firmware upgrade,diagnostics test, restart system

AI VLAN - function isolates ports 1-16. Devices connected to these ports cannot see each other. Uplink ports can communicate with ports 1-16.

AI Extend - the function limits the speed of ports 1-8 to 10 Mbps, thanks to which it is possible to power and transmit data over a distance of up to 250 meters.

AI PoE - the function enables monitoring of pairs of wires supplying power to the device. If an anomaly is detected, the switch turns off the port power and after a while turns on again.

AI QoS - Enabling features gives high upload priority to packets containing a video header. The switch sends them first. Thanks to this, the transmitted stream remains fluid.

• Ports: 16x RJ45 PoE 1000Mbps + 2 x Gigabit SFP
• Transfer: 10/100/1000Mb/s half-duplex, full-duplex, auto-negotiation
• Standard: IEEE 802.3i IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at
• Package forwarding: 23.8Mpps
• Capacity: 36Gb/s
• Maximum power: 46W for single PoE port (150W total power)
• AI VLAN mode: Ports 1-16 are isolated from each other
• AI EXTEND mode: Ports 1-8 support transmission up to 250m (cat5e, cat6) with 10Mbps bandwidth
• AI QOS mode: Quality Of Service - prioritization of video packages
• AI PoE mode: Monitoring the ports that power PoE devices and automatically restart by cutting off the power when detecting an unresponsive device
• LED status: PWR(constant red): switch power supply connected, LINK/ACT(green): connected device, PoE(yellow): PoE powered device, SYS(green flashing): System works properly
• PoE pin: 1,2(+); 3,6(-)
• Login: 192.168.254.1 admin:admin
• Power supply: 100~240V AC 50/60Hz
• Working conditions: 0°~40°C, 10%~90%RH
• Dimensions: 440x180x44mm

• original product of the brand BCS
• instantly you will receive the purchased device
• full support during selection and commissioning
• If you have any doubts, we will be happy to advise and help
