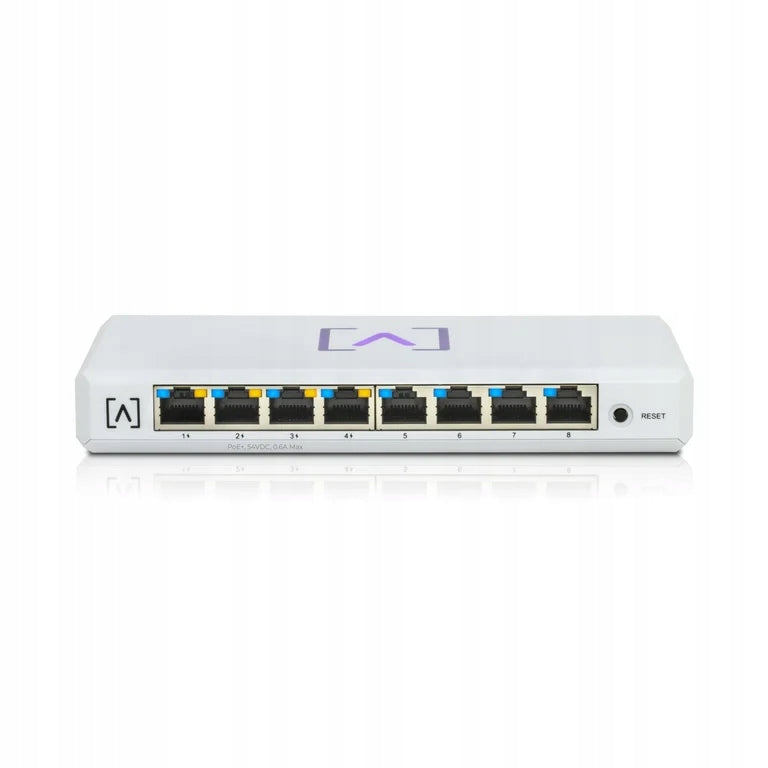

Tinklo jungiklis Alta Labs S8-POE, 8 PoE gigabitų prievadai, valdomas

Trumpai apie prekę

Prekė: Tinklo jungiklis Alta Labs S8-POE, 8 PoE gigabitų prievadai, valdomas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: S8-POE

Alta Labs S8-POE. Switch Type: Managed. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 8. Address table size: 8000 inputs, Routing/switching throughput: 16 Gbit/s. Communication standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at. DC input voltage: 54 V. Power connector: DC-in jack. PoE support. Wall Mount / Ceiling Projection

✏ The most important technical parameters:

• Network - 10G support: No
• Network - Auto-Negotiation: Yes
• Network - Frequency limit: Yes
• Network - Automatic detection: Yes
• Network - Active call search: Yes
• Network - VLAN support: Yes
• Network - Virtual LAN Features: Stacked VLAN
• Performance - Without windmill: Yes
• Performance - Certificates: CE, FCC, IC
• Management Features - Switch Type: Managed
• Management Features - Managed in the Cloud: Yes
• Ergonomics - Wall mounting / ceiling projection: Yes
• Package Contents - Cables: AC, DC
• Content of the package - Quick Start Guide: Yes
• Content of the package - User Manual: No
• Content of the package - User Guide: No
• Features - Data transfer rate over Ethernet LAN: 10,100,1000 Mbit/s
• Features - Communication standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
• Features - Voltage: 54 V
• Features - Service Quality Service (QoS): Yes
• Features - Device Software Updates: Yes
• Protection - IGMP snooping: Yes
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 8
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Data transfer - Routing/switching bandwidth: 16 Gbit/s
• Data transfer - Performance: 8 Gbit/s
• Data transfer - Forwarding speed: 11900 Mpps
• Data transfer - Address table size: 8000 inputs
• Data transfer - Packet buffer memory: 4,1 MB
• Ports and interfaces - Power connector: DC-in jack
• Power - Power Source: DC
• Power - Number of power units: 1
• Power - AC input voltage: 100 - 240 V
• Power - AC input frequency: 50/60 Hz
• Power - Input current: 1.3 A
• Power - DC input voltage: 54 V
• Power - Power consumption: 8 W
• Power - Maximum power consumption: 68 W
• Power - PoE Support: Yes
• Design - Colour of product: White
• Design - Stackable product: No
• Multicast Features - Multicast Support: Yes
• Construction - Housing material: Plastic
• Design - Reset button: Yes
• Design - LEDs: Network, PoE
• Power Supply - Power Supply Included: Yes
• Power over Ethernet (PoE) - Supported Power over Ethernet (PoE) type: Active PoE
• Power over Ethernet (PoE) - Power over Ethernet Plus (PoE+) number of ports: 4
• Weight and sizes - Product width: 180 mm
• Power supply via Ethernet (PoE) - Power supply via Ethernet (PoE) power supply per port: 30 W
• Weight and sizes - Product depth: 91 mm
• Weight and sizes - Product height: 25,7 mm
• Weight and sizes - Product weight: 380 g
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget: 60 W
• Packaging data - Hook mounting kit: No
• Packaging data - Packaging type: Box
• Working conditions - Relative humidity range: 10 - 90%
• Working conditions - Temperature range (operation): -5 - 50 °C
• Classification - Manufacturer code: S8-POE
• Classification - EAN: 845882005541
• Classification - Product ID: 113355900
