Tinklo ilgintuvas su 4 PoE, Uplink, SFP, PD funkcija

Trumpai apie prekę

Prekė: Tinklo ilgintuvas su 4 PoE, Uplink, SFP, PD funkcija. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: EXGF-411-POE

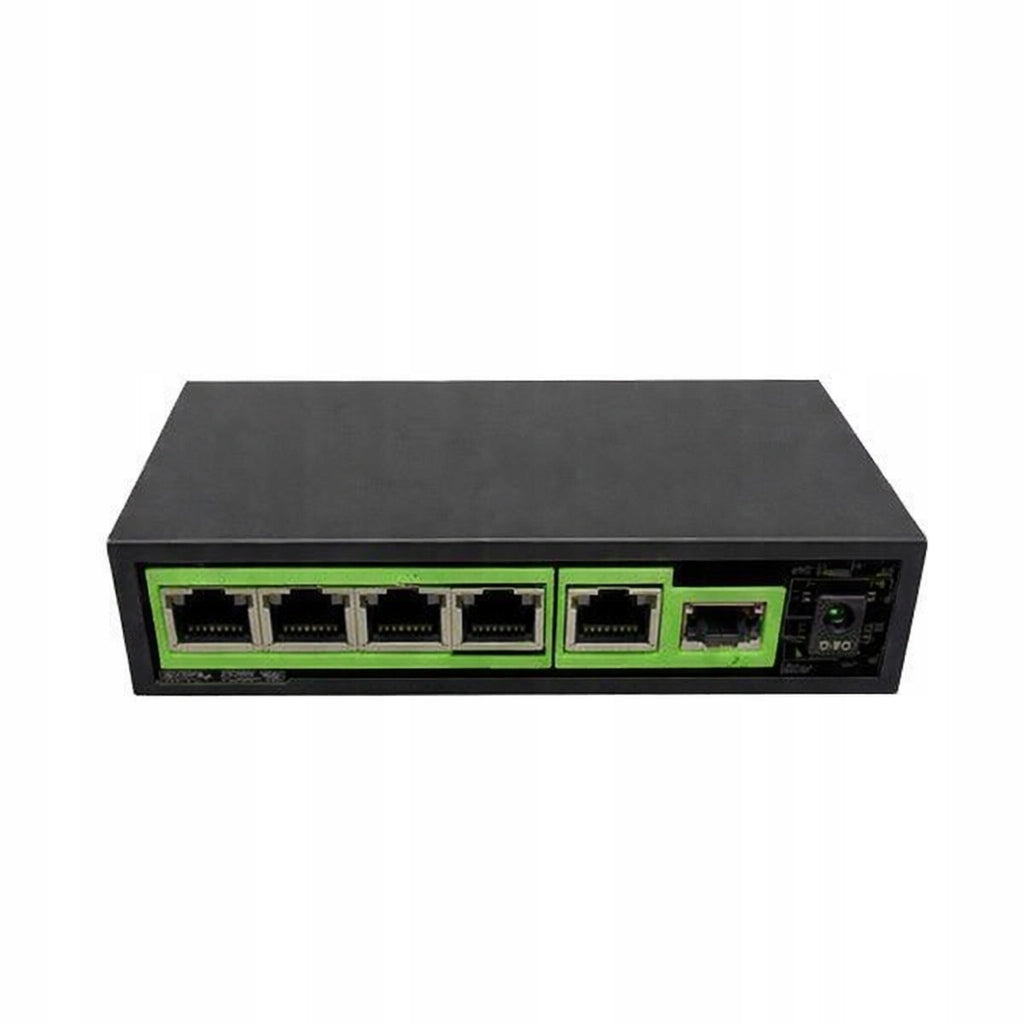

The EXGF-411-POE is a smart gigabit 4-port PoE network extender with 1 Uplink port and 1 SFP port with a total power of 60W, supporting High Power 60W (at/af/bt) on one of the ports.

It provides high lossless 12Gbps bandwidth for lightning-fast data transfer over distances of up to 130m over a 10/100/1000Mbps Gigabit Ethernet network.

The device is equipped with the AI Watchdog function with automatic detection and automatic restart. The switch can be powered from an external 48-52VDC power supply or via PoE (PD Power Receivin function).

Thanks to PoE technology, the switch not only facilitates network connections, but also reduces installation costs, eliminating the need for a separate power cable for each device.

In addition to cameras, the switch can also power other network devices, such as IP phones, access points or routers that use this technology.

MAIN FEATURES :

• Total power budget 60W
• 4 PoE ports
• 1 Uplink port
• 1 SFP port
• AI Watchdog Function
• 6KV lightning protection and 8KV electrostatic discharge protection
• Support up to 60W High Power
• 48/52VDC power supply or via PoE (PD Power Receivin)

TECHNICAL SPECIFICATION

Ports

• PoE 1-3: 10/100/1000Mb/s (RJ45 PoE)
• PoE 4: 10/100/1000Mbps (RJ45 PoE with 60W High Power support)
• LAN: 10/100/1000Mbps (RJ45 Uplink)
• SFP: 10/100/1000Mb/s

Transmission speed

• 2000 Mbps Full Duplex (simultaneous communication in both directions)
• 1000 Mbps Half Duplex (alternating communication in both directions)
• 100 Mbps Half Duplex (alternating communication in both directions)
• 10 Mbps Half Duplex (alternating communication in both directions)

Transmission distance

• 130m for 10Mbps
• 130m for 100Mbps
• 130m for 1000Mbps
• Maximum Cascade: 2-4x

Performance specification

• Bandwidth: 12 Gbps
• Network latency (10/100/1000 Mbps): ≤16μs (64bytes packet size)
• MAC Address Table: 8K
• Frame filter and transmission rate:

  - maximum 14800pps for 10M

  port- maximum 148800pps for 100M

  port- maximum 1488000pps for 1000M

  port

Network standard

• IEEE 802.3 and 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control
• IEEE 802.3af/at/bt PoE

Power support

• Power Input: 48-52VDC or PoE (PD Power Receivin)
• Total power ≤60W
• AI Watchdog: ports 1-4
• Power Output:

  - PoE Ports 1-3: 1/2(+52V), 3/6(GND) ≤30W

  - PoE Port 4: 1245(+53V), 3678(GND) Compatible with 1/2(+52V), 3/6(GND) ≤60W

Level of protection

• Protection against atmospheric discharges: 6KV
• Protection against electrostatic discharge: 8KV

Physical specifications

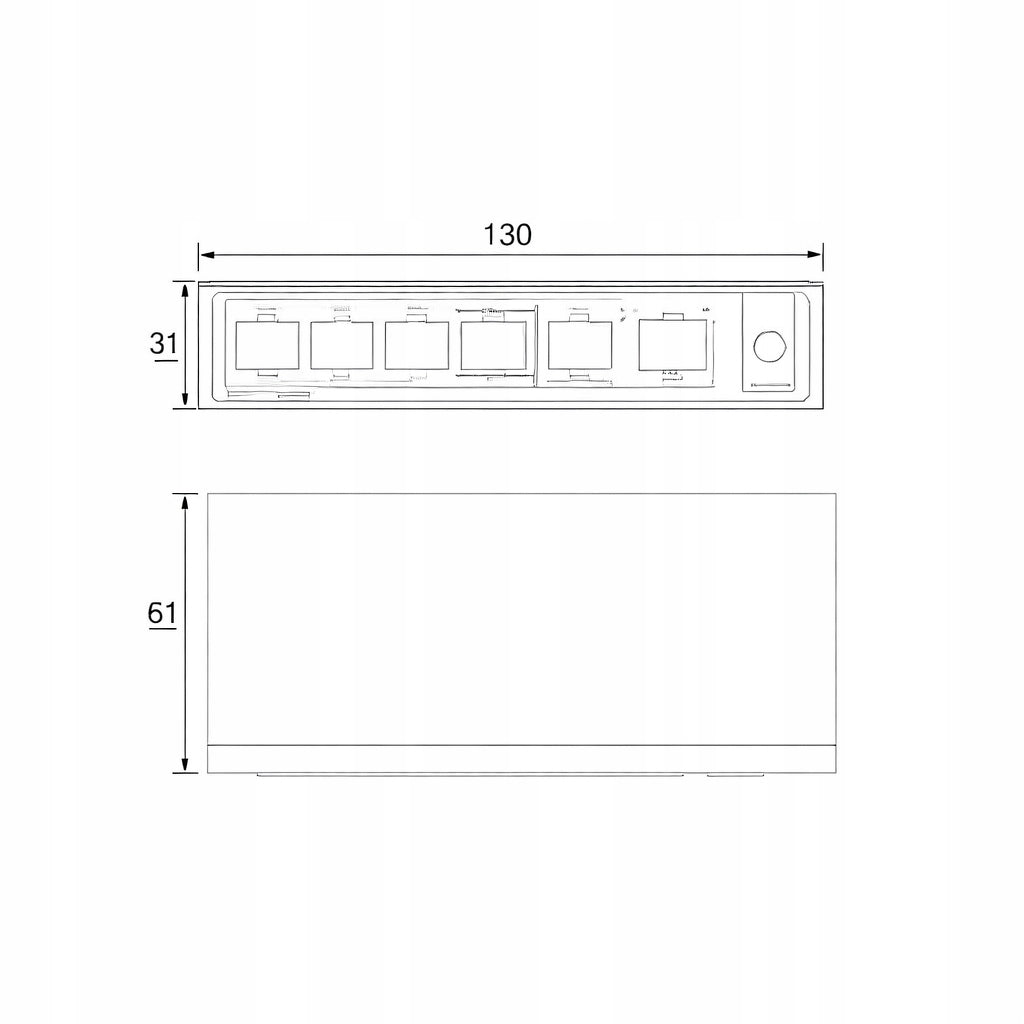

• Size: 130 x 65 x 31mm
• Weight: 0.5kg

Working environment

• Operating temperature: -30℃-60℃
• Storage temperature: -40℃-70℃
• Operating Humidity: 10%-90% non-condensing
• Storage humidity: 5%-90% non-condensing

Certification

• CE
• FCC Part 15, Class B
• RoHS 2.0
