Tinklo adapteris 1JustLink

Trumpai apie prekę

Prekė: Tinklo adapteris 1JustLink. Kategorija: Tinklo plokštės.

• Gamintojas: 1JustLink
• Modelis: Macoring-1013210322211

Technical data:

Item Type: USB CAN Adapter

Material: ABS housing

USB Speed: Full Speed USB2.0 12M/S

Receptivity: 16000 frames per second, 1M transmission rate

Transmission bandwidth: 40000 frames/s

CAN transmission speed: 5K-1M

CAN standard: Supports CAN2.0A and CAN2.0B protocols simultaneously, IS compliant

Number of channels: 2 (with insulation)
Fitted resistance: Built-in 120

(flexible configuration)

Interface Form: Screw Clamp

Electrical Properties:

Insulation: DC2500 or AC1700

Computer Interface: USB

Power Supply: USB

Decoding: car DBC file decoding, loading stack decoding and BMS protocols, CANOPEN and 11939 protocol analysis

Support software: for CANTEST, for CANPRO, for XIAOZHI, etc.

Areas of application: new energy, car calibration, rail transport, automation and other fields

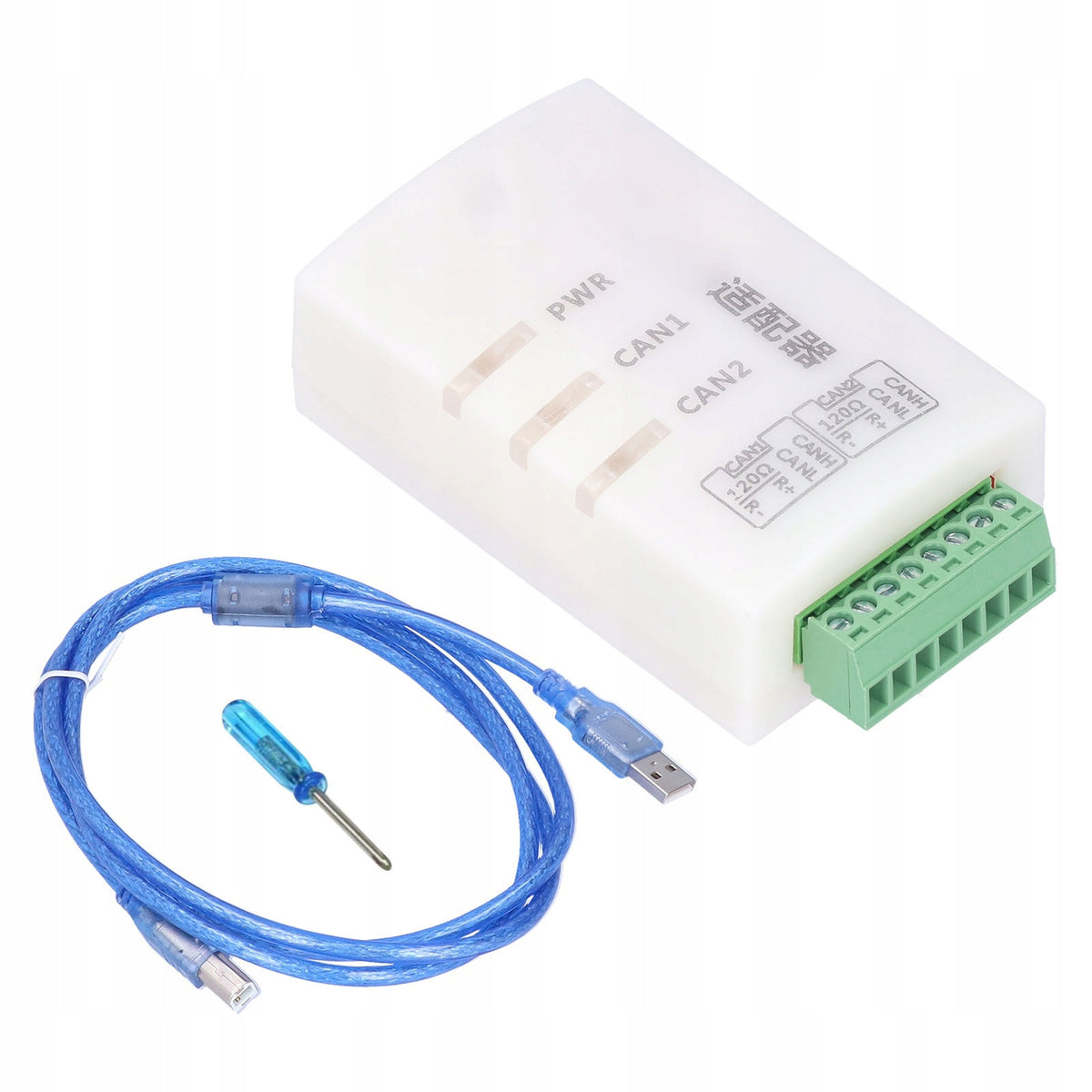

List of packages:

1 x USB CAN adapter

1 x USB cable

1 x Screwdriver

Features:

1. Convenient configuration: CAN bus analyzer supports regular transmission configuration and customization, it is easy to operate. 2. Transmission rate calculation: Unconventional transmission rate can be calculated using transmission rate calculation software and then enter the result of the calculation into the software. 3. Multifunctional detection: supports one-key automatic detection, channel selection, custom detection range, with high accuracy. 4. Relay function: In the relay state, the computer can view the data of each channel and send data, analyze and debug the CAN1 device and CAN2 communication. 5. Scope of application: USB CAN adapter kit is often used in new energy, automotive calibration, rail transportation, automation and other fields.

Specifications
