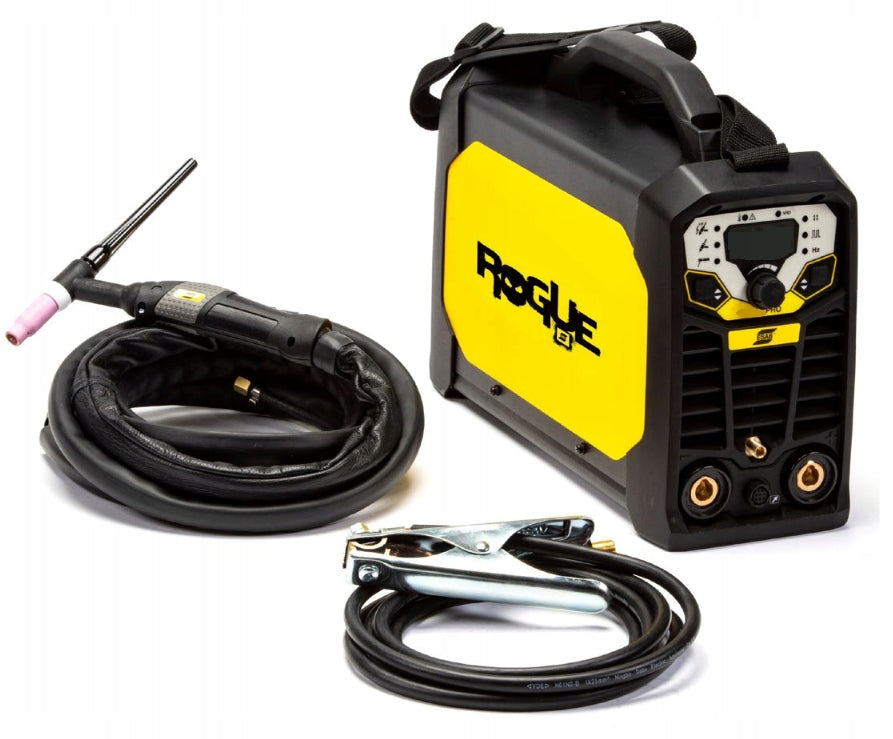

TIG suvirinimo aparatas ESAB Rogue ET 180i DC su SR-B rankena 26, 4 m

Trumpai apie prekę

Prekė: TIG suvirinimo aparatas ESAB Rogue ET 180i DC su SR-B rankena 26, 4 m. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: ESAB
• Modelis: 0700500080

Rogue ET is an efficient and easy-to-use entry-level device for TIG DC welding with HF ignition. The devices contain ESAB brand DNA, which means combining high strength with an extremely compact design. The lightweight ergonomic handle, carrying strap and long extension cords are the features that make the Rogue ET ideal for many applications. In all variants, the device is adapted to be powered by generator sets with a power of >7kW.

• Dimensions: 403 mm x 153 mm x 264 mm
• Mass: 8.7 kg
• Max Output (A): 180A
• Energy saving mode: 30 Watt
• Idle voltage: 63 V
• Degree of protection: IP23S
• Welding range: 10-180 A
• Frequency: 50/60 Hz
• Volt: 230 ± 15% VAC
• Temp. work: -10 - +40 degrees

MMA

• 170 A/26.8V @ 20%
• - A @ 25%
• 97 A/23.9V @ 60%
• 75 A/23.0V @ 100%

TIG

• 180 A/17.2V @ 25%
• 116 A/14.6V @ 60%
• 90 A/13.6V @ 100%

The Rogue ET provides excellent arc characteristics in both TIG and MMA methods. In the case of TIG welding, it is possible to adjust many advanced parameters, such as: gas pre-flow, initial current, rise time, descent time, final current and outflow. All functions can be set for two-bar or four-bar mode

• Excellent high-frequency ignition when working with TIG method eliminates errors and provides excellent arc characteristics, which ensures smooth and stable operation.
• Simple operation – configuration of welding parameters is easy and intuitive.
• Durable construction – IP23S protection class allows for operation both in the workshop and on the construction site.

• TIG DC ESAB ROUGE ET 180i welder
• TIG welding torch SR-B26 4m
• Bulk cable
• User manual
• Receipt or FV
