Termovizorinė kamera USB-C Android Mini telefonui

Trumpai apie prekę

Prekė: Termovizorinė kamera USB-C Android Mini telefonui. Kategorija: IP kameros.

• Gamintojas: Hikmicro
• Modelis: Mini 1

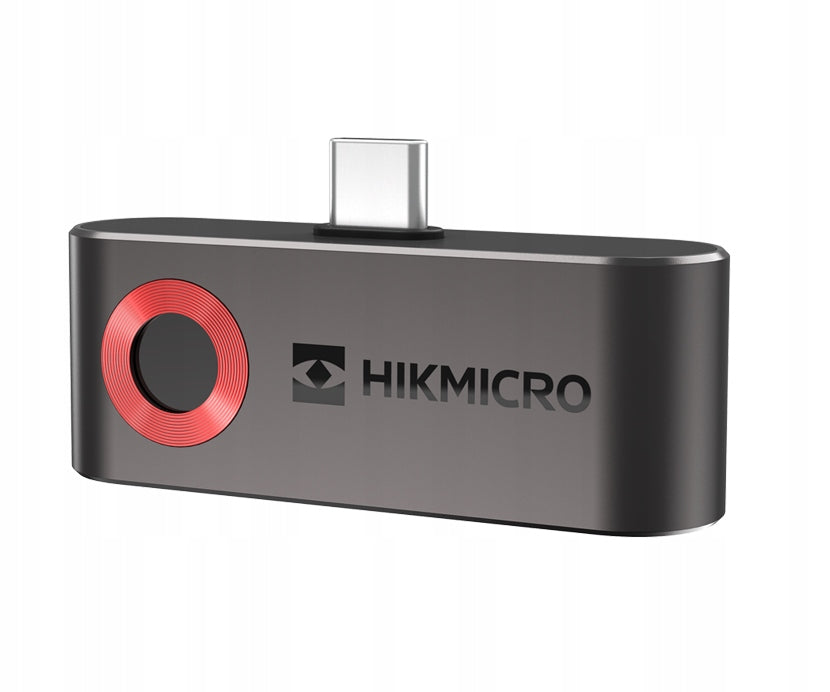

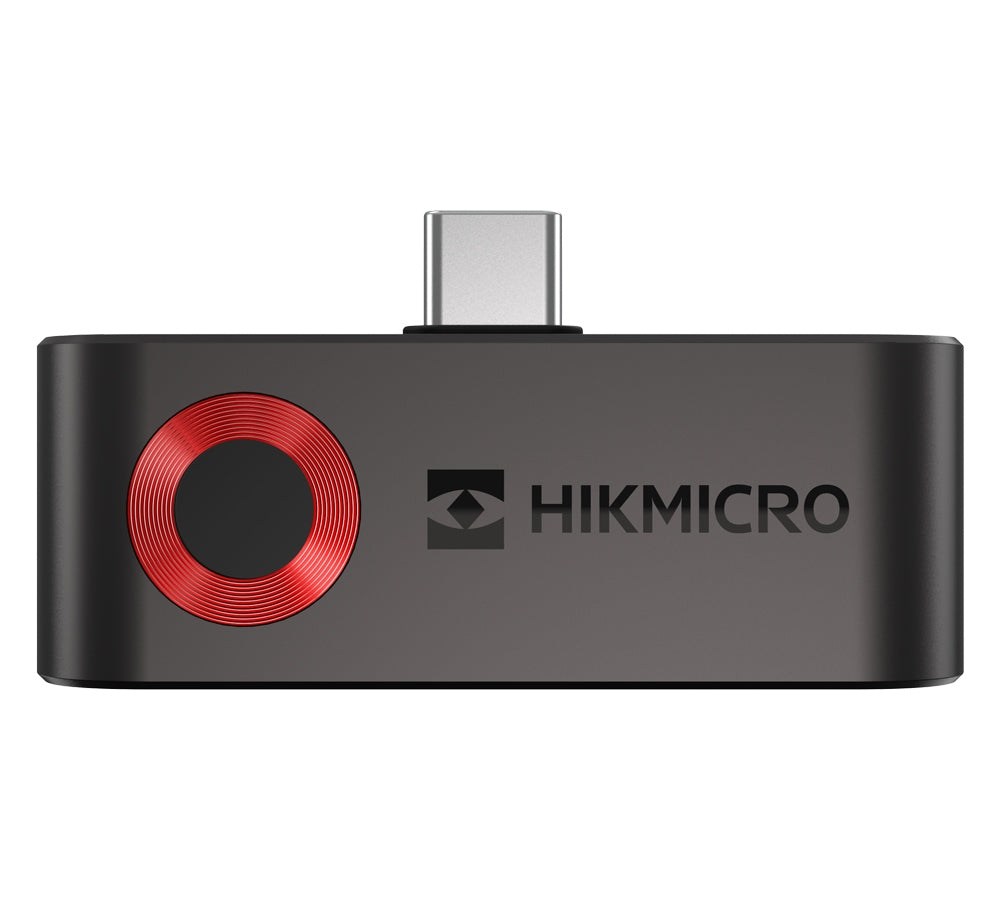

Mini1 by Hikmicro is a miniature, mobile thermal imaging camera, dedicated to work with android devices.

Mini1 will help you find hard-to-identify problems faster than ever, such as heat bridges, short circuits or inaccurate cable connections. Thanks to the use of a high-resolution thermoelectric sensor, capable of measuring temperatures up to 350°C, and the intuitive Hikmicro Viewer application, you can determine the exact temperature of the test object in a few seconds.

• Camera resolution: 160 × 120p (19 200 pixels)
• Measurement accuracy: max ±2°C/3.6°F, ±2% (after calibration at least 60 seconds, at room temperature from 15°C to 35°C)
• Temperature measurement range: -20 °C to 350 °C
• NETD: < 40 mK
• Spot size: 17 μm
• Focal lens: 3,2mm
• Recording angle: 50° × 38° (H × V)
• Compatibility: Android system (USB Type-C Interface)
• Video format: MP4
• Photo format: JPEG
• Refresh rate: 25 Hz
• Protection class: IP40
• Weight: 26 g (0.057 lb)
• Dimensions: 54.1 mm × 15 mm × 27.5 mm
• Measurement functions: Hot Spot, Cold Spot, Center Spot, 1 Point Preset, 1 Area Preset, Off
• Power consumption: 300mW

The Mini1 camera works with the intuitive Hikmicro Viewer application, which allows you to configure recording parameters and quickly share recordings and photos from your smartphone.

Using the camera in the smartphone, the application also allows recording in Picture in Picture mode, applying thermal image to the image of the smartphone camera.

The Mini1 camera allows you to quickly measure the temperature of observed objects in one of 5 modes - focal point, hot point, cold point, 3 arbitrary points and 3 areas.

The application allows you to set the temperature level, after which an audible and vibration alarm will be triggered.

The HikMicro application allows you to use one of the 7 palettes of colors to reproduce the thermal spectrum of the observed scene.

The Mini1 camera guarantees smooth image and precise recording of motion objects thanks to a refresh rate of 25Hz.

Specifications
