Termovizinė kamera PRO USB-C 320x240, 2.8" LCD, -20+550°C, 50Hz

Trumpai apie prekę

Prekė: Termovizinė kamera PRO USB-C 320x240, 2.8" LCD, -20+550°C, 50Hz. Kategorija: Detektoriai.

• Gamintojas: Mileseey
• Modelis: TR20 PRO

⭐⭐⭐⭐⭐

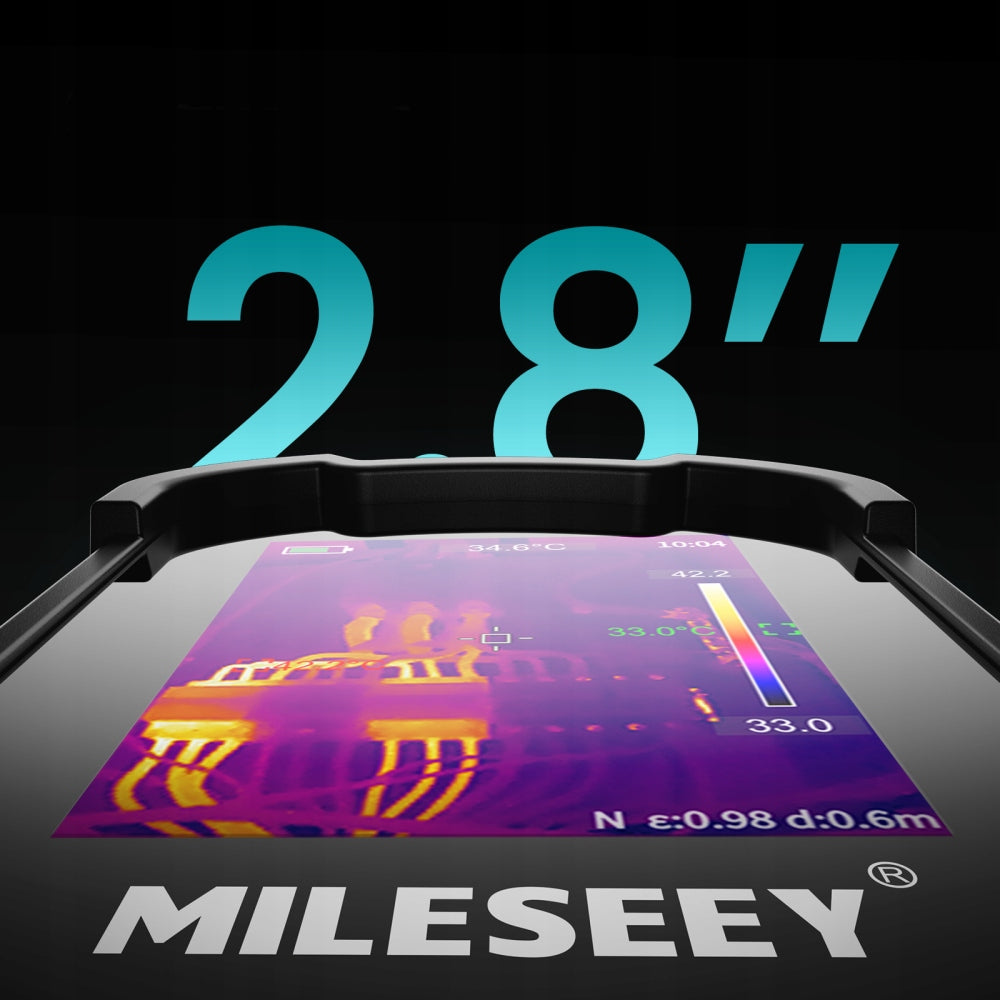

Compact thermal imaging camera rich in numerous functions, a wide selection of color palettes and image modes, a large and readable screen with a diagonal of 2,8 inches and a resolution of 320 by 240 pixels ensures comfort of work, high-quality images with clear details.

• Measurement range from -20℃ to 550℃ and wide field of view 50° x 50°.
• Fast and accurate temperature measurement.
• Alarm with traffic lights, which is activated after exceeding any set temperature ranges.
• 50Hz refresh rate provides a very smooth and unobstructed image in real time
• Advanced data analysis in dedicated software for computer.

✅ The Mileseey TR20 Pro is equipped with two independent sensors:

1. Thermographic Camera (IR Sensor): High resolution infrared sensor 320 x 240, which captures thermal energy (temperature) and creates a thermal image.
2. Visible Light Camera: A standard high-resolution visible light camera that captures images in natural colors, identical to what the human eye sees.

It involves digital overlaying a thermal image on a digital image in real time.

The addition of a digital image provides visual context, the camera automatically aligns the edges of objects visible in digital light with those in the thermal image.

⭐⭐⭐⭐⭐

1. Dual camera - digital and thermal imaging
2. Tracking low and high temperature values.
3. Adjustable emissivity factor.
4. Alarm/warning against low and high temperatures.
5. Automatic function to indicate hot and cool spots.
6. Automatic data recording function.
7. Convenient and functional USB Type-C connector.
8. Spacious and durable battery (up to 8 hours of continuous operation)
9. Large temperature range from -20 to 550 degrees Celsius.
10. The 320x240 resolution and NETD sensitivity < 40mK allows for precise measurement of small objects from a greater distance, combined with excellent thermal sensitivity, the camera distinguishes even subtle temperature differences.
11. Certificates and Patents: The devices meet CE, FDA, FCC, and a number of other standards and are patentable.
12. Supports dedicated computer analytics software (PC Analyzer Software).
13. Made of high quality materials with IP54 certificate, guarantees resistance to falls from 1 meter.
14. The 50Hz image refresh rate offers no blur and a smooth, real-time view.

A: Indication of the central measuring point.

B: Point indication with the lowest temperature.

C: Point indication with the highest temperature.

Mileseey TR20 supports dedicated PC analytics software (PC Analyzer Software). It allows you to fully use the potential of collected thermal imaging data and professional reporting:

• Sharing the image from the camera to the computer screen in real time.
• Editing and analysis: The ability to accurately view, edit and analyze saved thermal images on the big screen.
• Creating reports: Generate professional reports containing all key measurement data, temperature curves and photos.
• Data archiving: Easily manage and archive large data sets (photos and screen recordings) stored on the built-in 8 GB memory (over 30 thousand photos).
• Fast transfer: Data is quickly transferred from the camera to the computer using a USB-C cable.

⭐⭐⭐⭐⭐

8 palettes and 5 image modes to choose from allow you to adjust colors and ranges to suit your needs. In the color palette you will find the following variants:

• White hot
• Black hot
• Iron
• Rainbow
• Blend
• Red hot
• Blue hot
• Green hot

Image Modes:

• Digital
• Fusion coefficient
• M&A offset
• PIP(picture in)
• Thermal

⭐⭐⭐⭐⭐

Fast and convenient charging with the USB Type-C cable included in the kit.

The large and durable built-in battery provides excellent continuous operation time of up to 8 hours (depending on settings).

ROBUST AND DURABLE CONSTRUCTION

The device has a frame construction, soft touch housing gives pleasant comfort in everyday operation of the device and ensures safety against damage in falls from a height of 1 meter.

TIGHTNESS CLASS IP54

Resistant to drops falling at any angle on all sides (rain) and dustproof.

⭐⭐⭐⭐⭐

Due to its specification, the camera has a very wide range of applications.

1. Machine industry.
2. Maintenance and construction of electrical installations.
3. Electronics, PCB inspection (PCB)
4. HVAC - heating, ventilation, air conditioning, etc.
5. Inspection of heating systems
6. Automotive industry, vehicle mechanics.

⭐⭐⭐⭐⭐

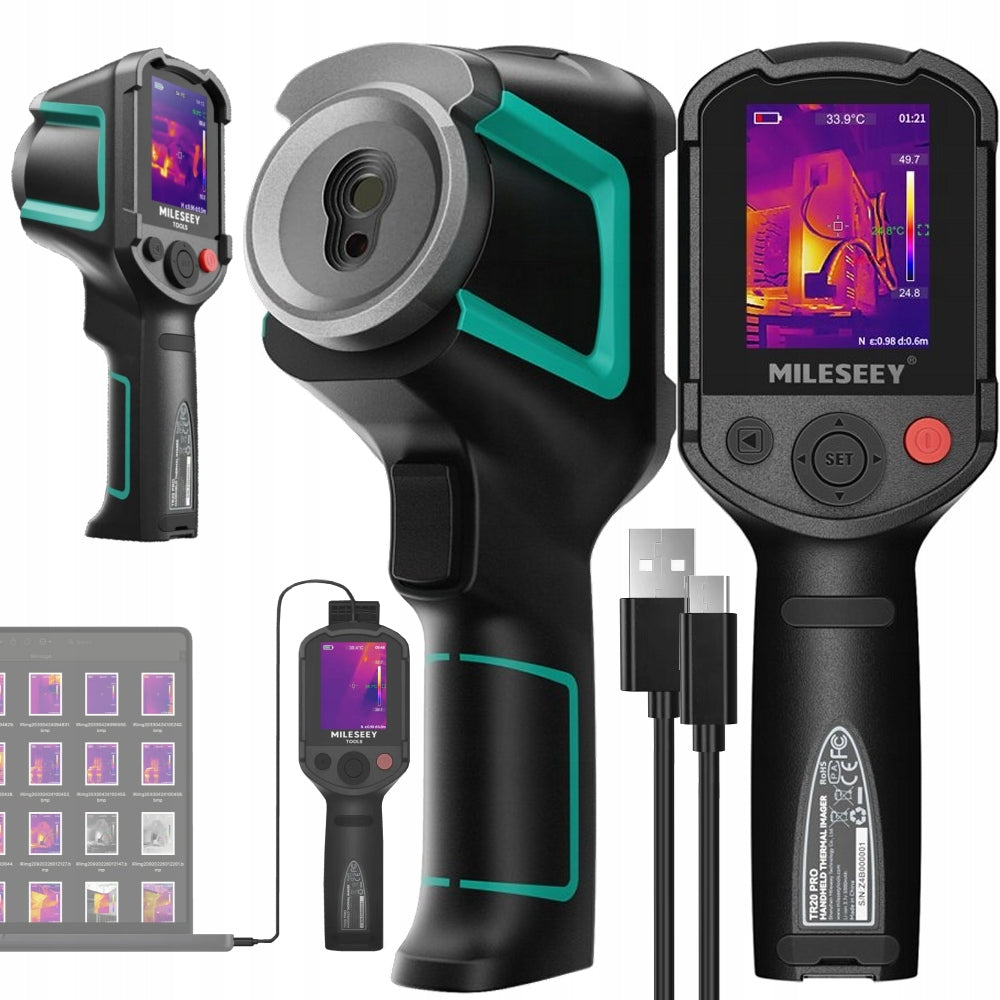

1. USB-C charging port.
2. Color LCD display.
3. Saved images.
4. Power/return button.
5. Navigation buttons.
6. SET button (write).
7. Thermal imaging camera.
8. Visible light camera.
9. Trigger.

⭐⭐⭐⭐⭐

1. Battery level indicator.
2. An hour.
3. The value of the central temperature.
4. The highest temperature on the belt.
5. The lowest temperature point.
6. Temperature bar.
7. Central point/target.
8. The highest temperature point.
9. Lowest temperature on the belt.
10. Detection distance.
11. Emissivity.
12. N: normal range (N will be replaced with H after selecting high temperature range)

⭐⭐⭐⭐⭐

• Model: TR20
• Temperature range: -20℃ ～ 550℃ (4℉～1022℉)
• Optical Resolution: 320 x 240
• Screen Resolution: 480x640
• Accuracy: ±2%
• Thermal Sensitivity: ≤40mK
• Screen diagonal: 2.8 inch
• Refresh Rate: < 50 Hz
• Field of view: 50° x 37.2°
• Measuring distance range: 0.3m-3m
• Focal length: 1,35 mm
• Hot/cold point alarm: yes
• Available number of color palettes: 8 variants
• Number of image modes available: 5 modes
• Image Format: JPEG
• Power supply: 3000mAh rechargeable lithium battery (up to 8 hours continuous operation)
• Charging Port: USB-C
• Protection class: IP54
• PC Software: Yes
• Dimensions: 224 x 91.6 x 76mm

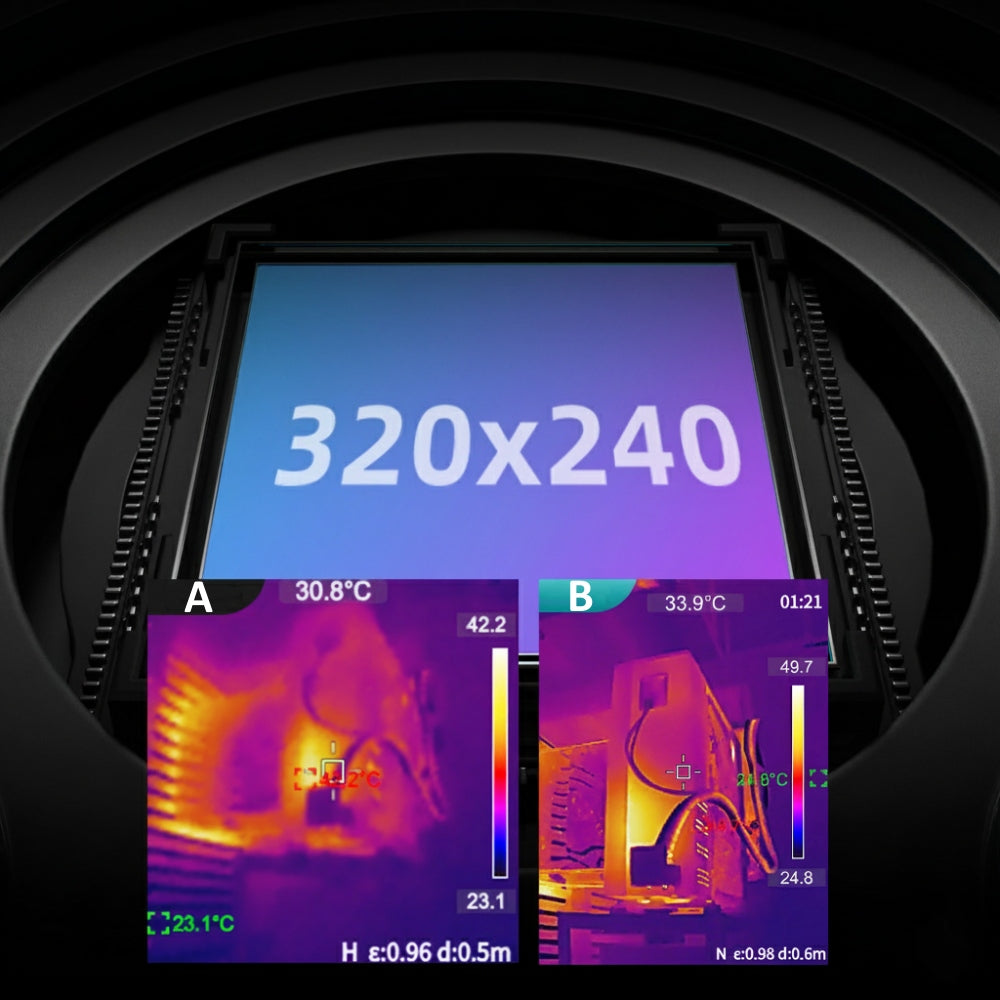

A: Lower resolution on other cameras

B: High resolution used in our camera!

✅ CONTENTS OF THE SET:

⭐⭐⭐⭐⭐

• TR20 thermal imaging camera,
• User manual in Polish and English!
• Original packaging,
• Hard protective case,
• Strap to put on the hand,
• USB Type-C cable.

*laptop visible in the picture is not the contents of the set
