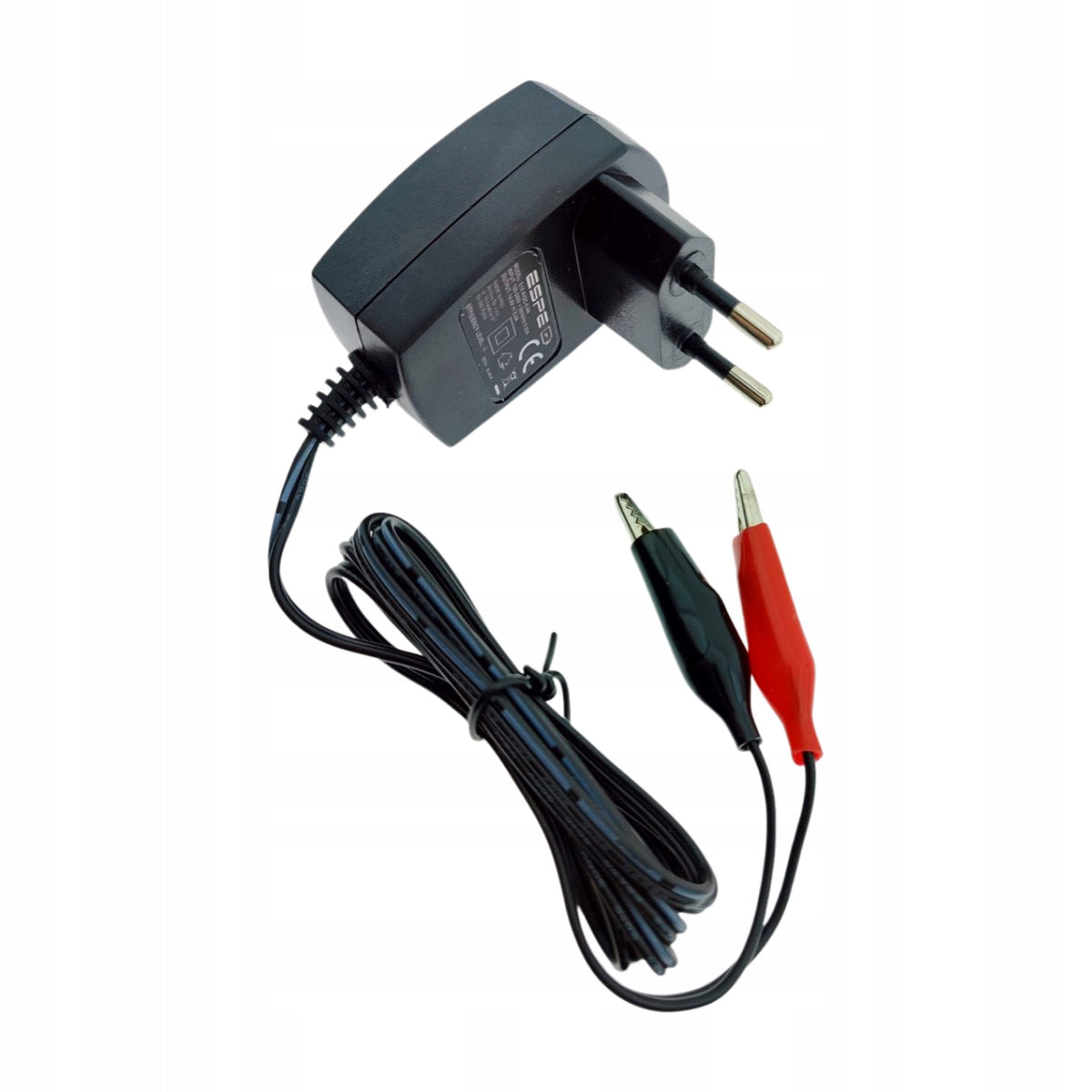

Švino rūgšties akumuliatoriaus įkroviklis 14.4V 0.4A

Trumpai apie prekę

Prekė: Švino rūgšties akumuliatoriaus įkroviklis 14.4V 0.4A. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Espe
• Modelis: E14.4VDC-0.4A

Charger technical parameters:

input parameters:

• rated input voltage: 230 VAC
• input voltage range: 100-240 VAC
• frequency range of the mains supply voltage: 50-60 Hz

output parameters:

• CC/CV adjustment type
• rated output voltage: 14.4V
• minimum output voltage in CV mode: 14.1 V
• maximum output voltage in CV mode: 14.7 V
• rated load current: 0.4 A
• minimum output current in CC mode: 0.3 A
• maximum output current in CC mode: 0.5 A
• rated output power: 6W

security:

• short-circuit: yes
• overcurrent: yes - rectangular characteristic
• automatic return to work after the cause of the error ceases to exist: yes

construction:

• dimensions: 60x39x25 mm
• housing: black ABS plastic
• weight: 67 g
• Input connection: EU plug
• output connection: crocodile clip (black minus, red plus)

The E14.4VDC-0.4A is an efficient 6-watt charger in a plug-in housing designed for charging lead-acid batteries. Supports liquid electrolyte, gel and VRLA versions with a nominal voltage of 12 V. The charger is designed to charge at normal speed in mode and to keep batteries in standby mode. Its design is based on high-quality electronic components that allow for continuous, long-term operation in all conditions. The range of supported battery capacities for standard charging (0.1-0.3 C20) is 1.2-4 Ah.
