Suvirinimo inverteris WELDMAN 200A, MIG/TIG/MMA, LCD, ALU, IGBT, rinkinys

Trumpai apie prekę

Prekė: Suvirinimo inverteris WELDMAN 200A, MIG/TIG/MMA, LCD, ALU, IGBT, rinkinys. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: spawarka inwertorowa 104 722_p3
• Ilgis: 540 mm
• Plotis: 250 mm
• Aukštis: 440 mm

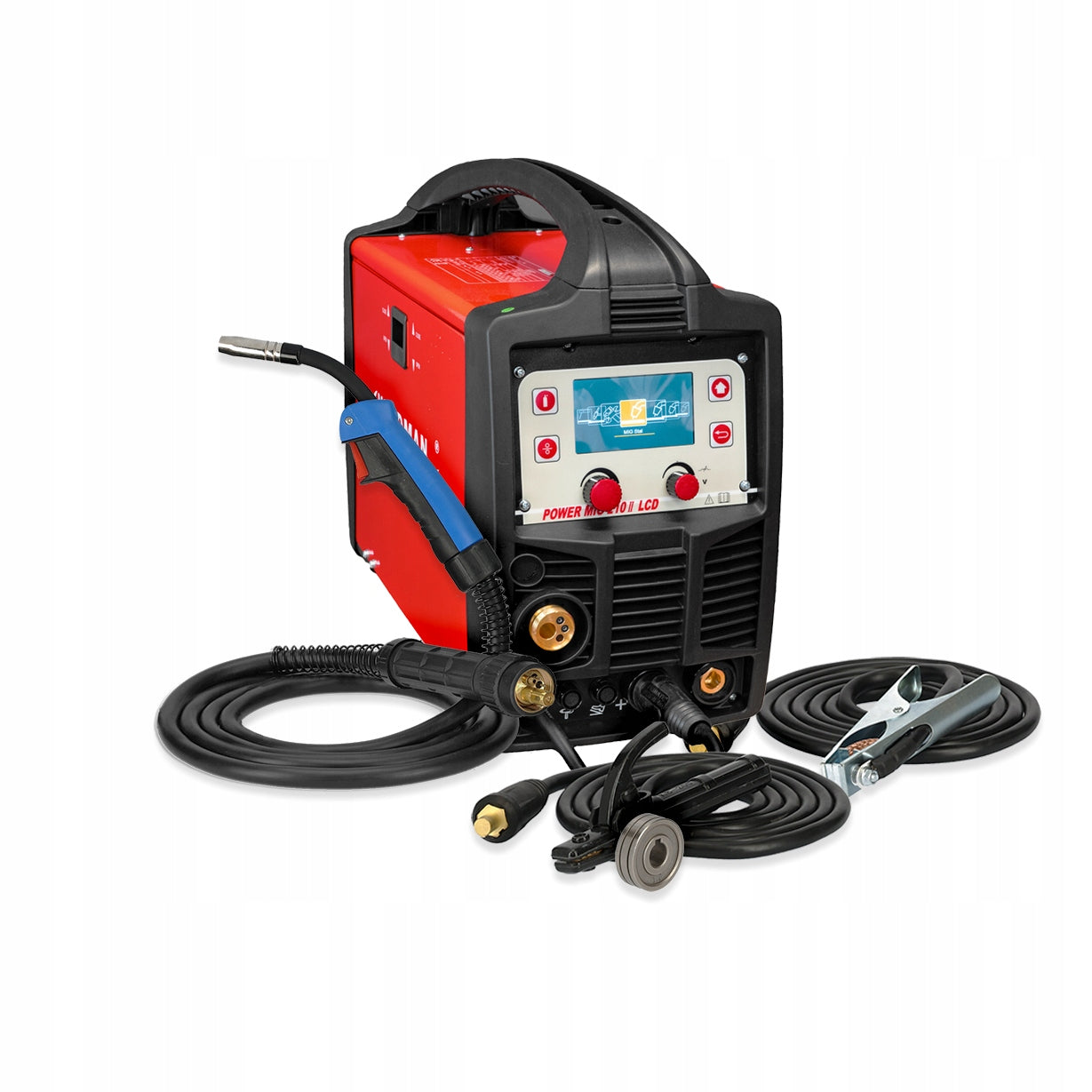

✅ The Weldman Power MIG 210 II LCD welding machine is a synergic single-phase powered device whose control is microprocessor.

✅ Migomat created in accordance with the inverter technology IGBT, and its task is welding with several specific methods:

• welding with direct current (DC) electrodes,
• welding by the MIG/MAG method (in gas shield),
• welding by the MIG/MAG FLUX method (without gas shield),
• welding TIG Lift with direct current (DC) with contact arc ignition,
• brazing

✅ Supported diameters:

• self-shielding wires 0,9 mm,
• welding wires 0,6-1,0 mm,
• electrodes wrapped 4 mm,
• Tungsten electrodes 4 mm.

✅ Versatility. It does its job very well when welding materials such as:

• low alloy steel (MAG)
• aluminum
• low carbon steel
• Cast iron
• Alloy steel (MIG).

✅ The device is distinguished by trouble-free, electronic regulation of wire feed speed and welding current. The maximum spool for this product is 5 kg (D200).

✅ 9 programs have been prepared for synergic welding, including a braze welding program.

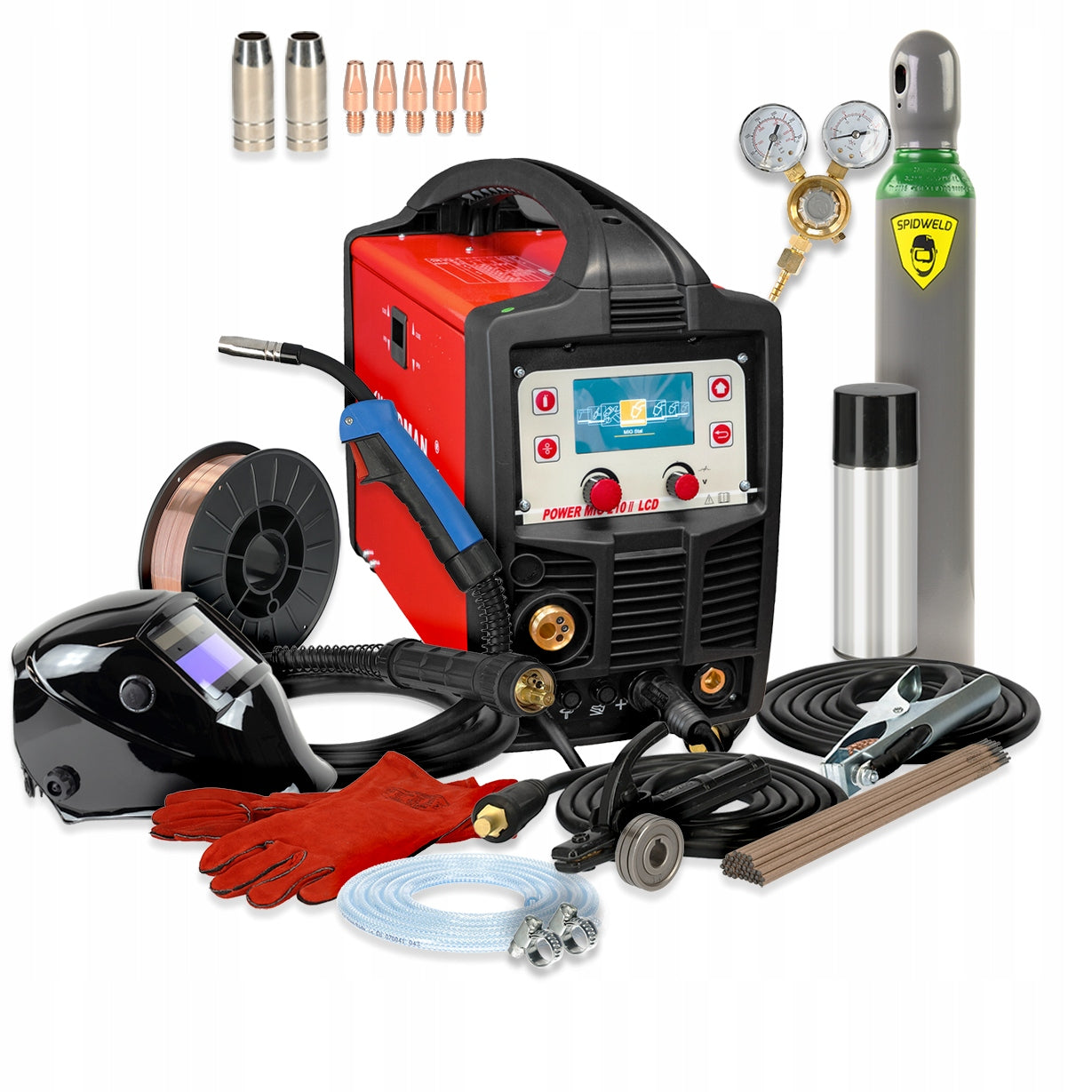

✅ This kit includes standard equipment and an extensive accessory package.

❇ Standard equipment:

• Weldman Power MIG 210 II LCD welding machine
• welding torch BINZEL MB-15 / 3 m
• mass cable with terminal 300 A (plug 35-70) / 3 m
• feeder roller 4RN (type C) fi 0,9 / 1,0 mm V-shaped (mounted)
• feeder roll 4RN (type C) fi 0,6 / 0,8 mm V-shaped
• gas pipe with internal diameter of 8 mm / 4 m
• gas connection (connector) for technical hose 8 mm
• power cord with plug 230 V / 2,3 m
• instruction in Polish

❇ Accessory Pack:

• electrode holder / plug 35-50 / 3 m
• self-tinting visor 510G
• anti-chipping preparation 400 ml
• SG2 0,8 mm / 5,0 kg welding wire
• gas reducer MINI 2 pressure gauges
• cylinder with mixture ARG/CO2 8 liters (new, full, 10-year legalization, valve cap)
• welding gloves 1 pair
• gas nozzle 2 pcs.
• current tip 5 pcs.
• rutile welding electrodes / 1,0 kg
• hose for connecting cylinders with reducer + bands

✅ The welder has a graphic menu, which facilitates operation and allows you to choose the type of welded material.

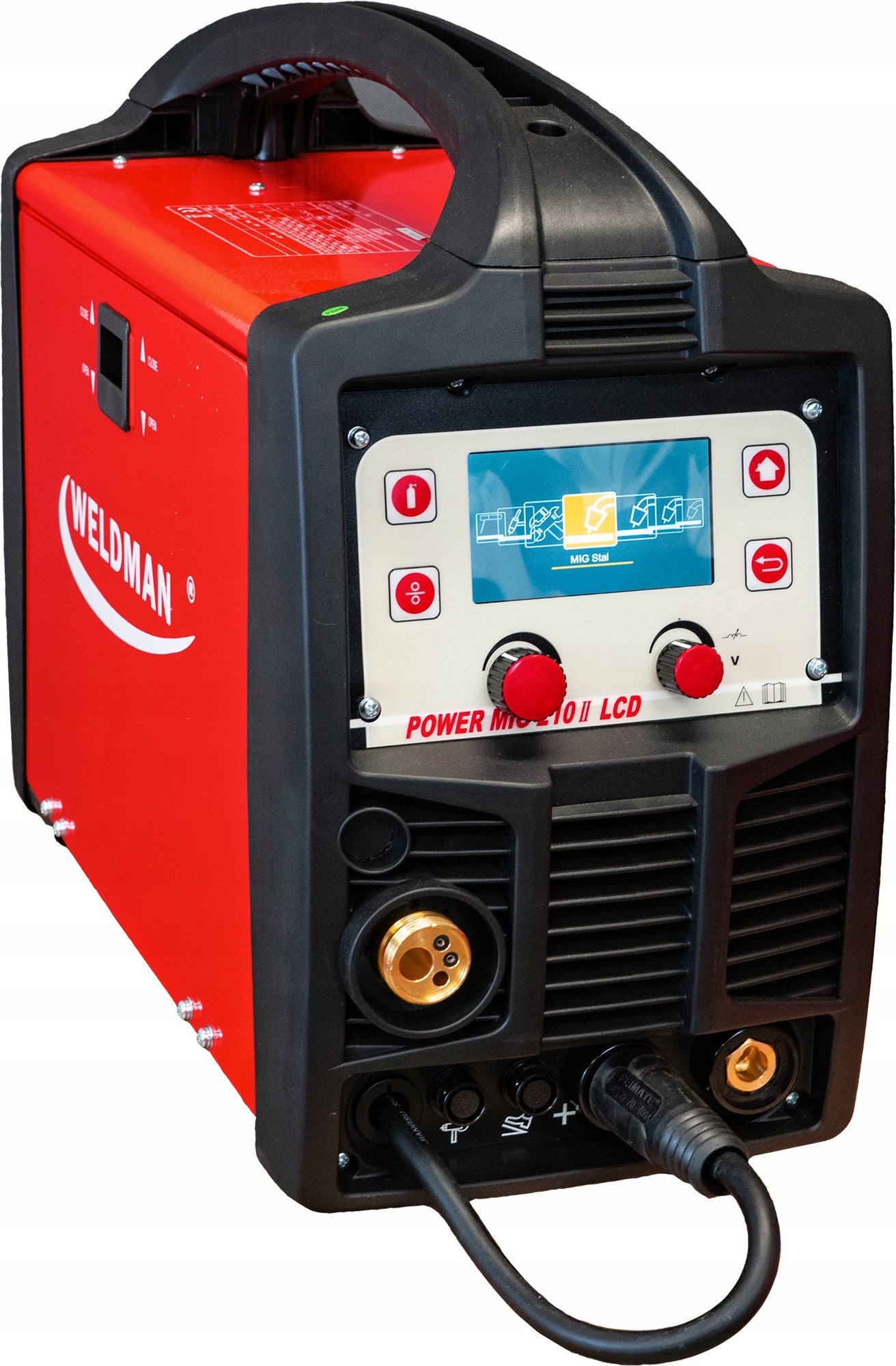

Front panel:

• LCD display
• Gas test button
• Wire feeder test button
• ewe knob: multifunctional menu knob – m.in. selection of functions, adjustment of welding current and wire feed speed (by pressing we approve the selection)
• Return button to the first page of the display
• Return button to the previous step
• right knob: welding current voltage regulation in MIG/MAG

✅ 4-roll wire feeder allows welding with a welding torch type spool gun.

✅ It also works in spot welding mode, 2-bar mode, as well as 4-bar.

• VRD (reduction of idle voltage on the wrapped electrode to a safe level) - provides additional safety for the operator, especially when working in environments with high humidity.
• Arc Force - shortens the arc length when increasing the welding current by optimizing the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the electrode contacts the welded material.
• Hot Start - increases the welding current when arcing to facilitate the ignition of the electrode.
• Anti Stick - reduces welding current by preventing the electrode from sticking to the welded material.

Physical parameters:

• branded handle by Binzel,
• 4-roll wire feeder,
• euro connector ,
• thermal protection (which contributes to safe operation).

The power source was built on the basis of the latest technology using IGBT transistors, which translates into reduced electromagnetic interference, low power losses, increased efficiency and reliability of the power source and significantly reduced energy consumption. The design and software combined with digital control, enables you to achieve excellent welding parameters and achieve high-quality welded joints.

• Height: 440 [mm]
• Width: 250 [mm]
• Weight: 19 [kg]
• Length: 540 [mm]
• Power supply [V]: 230
• Characteristics: Automatic retry of the number welding current [A]: 200
• Cooling: with gas
• Type of wire feeder: internal 4 roller
• Synergic control: Yes
• Soldering function: Yes
• Processes: MIG / MMA / TIG
• Welding current range [A]: MIG/MAG: 40-200; TIG DC: 10-180; MMA 10-180
• Current [A] / duty cycle [%]: MIG: 200 A/ 20%, 115 A/ 60%, 89 A/ 100%; TIG/MMA: 180 A/ 20%, 104 A/ 60%, 80 A/ 100%;
• Security [A]: 20
• Idle voltage [V]: 69
• Current adjustment: Smooth
• Function 2T/4T: Yes
• Additional Features: FLUX (Gas Free Welding), Hot Start, Anti Stick, Arc Force
• Degree of protection: IP21S
• Wire spool: 5,00 kg / D200
• VRD: Yes
• Inductance adjustment: Yes
• Welding range from [A]: 40
• Welding range up to [A]: 200

The 510G self-tinting visor is characterized by a variable degree of protection DIN 4/9-13, variable lightening time and the ability to set sensor sensitivity. Designed for MIG/MAG, TIG and TIG PULSE and MMA welding, equipped with grinding function.

- Chamber width: 5cm

• high quality LCD filters in optical class 1/1/1/2
• power source: photovoltaic cell + replaceable battery
• 4-spoke adjustable headrest for comfortable use
• shell compliant with EN175B for greater impact resistance
• variable degree of protection DIN 4/9-13
• variable lightening time
• Possibility to set sensor sensitivity

Cylinder filled with high quality mixture Ar/CO2 designed for welding in protective gas shielding and for other industrial applications. The product has a protective cap protecting the valve, is factory new and much lighter than cylinders recovered from fire extinguishers. Cylinders and valves are made in accordance with EN 1964:1999 and have the π mark of compliance with ADR/RID requirements.

• Capacity [l]: 8
• Amount of gas [m3]: 1,3
• Mass [kg]: ~15
