Suvirinimo inverteris SPARTUS EASYTIG 206P DC 230V 200A MMA Pulse

Trumpai apie prekę

Prekė: Suvirinimo inverteris SPARTUS EASYTIG 206P DC 230V 200A MMA Pulse. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: Tig 206

✅ SELF-TINTING VISOR IDEAL APS 510G

✅ WELDING WIRES

✅ WELDING ACCESSORIES

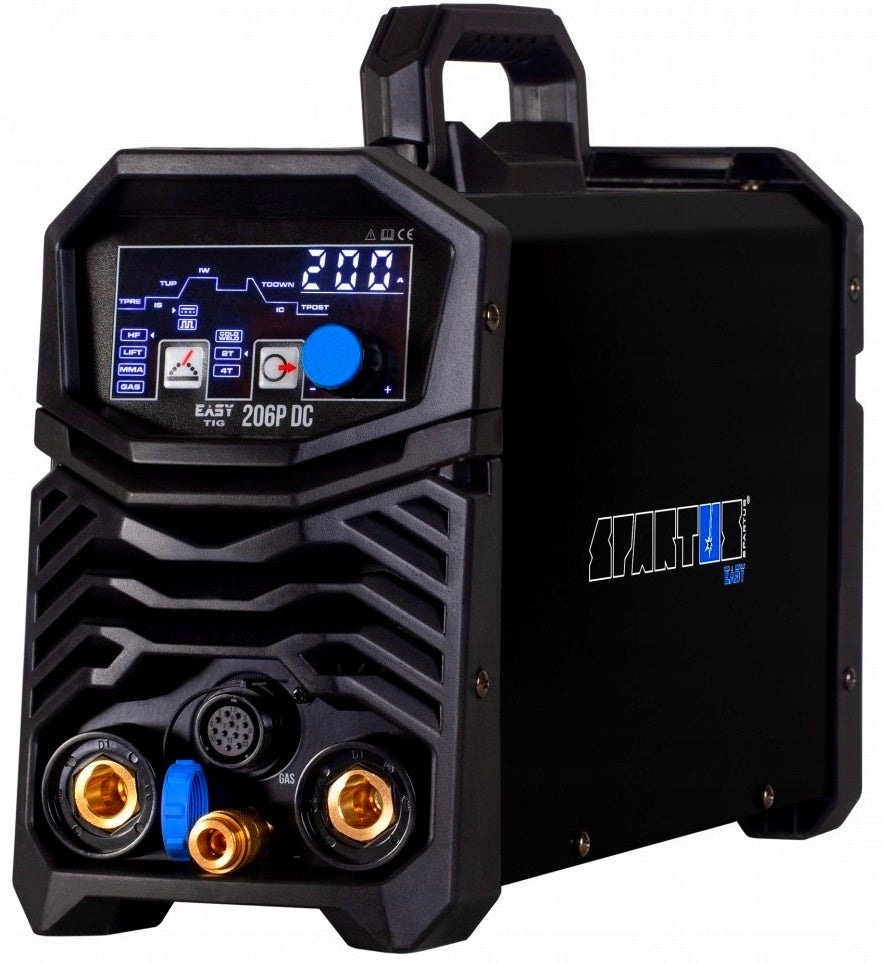

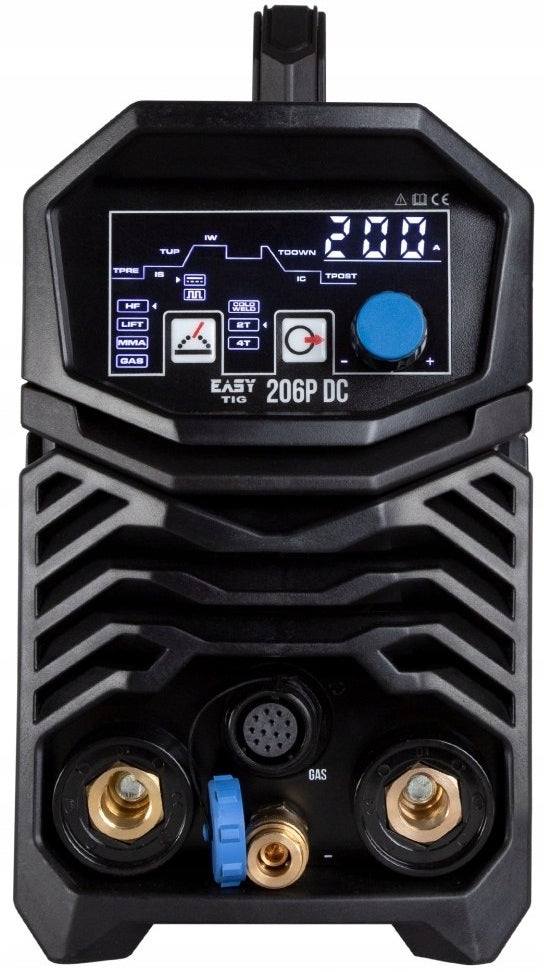

EASYTIG 206P WELDING MACHINE

is a portable inverter welding machine, designed for welding by:

➡ TIG DC

Welding with a non-melting electrode in an inert gas shield with the possibility of advanced DC welding

Thanks to the applied solutions, EasyTIG 206P DC enables advanced welding with the possibility of arcing:

• TIG HF - method of non-contact high frequency arc ignition using an ionizer. The glow occurs by approaching the electrode to the welded material and pressing the button on the handle.
• TIG LIFT - welding with a non-melting electrode (tungsten) in an inert gas shield (Argon) using additional handle. In the TIG DC Lift mode, the arc glow occurs when contact of the electrode with the welded element (the button in the handle does not arc, the gas is connected directly from the reducer to the handle). In TIG Lift DC mode, the current is constant.
• TIG PULS - pulsed welding.

➡ MMA

Welding with a direct current (DC) electrode. The device allows for welding with maximum current 200A. It allows you to obtain 5mm melting and welding material up to a thickness of 10mm.

Provides excellent welding performance:

✔ non-alloy steel,

✔ low alloy steel,

✔ high-alloy steel,

✔ titanium,

The welding machine is characterized by a wide range of applications, it is dedicated to all kinds of welding work in factories, industrial plants, locksmith workshops, repair workshops, etc.

The SPARTUS EasyTIG 206P DC welder has a clear and easy-to-use function panel, which has m.in.:

• Selection button: HF TIG, LIFT TIG, MMA, GAS,
• Mode selection button: COLD WELD, 2T-4T, VRD,
• Parameter adjustment knob,
• Pre-gas,
• Initial current,
• Time of electricity build-up,
• Welding current,
• Base current,
• Power drop time,
• Final current,
• Post-gas,
• Balance,
• Frequency,
• Pulse,
• Hot Start,
• Arc Force,
• Voltage abnormality.

The TIG DC and TIG DC PULS functions are used for welding stainless steel, carbon and low alloy steels, copper and titanium. Welding is carried out in an inert gas shield.

By adjusting the parameters of pulse welding TIG DC PULS we have an impact on the shape of the weld and the focus of the arc. Pulse welding also reduces the amount of heat supplied to the material and is applicable when welding thin materials.

The welding machine is equipped with a professional TIG welding torch with remote adjustment in the handle!

✔ REPAIR WORKSHOP

✔ LOCKSMITH WORKSHOP

✔ FACTORIES

✔ FARMS

✔ HOMEWORK

AND WHEREVER RELIABILITY MATTERS!

✔ TIG WELDING WITH PULSE - thanks to the regulation of pulsed welding parameters, we have an impact on the shape of the weld and the focus of the arc. Pulse welding also reduces the amount of heat supplied to the material and is applicable when welding very thin materials.

✔ POST GAS - regulation of gas outflow time after welding arc extinction. This is a helpful feature to cover the welding lake. The lack of additional gas shielding may result in oxidation of the weld.

✔ PRE GAS - gas outflow before arcing. Protects the lake from the harmful effects of atmospheric air. Regulation expressed in seconds.

✔ COLD WELD TECHNOLOGY - The innovative COLD WELD function ensures excellent weld quality at high welding speeds, while minimizing the amount of heat input into the material. It is a solution that offers results unattainable for standard welding methods.

✔ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

✔ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

✔ HOT START regulation of hot start - facilitates the ignition of the electrode by providing more welding current with each arc.

✔ ANTI STICK short-circuit - automatically turns off the welding voltage if the electrode sticks to the welded material, which facilitates its detachment and prevents the accidental formation of a welding arc.

✔ VRD - is a voltage reduction system whose task is to turn off the power supply within a few milliseconds after welding. This function is also responsible for reducing the voltage on the wrapped electrode to a safe level.

✔ CONTROL PANEL - The welding machine is equipped with an easy-to-use control panel and display, so it can be used even by amateurs.

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ EASE OF USE - the welding machine is equipped with an easy-to-use control panel, so it can be used even by amateurs.

✔ WORK IN INDUSTRY - thanks to its high quality and multifunctionality, the device can be used in professional and industrial work.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

⏩ GENERAL PARAMETERS:

• Power supply: ~1× 230V ± 10% 50 / 60 Hz
• Working cycle [%]: 35
• Pulse width: 5 - 100%
• Pulse frequency: 0.5 - 100Hz
• Power factor (cosφ): 0.69
• Isolation class: H
• Degree of protection: IP21S

⏩ PARAMERTY TIG:

• Power consumption [A]: 34
• Welding current [A]: 10 - 200
• Efficiency η [%] : 78,3

⏩ MMA PARAMETERS:

• MMA welding current [A]: 10 – 200
• Power consumption [A]: 50
• Efficiency η [%]: 82
• Arc Force regulation range [%]: 0 – 10
• Hot Start adjustment range [%]: 0 – 10
• Idle voltage [V]: 64
• VRD: YES

⏩ ADDITIONAL FUNCTIONS:

• Pre-gas [S]: 0 – 1
• Power build-up time [S]: 0 – 5
• Power drop time [S]: 0 – 5
• Post-gas [S]: 0.1 – 10
• Pulsation: YES
• Pulse width [%]: 5 – 100
• Pulse frequency [Hz]: 0.5 – 100
• 2T/4T switch: YES
• Arc glow: LIFT / HF
• COLD WELD: YES

⏩ OTHER:

• Weight: 6.5kg
• Dimensions: 410 x 145 x 245
• Connection: 9SPA - SPARTUS®

Welding helmets with variable shade protection DIN 4/9-13, adjustable delay time, and sensitivity control.

Designed for MIG/MAG, TIG, TIG PULSE, and MMA welding, with a grinding function.

High-quality LCD filters with optical class 1/1/1/2.

Power source: solar cell + replaceable battery.

The 4-point adjustable headgear ensures comfortable use.

Shell compliant with EN175B standard for increased impact resistance.

PHYSICAL PARAMETERS

• Welding filter type: APS-510G
• Weight: 475g
• Filter dimensions: 96x39 mm

TECHNICAL PARAMETERS

• Reaction time: < 1/30000s
• Number of sensors: 2
• Optical class: 1/1/1/2
• UV/IR protection: up to 16 DIN
• Shade adjustment: 4/9-13 DIN
• Adjustable sensitivity: √
• Adjustable delay: Stepless 0.1-1.0s
• Standards: CE, EN175B, EN379, EN166
• Low battery indicator: √
• Power supply: Solar cell + 1xCR2032 battery

APPLICATIONS

• Plasma cutting: √
• MIG/MAG; MMA: √
• Grinding: √
• TIG, minimum current: √, >10A

NOTE! Helmets are shipped in the color currently available in stock.

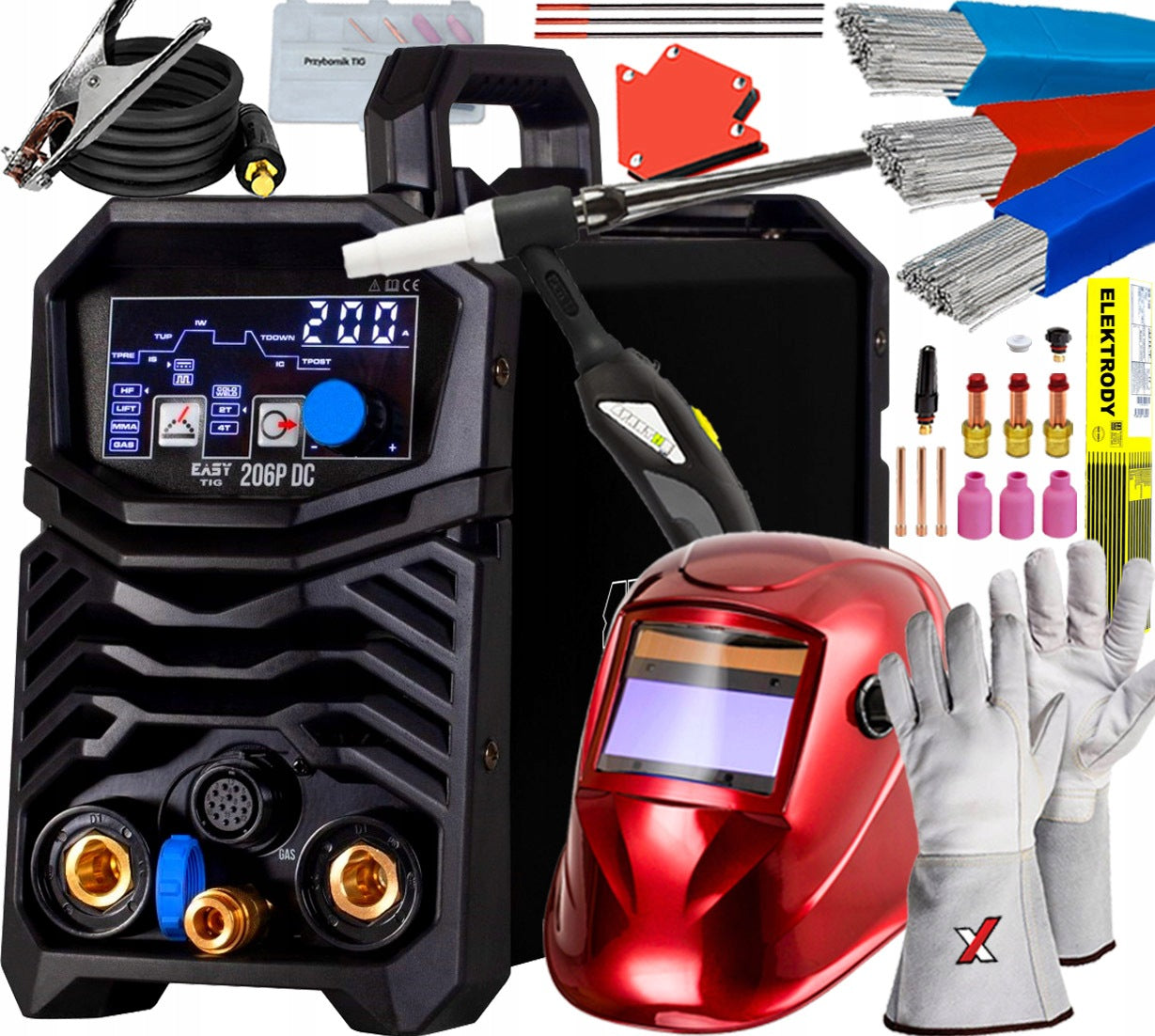

• INVERTER WELDER SPARTUS EASYTIG 206P DC - 1 pc.
• WELDING HANDLE TIG SPE 17 1B - 4m - 1 pc.
• MASS - 2m - 1pcs.
• TIG TOOL WITH PARTS FOR THE BURNER
• INSTRUCTION FOR OPERATING in Polish

• Self-tinting visor IDEAL APS510G - 1 pc.
• TIG wire 308 LSi 1,6mm - 0,5 kg
• TIG wire 316 LSi 1,6mm - 0,5 kg
• TIG ROD wire 1.6mm - 0,5 kg
• TIG electrode red 1,6/2,0/2,4 mm - 3 pcs.
• Gas lens SR 17/18/26 - 3 pcs. 1,6/2,0/2,4 mm
• Clamp sleeve SR 17/18/26 - 3 pcs. 1,6/2,0/2,4 mm
• Ceramic nozzle for SR 17/18/26 lens - 3 pcs.
• Isolator - 1 pc.
• TIG cork - 2pcs.
• Angle magnetic - 11kg
• Professional gloves welding - 1 pair
• Electrode pack - 1kg (2.5 or 3.2mm to choose from)

SET OF 9 TIG DC

M.

PRODUCT GALLERY:

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Spartus
Parametry	Device weight	6.5 kg
Parametry	Manufacturer code	Easy Tig 206
Parametry	EAN (GTIN)	5900391248805
Parametry	Model	Tig 206
