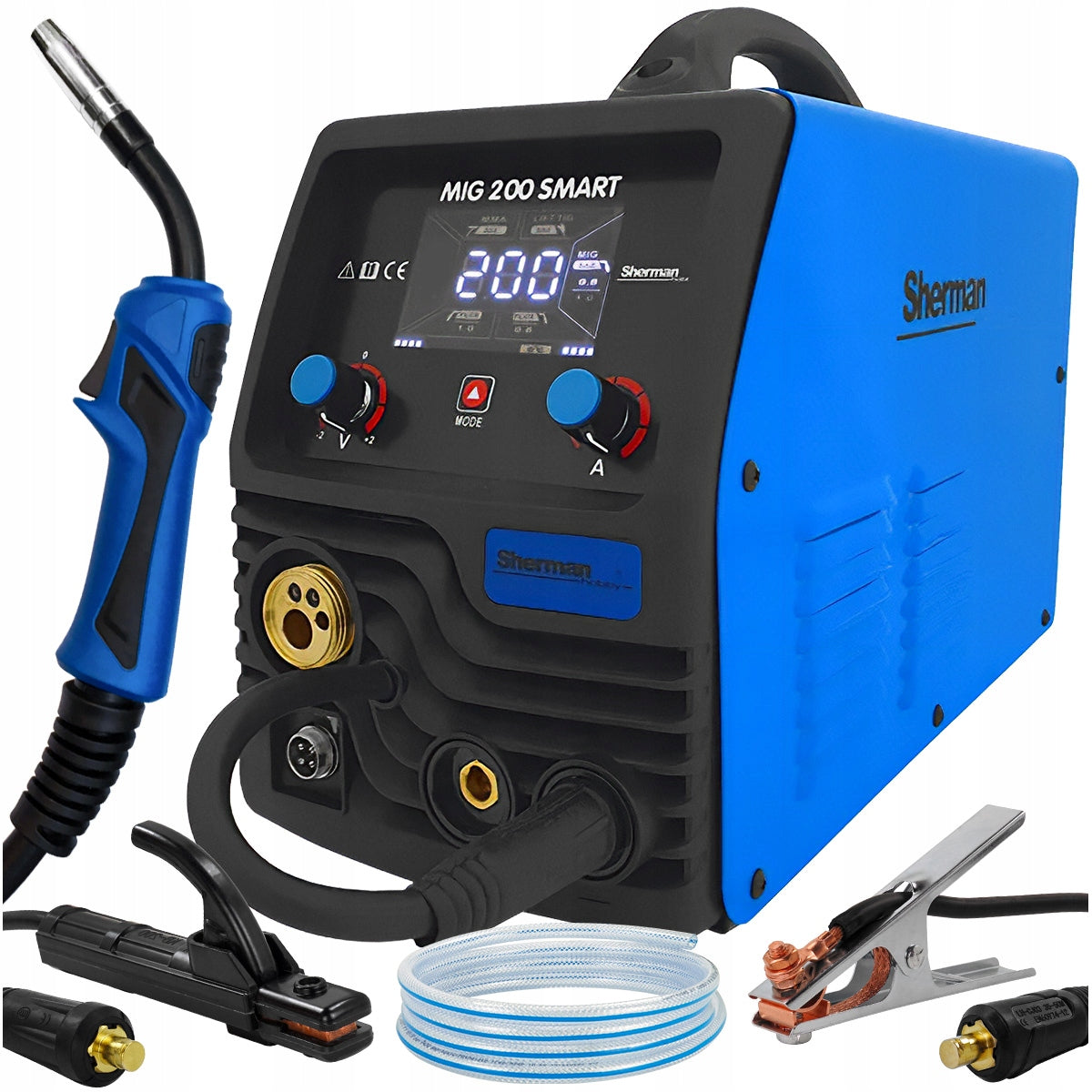

Suvirinimo inverteris Sherman MIG 200 SMART MMA TIG Synergy MB-15

Trumpai apie prekę

Prekė: Suvirinimo inverteris Sherman MIG 200 SMART MMA TIG Synergy MB-15. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: 7812762
• Ilgis: 430 mm
• Plotis: 185 mm
• Aukštis: 320 mm

MANUFACTURER: SHERMAN || WELDING METHODS: MIG/MAG, MMA, TIG DC Lift || SELECTED ADVANTAGES: Synergy, Spool Gun Option || POWER SUPPLY: 230V 1ph

Power supply parameters:

• Power Supply: 230V
• Welding methods: MIG, MAG, FCAW, MMA, TIG DC
• Maximum welding current: 200A
• Working cycle: 60% 200A
• Network Security: 20 A
• Maximum power consumption: 4,6kVA
• Net weight: 12,5kg
• Dimensions: 430x185x320mm
• Degree of protection: IP23S

MIG/MAG welding parameters:

• Welding Current: 200A
• Welding voltage (current): smooth adjustment
• Wire diameter: 0,8-1,2 mm
• Wire spool weight: 1kg, 5kg
• Wire spool diameter: D100/D200 (100mm/200mm)
• Welding polarity change: YES
• Welding voltage correction: -2,0 – +2,0

TIG welding parameters:

• Welding Current: 200 A
• Max TIG power consumption: 4,3kVA
• Max TIG current consumption: 14,8A

MMA welding parameters:

• Smooth regulation of welding current: 200A
• Voltage without load: 78V

+ ONLY WITH US ADDITIONALLY ▶ GAS CABLE WITH A LENGTH OF 4M! ◀

▶ EASY-TO-USE MIGOMAT WITH MMA AND TIG LIFT WELDING CAPABILITIES

Synergistic welding machine MIG 200 SMART is used for manual welding of steel. It is a very easy to use device that allows welding using MMA (wrapped electrode), TIG Lift, and MIG/MAG methods in synergistic mode. Thanks to the change of polarity, the device allows MIG/MAG welding using both standard wires in the protective gas shield and self-shielding powder wires.

The welder allows you to connect a Spool Gun type handle with a mini wire feeder mounted in it and a D100 spool of steel or colored wire. The built-in synergistic system allows you to choose welding parameters for less experienced users.

The device is made in IGBT technology allowing for a significant reduction in weight and dimensions of the welding machine and an increase in efficiency while reducing energy consumption.

The welding machine is used in closed or covered rooms, not exposed to direct atmospheric influences.

Advantages of the device:

• smooth adjustment of welding parameters,
• color LED display,
• WELDING MIG, TIG LIFT, MMA,
• synergic programmes,

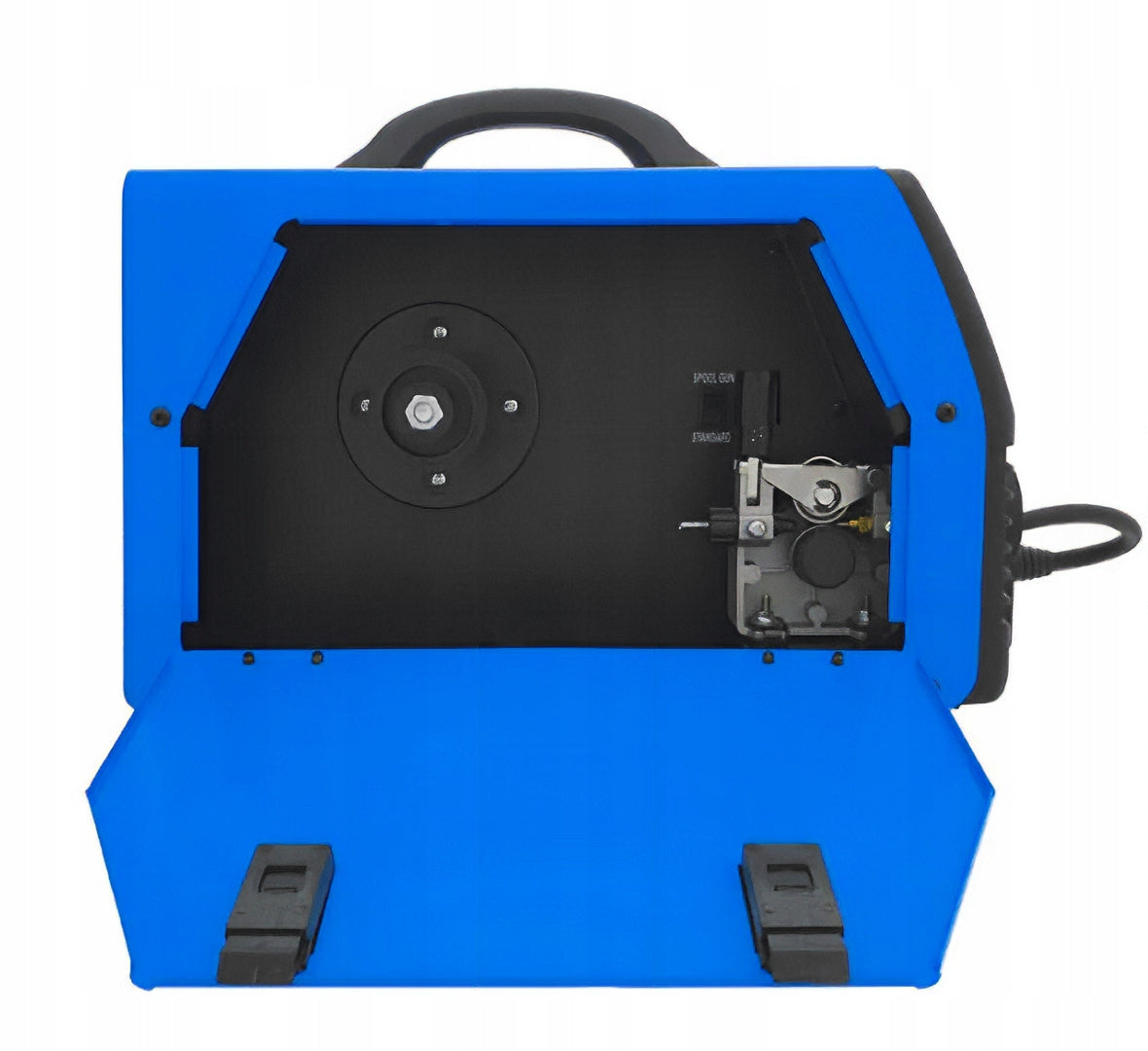

• 2-roll feeder,
• EURO handle socket,
• option to connect the SPOOL GUN holder.

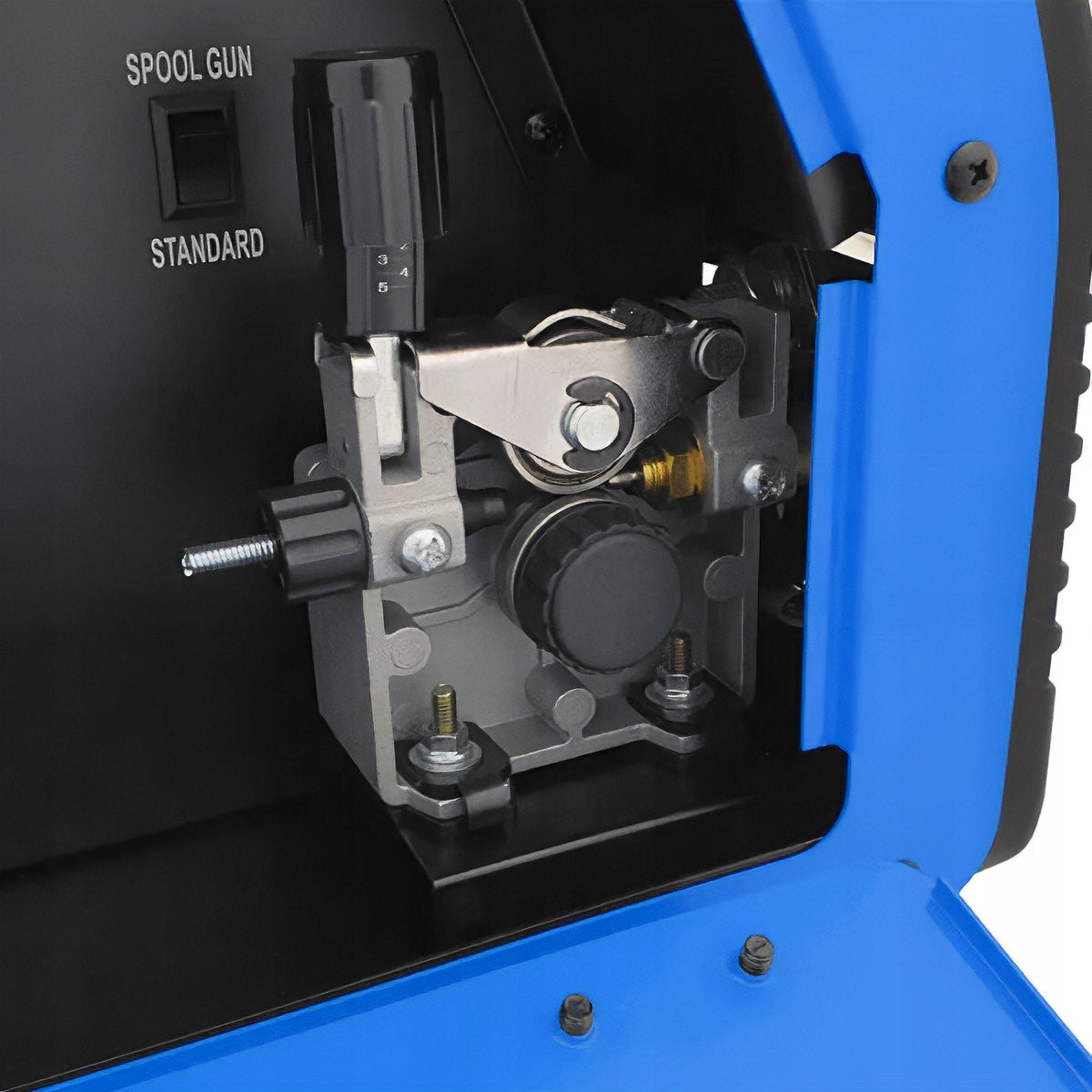

Professional Wire Feeder

Professional 2R feeder - reliable and precise wire feeding, thanks to the use of a professional feeder - ensures smooth wire feeding to the handle and stable welding parameters.

Solid workmanship

The power source is based on IGBT transistors that provide a minimum of electromagnetic interference, allowing you to increase the efficiency and reliability of the device.

The compact and compact design makes the device applicable in workshop and repair work, both in halls and in the field. Carrying makes it easy to equip the welding machine with a rigid transport handle.

• Sherman MIG 200 SMART Welder
• MB-15/3m Welding Torch
• MMA Electrode Holder Cable
• Ground Cable
• User Manual

▶️ + 4m GAS HOSE INCLUDED! ◀️
