Trumpai apie prekę

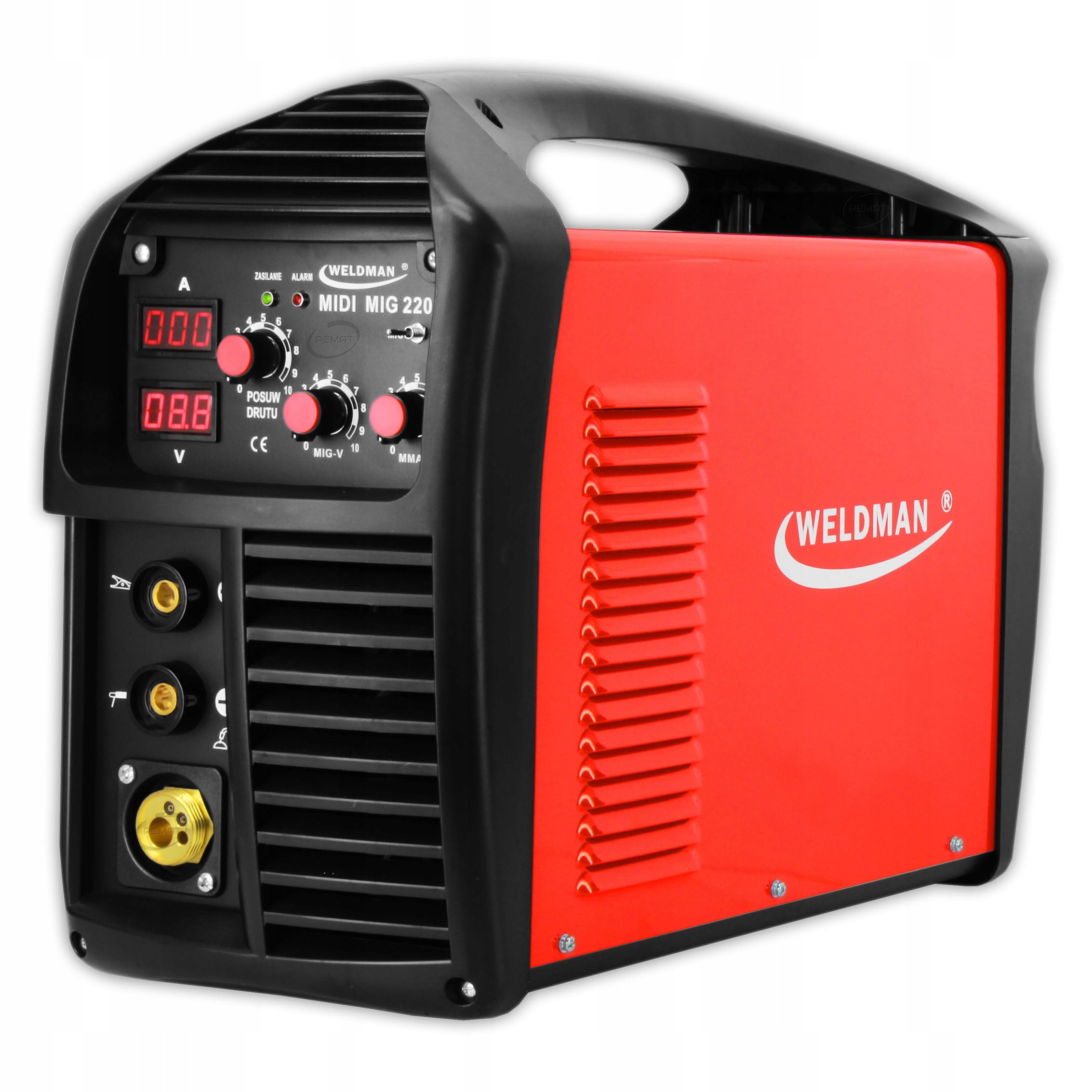

Prekė: Suvirinimo inverteris MIG MMA Weldman MIDI MIG 220 A. Kategorija: Inverteriniai suvirinimo aparatai.
- Gamintojas: Weldman
- Modelis: MIDI MIG 220
WELDMAN MIDI MIG 220 MMA
| Brand: Weldman | Welding methods: MIG/MAG, MMA | Power supply: 230V | Welding current: 220A | Efficiency: 60% |
The Midi Mig 220 welding machine is characterized by single-phase power supply and IGBT inverter technology.
This product is designed for FLUX welding (without gas shield), MIG/MAG welding (including gas shield) and DC electrode welding.
The Midi Mig 220 welding machine is designed for welding with 0,9 mm self-shielding wires, 0,6-1,0 mm diameter welding wires, as well as wrapped electrodes up to 4 mm in diameter.
TECHNICAL DATA
- Power supply voltage [V]: AC 230 50Hz
- Power protection [A]: 25
- Execution technology: IGBT
- Welding current [A]: MIG: 220 MMA: 200
- Working cycle [%]: 60
- Welding current voltage: 25V (MIG) / 24,4V (MMA)
- Welding Current Adjustment: Liquid
- Average wire spades [mm]: 100, 200
- Speed. wire feeding [m/min]: 2,5-13
- Mass [kg]: 19
- Dimensions [mm]: 550 x 240 x 420
- Housing protection degree IP21
- Type of socket: 10-25
IGBT TECHNOLOGY
Modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has an impact on a significant extension of reliable operation of welding equipment.
POLARITY CHANGE - WELDING WITHOUT GAS
Thanks to the variable polarity, it is possible to weld using the FLUX method with powder wire without shielding gas. The wire is filled with flux producing protective gases during welding.
EURODISCONNECTION
Standard welding torch connection that allows you to connect various types of torches (e.g. prepared for welding Aluminum or Soldering by replacing the Teflon cartridge and current tip).
2 ROLLER WIRE FEEDER
Professional feeder made of die-cast aluminum, has a powerful motor that allows for stable wire feeding without jamming. It is equipped with 2 drive rollers.
It is designed for heavy-duty operation and for handles with a longer length compared to plastic feeders that cannot handle 4 or 5 meter handles.
DEGREE OF PROTECTION
IP21 means that the device is adapted to work in closed rooms.
COOLING
The device has a fan cooling system which definitely increases its efficiency.
WORK CYCLE
The work cycle is based on a 10-minute period. The 60% duty cycle means that after 6 minutes the operation of the device is required 4-minute break. 100% duty cycle means that the device can work continuously, without interruptions
STANDARD EQUIPMENT
- Weldman MIDI MIG 220
- MIG MB15 3m welding torch
- Electrode cable 2,5m
- 2m mass cable with 200A terminal
- User manual
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Weldman |
| Parametry | Power consumption | 8 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Device weight | 19 kg |
| Parametry | Welding range | 20–220 A |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 400 cm |
| Parametry | Product weight with unit packaging | 21 kg |
| Parametry | Manufacturer code | 103111 |
| Parametry | EAN (GTIN) | 5902701750077 |
| Parametry | Model | MIDI MIG 220 |
| Parametry | Welding methods | MIG/MAG,MMA |
| Parametry | Additional features | welding mask included,infinitely adjustable welding current,EURO handle,LCD display |
