Trumpai apie prekę

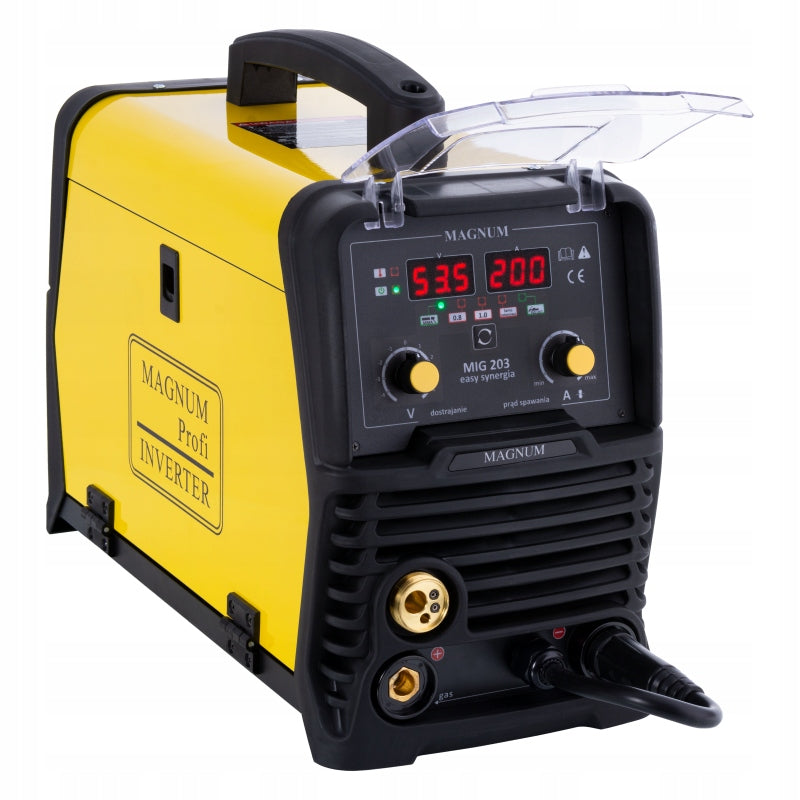

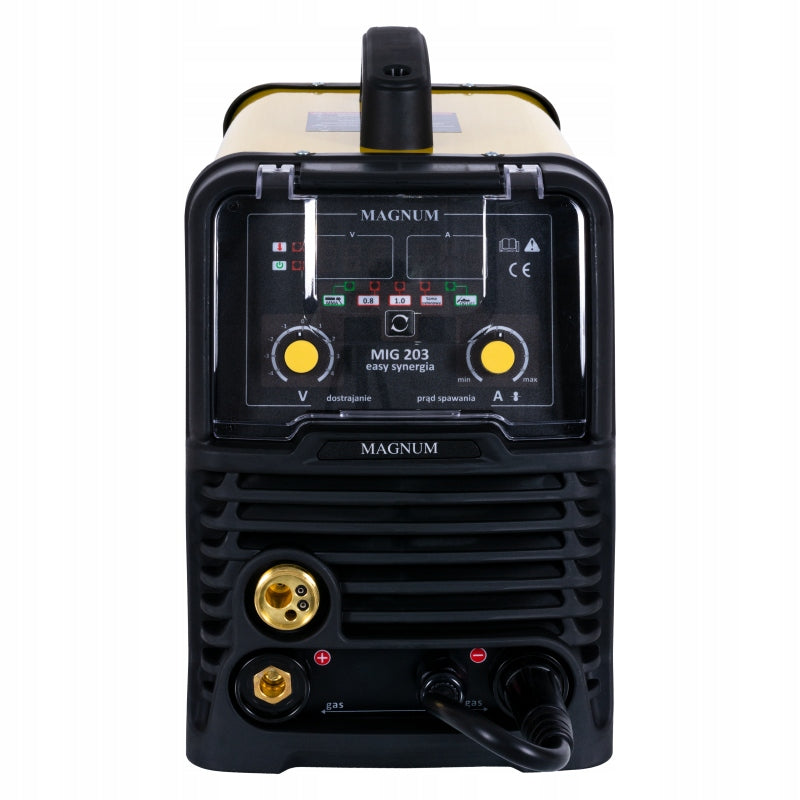

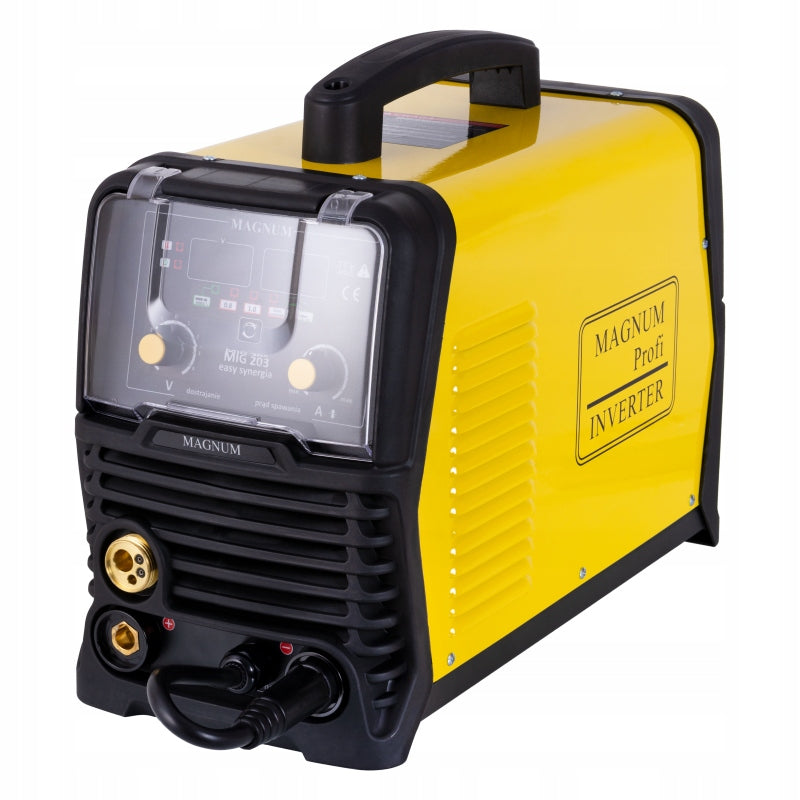

Prekė: Suvirinimo inverteris Magnum MIG 203 EASY SYNERGY. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Magnum
- Modelis: U MI 203EASY
- Ilgis: 830 mm
- Plotis: 470 mm
- Aukštis: 720 mm
5901209100230
MIG 203 EASY SYNERGY by MAGNUM is a technologically advanced welding device with full, simple SYNERGY function! The welder is designed for quick and easy welding. Everything is enclosed in a solid and compact housing. The advantage of this device is also an additional front panel cover, which protects the control panel from damage.
The power source was built on IGBT transistors providing a minimum of electromagnetic interference, enabling increased efficiency and reliability of the power source.
Functions and advantages:
- simple, full SYNERGY
- smooth parameter adjustment
- digital display of parameters
- simple device support
- solid metal feeder
- self-shielding wire welding
- MMA welding
- TIG LIFT welding
Included:
- MIG MB15 work handle
- MMA work handle
- handle with mass clamp
- welding accessories
- instruction manual
Technical data:
Power supply - 230V/50Hz
Efficiency - 60%
Welding current 230[V] - 200A
Idle Voltage| 230V - 55V
Wire spool - max. 5 kg
Wire diameter - 0.8 mm - 1.0 mm
Power protection 230[V] - 20A
Weight - 11 kg
U MI 203EASY
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Magnum |
| Parametry | Welding methods | MIG/MAG |
| Parametry | Power consumption | 5.7 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,8-1,0 |
| Parametry | Device weight | 15 kg |
| Parametry | Welding range | 40–200 A |
| Parametry | Height | 720 mm |
| Parametry | Length | 830 mm |
| Parametry | Width | 470 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 0.8 kg |
| Parametry | Manufacturer code | U MI 203EASY |
| Parametry | EAN (GTIN) | 5901209100230 |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle |
