Suvirinimo inverteris MAGNUM MIG 200/2 MMA IGBT, tinka aliuminiui

Trumpai apie prekę

Prekė: Suvirinimo inverteris MAGNUM MIG 200/2 MMA IGBT, tinka aliuminiui. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U MI 200/2 KN MAMP-15-T
• Ilgis: 654 mm
• Plotis: 328 mm
• Aukštis: 460 mm

Manufacturer: MAGNUM ║ Welding methods: MIG/MAG, MMA, FLUX ║ Power supply: 230V/400V ║ Welding current: 200A ║ Efficiency: 60%

Protection required: 20A/16A

• Maximum welding current 200 A
• Power supply 230 V and 400 V
• Allows welding of all types of steel and aluminum
• Variable polarity allows welding without gas
• Solid and durable chassis with cylinder space
• Adjustable inductance allowing for LUTOSPELING
• Work in long cycles without worrying about shutdown.
• Even greater resistance to voltage drops and interference
• EURO socket
• IGBT transistors
• Welding FLUX
• 2-roll feeder
• Ideal for household
• Great migomat for workshop and production plants
• Robust and proven construction

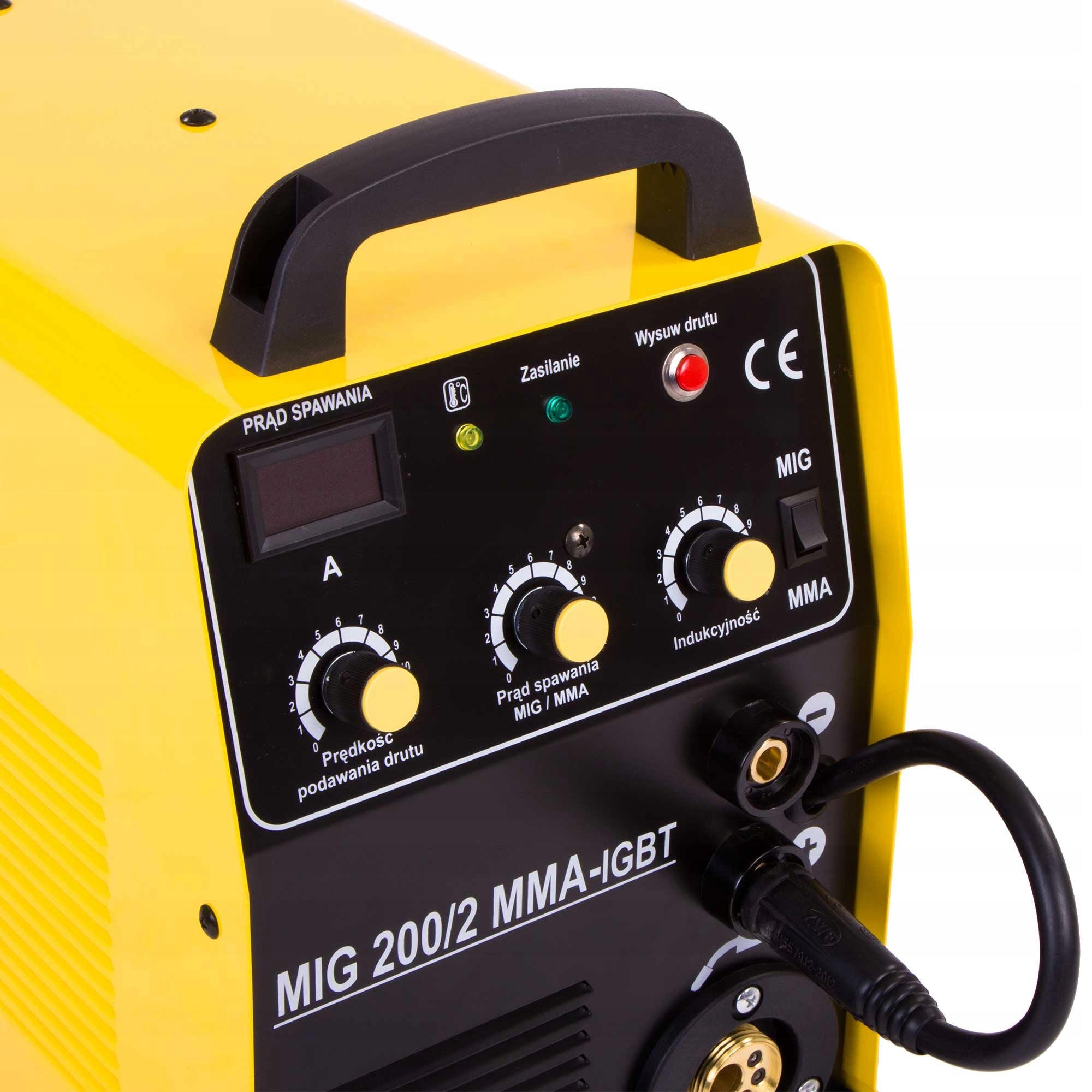

• Functional knobs responsible for adjusting the current, wire feed speed and inductance.

STRONG SOURCE

The MAGNUM MIG 200/2 MMA KN welding machine is a semi-automatic welding machine designed for welding steel using the MIG/MAG method and aluminum and its alloys. The device has a power of 200A and guarantees a melt with a maximum thickness of 5mm (the maximum thickness of the welded material is 10mm). The welder has an efficiency of up to 60% at maximum current and allows you to work in long cycles without worrying about turning off. The semi-automatic MAGNUM is built on IGBT transistors. This solution provides lower electricity consumption, greater resistance to interference, voltage drops, but also trouble-free operation.

FULL FUNCTIONALITY

Thanks to the variable polarity, self-shielding powder wires (FLUX) can be welded, but also MMA can be welded using hot melt coated electrodes. Adjustable INDUCTANCE allows for welding without chipping of both thin sheets and thick profiles and conducting the LUTOSPELING CuSi process. The MAGNUM MIG 200/2 KN welder has an easy-to-use integrated function panel with knobs, enabling smooth adjustment of welding current, wire feed speed and inductance.

SOLID EXECUTION

The MAGNUM welder is a very durable device, the metal housing is resistant to mechanical damage and ensures long-term use. The semi-automatic machine has solid wheels, including two front swivel wheels, which guarantee high mobility and give the possibility of moving the welding machine on uneven ground. The device is equipped with a high-quality professional 2-roller feeding unit designed to work under heavy loads.

ADDITIONAL FUNCTIONS:

EUROCONNECTOR - allowing the interchangeable use of various types of handles.

FLUX - arc welding with powder wire, not requiring the use of gas cylinders. We use self-shielding wire, which is filled with flux or chemical substance producing protective gases during welding.

LUTOSPELING - this is a process by which you can freely connect galvanized sheets, which are often used in car bodies. The main advantage of solder welding is the maintenance of a protective zinc coating at the solder-zinc interface.

OVERLOAD SWITCH - built-in protection against overheating of the device, prolonging its service life.

POWER SUPPLY 230/400V - the welding machine allows you to connect it to a single-phase 230V network or to two 400V phases, which makes it a very powerful source of electricity, and at the same time allows you to connect it to a regular outlet.

POWER SUPPLY PARAMETERS

• Power supply: 230V/400V
• Number of phases: 1ph/2ph
• Frequency: 50Hz
• Power protection: 20A/16A
• Idle current voltage: 57V

WELDING PARAMETERS

• Maximum power consumption: 6,2kW
• MIG/MAG welding current: 30-200A
• MIG/MAG welding current voltage: 16,5 - 23V
• MMA welding current: 30-180A
• Efficiency: 60%
• Idle voltage: 57V
• Wire diameter: 0,6/0,8/1,0mm
• Feeder: 2R
• - Subwoofer Spool size: 5kg(200mm)
• Inductance adjustment: Yes
• Welding without gas: Yes

PHYSICAL PARAMETERS

• Security rating: IP 21S
• Cooling: fan
• Dimensions: 655x230x400mm
• Weight: 14 kg

Buying in a set - YOU SAVE MONEY

• Factory new reusable cylinder with Ar (82%) / CO2 (18%) mixture with a capacity of 8l. The cylinders have 10-year-old legalizations and can be filled at any point with technical gases.
• Factory new reusable cylinder with 8l argon. The cylinders have 10-year-old legalizations and can be filled at any point with technical gases.
• Self-tinting visor MAGNUM TURBO TRUE COLOR - a safe mask with an enlarged field of view of 100 x 60mm, 4 sensors and a reaction time of 1/30000 s, for full eye protection.
• Gas hose - for connecting the reducer to the welding machine. - 2 x 2m
• Reducer with two pressure gauges - precise reducer with adjustment. Our model has a pressure gauge to control the pressure in the cylinder and a second to the amount of gas flowing out.
• Reducer with Rotameter
• Anti-chipping preparation - protects the nozzle and metal against welding chipping.
• Welding wire SG2 5kg - precision winding
• Welding wire for aluminium ALMG 1,0mm - 2kg
• Clamp ties - 4 pcs.
• Gloves for welding MIG/MAG- 1 pair
• Gloves for welding TIG short - 1 pair
• Scraper for gas nozzles
• Set of MIG/MAG handle consumable parts (nozzles, connectors, tips, insulators)
• Angles magnetic 11kg - 2 pcs.
• Electrodes SkandiKraft - 1kg

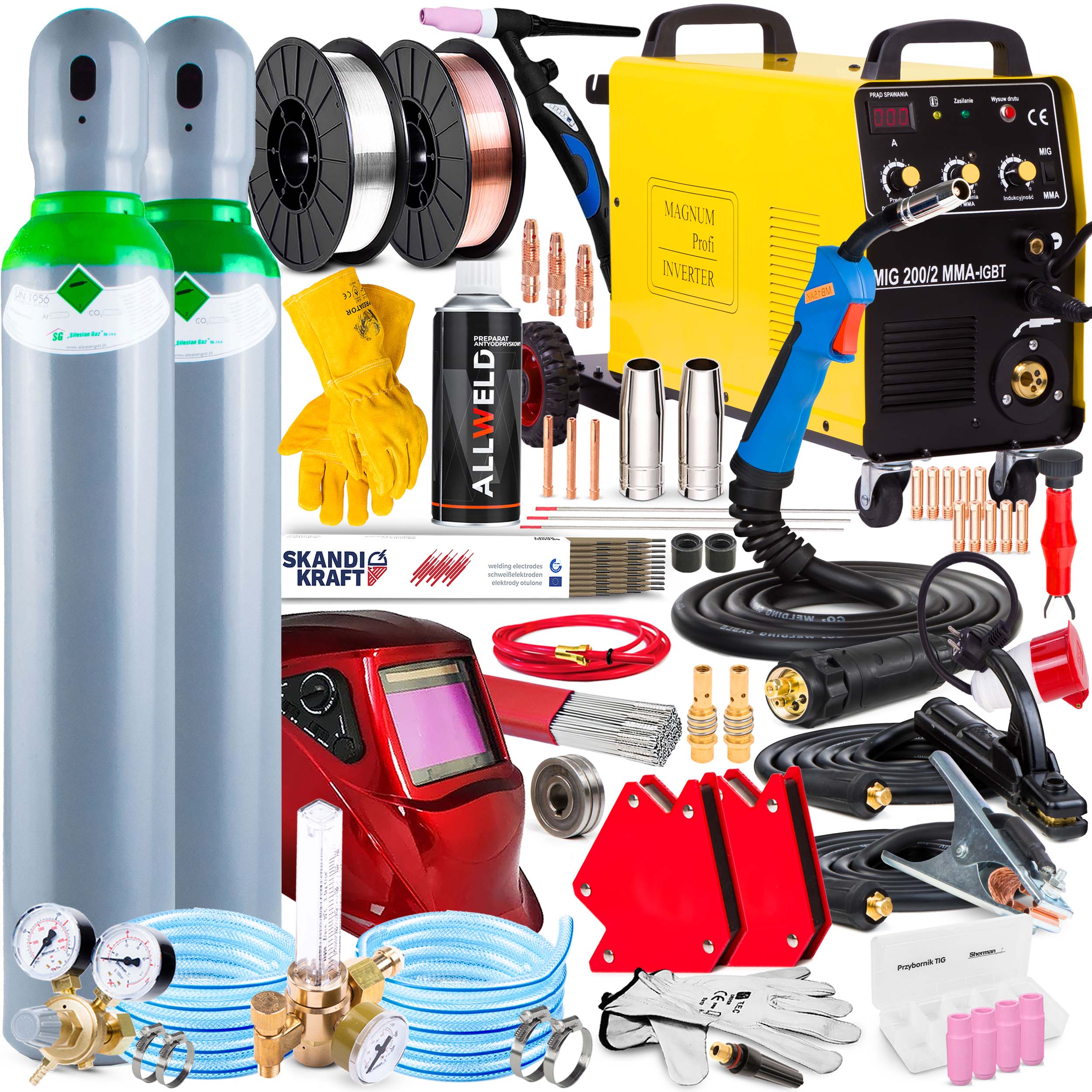

THE SET INCLUDES:

• Welding machine MAGNUM MIG 200/2 MMA KN
• Welding torch MIG/MAG type MB15 - 3m
• Electrode holder - 2m
• Bulk holder - 2m
• Adapter from 400V to 230V
• User manual and warranty card

ADDITIONAL ACCESSORIES:

• The self-tinting visor Magnum Turbo TRUE COLOR
• Bottle with gas mixture Argon/CO2
• Botla with Argon gas
• Reducer cylinder Ar/CO2 MINI with two pressure gauges
• Welding wire SG2 0,8mm - 5kg
• Welding wire for aluminium ALMG 1,0mm - 2kg
• Teflon cartridge for aluminium wire
• Roll feeder for aluminum wire
• Preparation anti-chipping ALLWELD
• Angle magnetic 11kg - 2 pcs.
• Electrodes SkandiKraft - 1kg
• Flame-retardant gloves for MIG/MMA welding
• Gas hose - 2m
• Clamping bands - 4 pcs.
• Scraper for gas nozzles

+HANDLE CONSUMABLE PARTS:

• Gas nozzles - 2 pcs.
• Current connectors - 2 pcs.
• Ends current 1,0mm - 5 pcs.
• Ends current 0,8mm - 5 pcs.
• Gas distributor - 2 pcs.

+ TIG ACCESSORIES (ZS 0 DC)

• Handle TIG 17V/4
• Box for consumables
• Wire TIG HORDA 4Si 1.6mm for black steel - 1kg

• Reducer with rotameter
• Gas hose - 2m
• ceramic nozzle 5/7/10/ +6
• Collet TIG 1.6 / 2.0 / 2.4
• Coupler TIG 1,6/2,0/2,4
• Korek TIG medium SR T 17/18/26
• Gloves TIG short
• Electrode TIG red 1,6/2,0/2,4

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Power consumption	8 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Wire diameter (mm)	0,8-1,0
Parametry	Device weight	14 kg
Parametry	Welding range	30–200 A
Parametry	Height	460 mm
Parametry	Length	654 mm
Parametry	Width	328 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	20 kg
Parametry	Manufacturer code	U MI 200/2 KN MAMP-15-T
Parametry	EAN (GTIN)	5907195563608
Parametry	Packaging status	original
Parametry	Welding methods	MIG/MAG,MMA
Parametry	Additional features	transport wheels,welding mask included,infinitely adjustable welding current,EURO handle
