Suvirinimo inverteris IDEAL MIG 200A EURO 230V 3in1

Trumpai apie prekę

Prekė: Suvirinimo inverteris IDEAL MIG 200A EURO 230V 3in1. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: Spawarka MIG IDEAL Tecnomig 202 Synergic
• Ilgis: 455 mm
• Plotis: 170 mm
• Aukštis: 300 mm

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

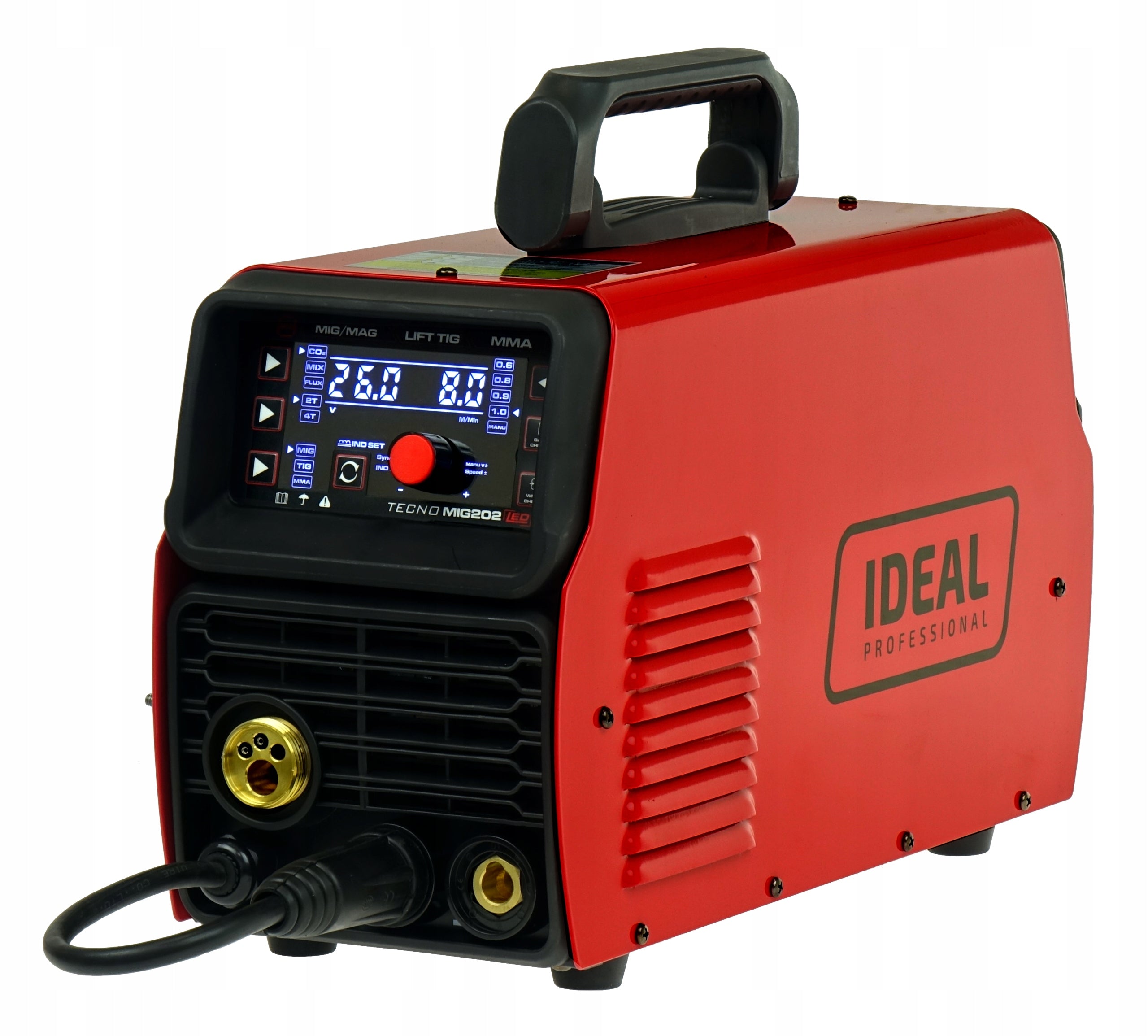

IDEAL TECNOMIG 202 LED is an inverter semi-automatic welding machine designed for arc welding

• MIG/MAG - welding with a consumable electrode in a shield of inert or active gases
• MMA - Welding with coated electrodes
• TIG LIFT - Welding using a special handle with a valve, the arc is ignited then by lightly rubbing the non-melting electrode on the welded material.
• FLUX / FCAW - Welding with self-shielding wire

The IDEAL TECNOMIG 202 LED welding machine is used for welding:

✔ low alloy steels

✔ low carbon steel

✔ alloy steels

✔ aluminum and its alloys

The device has been designed for all kinds of welding work in car workshops, locksmiths, repair shops, industrial workshops, factories, etc.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

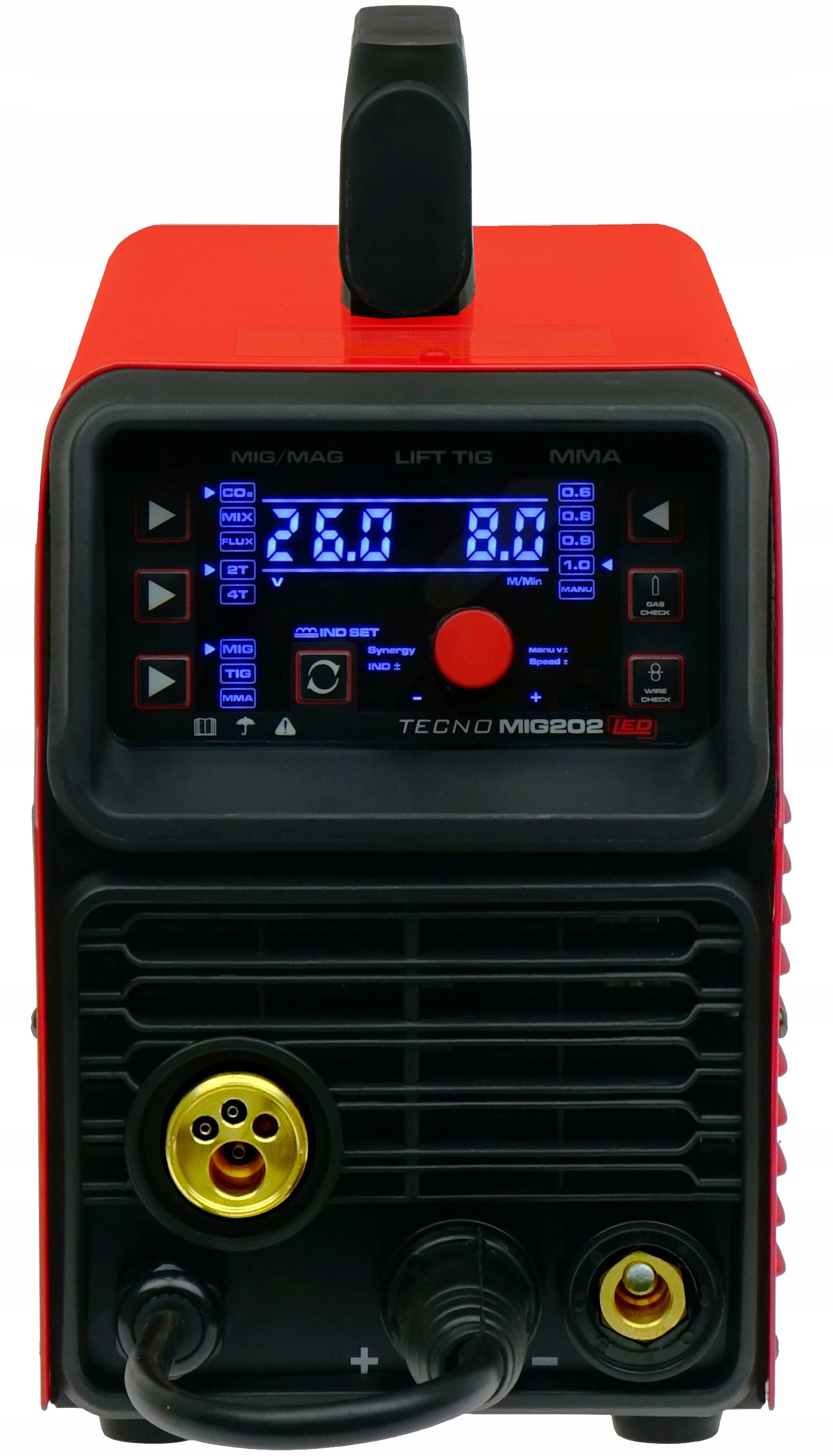

The easy-to-read LED display enables accurate adjustment of the device, even in very strong lighting.

The panel m.in. :

• Shielding gas selection section
• Welding method selection section
• Parameter adjustment potentiometer
• Wire diameter selection section
• Gas flow check button and wire access.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

⭐ SYNERGY - this is a very helpful function available in professional PREMIUM class welding devices. By setting the appropriate program or entering parameters, the device will independently select most of the welding settings, such as wire feed speed or appropriate voltage, in accordance with the programmed data.

⭐ BRAZING - a method that is quite similar to MIG / MAG welding, but the energy supplied in this case is much lower. This causes that brazing is used to connect thin sheets covered with a layer of zinc . The described method is a bonding process during which the solder is melted, not the material we are working with .

⭐ EURO CONNECTOR - allows you to quickly change the handle and allows you to change the polarity for welding with self-shielding wire.

⭐ TWO-STROKE 2T - pressing the button initiates gas flow and welding current, releasing the button turns off welding current and gas flow

⭐ FOUR-TAKT 4T - pressing and releasing the handle button initiates the gas flow and welding current, pressing and releasing the button again turns off the welding current and gas flow.

⭐ VRD - is a voltage reduction system whose task is to turn off the power within a few milliseconds after finishing welding. This function is also responsible for reducing the voltage on the covered electrode to a safe level.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

⭐ IGBT INVERTER TECHNOLOGY - is a modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field effect transistors with the high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation of welding equipment .

➡ The device is equipped with overload protection , which increases its reliability.

❄ The device has a fan cooling system , which significantly increases its efficiency.

✔ REPAIR WORKSHOPS

✔ LOCKWORKS

✔ ANY BODYWORK REPAIRS

✔ FITTER SERVICES

✔ FARMS

✔ HOMEWORK

AND WHEREVER RELIABILITY COUNTS!

EFFICIENT WORK WITH A PROFESSIONAL WIRE FEEDER

The welder has been equipped with a professional wire feeder, which guarantees the stability and continuity of operation of the device.

The 2-roll feeder enables precise advancement of the welding wire , excluding its slippage.

The feeder has a quick wire change knob as well as a wire feeding roller.

HANDLE WITH EURO CONNECTOR

The welder has a EURO socket for the MIG welding cable. The socket allows you to quickly change the handle in the same standard.

The warranty service is carried out in the door-to-door system without transport costs on the part of the user.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

Inductance adjustment allows you to optimize the arc characteristics depending on the thickness of the welded element and the welding method and conditions.

The function is useful during MIG/MAG welding of thin elements, preventing their burn-through and braze welding of galvanized elements.

The thinner the MIG/MAG welded element, the higher the inductance should be (soft arc - less penetration), for thick elements the opposite (hard arc - greater penetration).

The standard neutral inductance setting is in the middle of the scale.

Changing the inductance value also reduces the amount of welding spatter during welding in the CO2 shield.

The optimal setting of the inductance value depends on several factors and may differ from the standard recommendations, it should be selected during welding tests by manipulating the potentiometer knob.

THANKS TO THE ADJUSTMENT OF INDUCTION, THE WELDING MACHINE IS SUITABLE FOR BRAZING

☀ VERSATILITY OF THE DEVICE ☀

The IDEAL Migomat is a device with a wide range of applications, designed as an inverter power source enabling welding with a MIG/MAG gas-shielded fusible wire or FCAW self-shielding wire (after changing the polarity), welding with the MMA lagging electrode, as well as the TIG Lift method

✔ MIG/MAG welding

Gas-shielded arc welding is one of the most widely used processes for the production of welded structures. The semi-automatic welding process consists in fusing the edges of the welded object and the material of the consumable electrode with the heat of an electric arc glowing between the electrode in the form of a solid wire and the welded detail, in an inert or active gas shield.

✔ MMA welding

in the MMA method, a coated electrode is used, consisting of a metal core covered with a coating. An electric arc is generated between the end of the electrode and the material to be welded. The arc is ignited by touching the tip of the electrode to the workpiece.

✔ TIG DC welding

In the TIG (Tungsten Inert Gas) method, the electric arc is ignited in a shield of inert gas (argon), between the welded element and a non-consumable electrode made of pure tungsten or tungsten with additives. In the TIG DC Lift mode, the arc is ignited when the electrode contacts the workpiece. In TIG DC mode, the current is constant.

❗❗ You can weld with the TIG method after connecting an additional handle, available at our auctions ❗❗

✔ Welding with FCAW self-shielding wire

Thanks to the polarity reversal function, it is possible to weld without shielding gas with FCAW self-shielding wire. The wire is intended for general production works, also in field conditions, and for welding structures that are not subject to impact resistance requirements. DC(-) welding current.

Self-shielding cored wire fi 0.8mm / 1kg E71T-GS is intended for welding ordinary and high-strength carbon steels not exceeding 510 MPa .

It is used in prefabrication, construction, production of tanks, agricultural equipment , etc. Used both in the production and repair of devices.

SELF SHIELD WIRE IS AVAILABLE SEPARATELY AT OUR AUCTIONS AND IN OTHER SETS

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

MEETING CUSTOMERS, BASED ON OUR MANY YEARS OF EXPERIENCE, WE CREATE PROFESSIONAL KITS FOR YOU, THANKS TO WHICH WE SUPPLY EQUIPMENT READY FOR USE IMMEDIATELY AFTER CONNECTING TO POWER.

⌚ SAVE YOUR TIME ⌚

BUY IN A SET AND WE DO THE REST!

JOIN THE BEST - START YOUR WELDING ADVENTURE WITH US!

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

TECHNICAL DATA :

PHYSICAL PARAMETERS

• Wire spool size: 5 kg
• Degree of protection: IP 21S
• Device weight: 10 kg
• Overall dimensions LxWxH: 455x170x300 mm

TECHNICAL PARAMETERS

• Power: 6.2 kW
• Open-circuit voltage: 74V
• Current at 100% operation: 155 A
• Current at 60% operation: 200 A
• Aluminum wire diameter: 0.8 - 1.0 mm
• Self-shielding wire diameter: 0.8 - 1.0 mm
• Steel wire diameter: 0.6 - 1.0 mm
• Stainless steel wire diameter: 0.6 - 1.0 mm
• Welding electrode diameter: 1.6 - 4.0 mm
• MIG welding current adjustment range: 50 -200 A
• MMA welding current adjustment range: 10 -160 A
• TIG welding current adjustment range: 10 - 200 A

POWER PARAMETERS

• Mains protection: 25 A slow-acting (type C)
• Rated supply voltage: 230 V; 50Hz (1ph)

ADDITIONAL FEATURES

• SYNERGY: YES
• BRAZING: YES
• 2T/4T FUNCTION: YES
• VRD FUNCTION: YES
• INDUCTION: YES
• FLUX: YES
• TIG Lift: YES

BY BUYING FROM US YOU WILL RECEIVE:

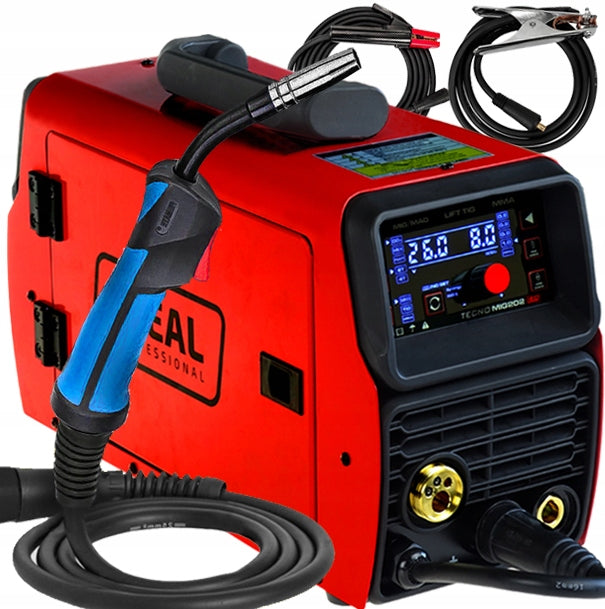

• INVERTER WELDING MACHINE TECNOMIG 202 LED
• WELDING CABLE MIG EURO MB15 - 3 m
• MMA ELECTRODE CABLE - 2.5 m
• GROUND CABLE - 2.5 m
• MANUAL IN POLISH LANGUAGE
• WARRANTY CARD

SET 1

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	6.5 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	40%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	10 kg
Parametry	Welding range	30–200 A
Parametry	Height	300 mm
Parametry	Length	455 mm
Parametry	Width	170 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	15 kg
Parametry	Manufacturer code	Spawarka MIG IDEAL Tecnomig 202 Synergic
Parametry	EAN (GTIN)	5903991101976
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
